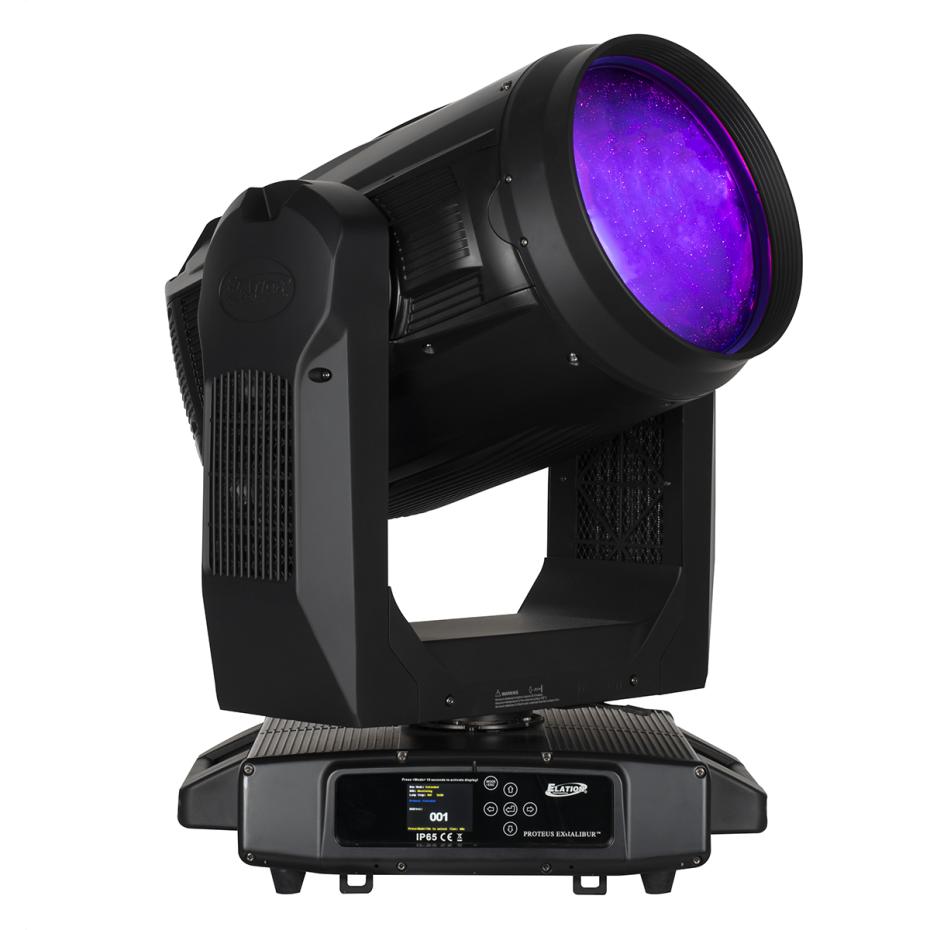

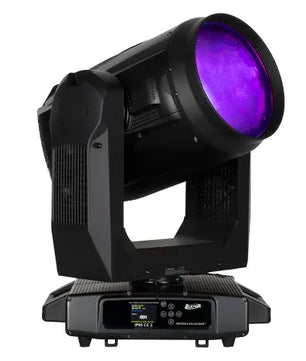

Elation PROTEUS Excalibur

PROTEUS Excalibur
New! SKU# PRE937
Specifications Sheet  DMX Traits
The Proteus Excalibur is the newest member in the industry leading Proteus range of IP65 automated fixtures from Elation Professional. Excalibur is the brightest IP65 fully featured beam fixture ever created with incredible light output from a surprisingly compact fixture body. Rivaling existing Xenon searchlights and sky trackers, the extremely narrow 0.8° Beam ensures the fixture cuts effortlessly through the sky and is visible at great distances. The intense beam of the Proteus Excalibur projects from the ultra-wide 260mm front Lens as a massive column of light that stuns the audience.

A wide array of gobos and prism overlays allow animating the sky, and with its incredible light intensity all CMY colors remain strong and vibrant even when fully saturated. Beam control is provided through a precise internal focus lens, providing crisp projection without optical errors. Dual variable frosts allow to soften the beam when required. A remote-controlled Expander lens allows widening the beam to approximately 3.5 degrees. The fixture is ideally suited for theme parks, cruise ships, outdoor special events, large scale shows and concerts, and any situation where a massive beam or very powerful prism and flower effects are required. With its compact size and low power consumption the Proteus Excalibur can be utilized in almost any application.

Features
Powerful 0.8° Beam Angle
3.5° Beam Expander
CMY Color Mix
Dual overlapping prisms
Ultra-wide 260mm / 10" Front Lens
IP65 rating protects from water and dirt
4000h Long Life 550W Lamp

Specifications
SOURCE
Philips MSD Platinum 500 Flex 550W Lamp

Variable Lamp Power

Automated Lamp Hibernation with Instant Recovery

Up to 4,000 Hour Lamp Life*

*Test lab conditions. May vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling),Control, and Dimming.


PHOTOMETRIC DATA

0.8° Beam Angle

1.6° Field Angle

3.5° Beam Expander Lens

20,000 Total Lumen Output
7000K. CRI 77+

335000 LUX @15m (31100 fc @ 49ft)
7500 LUX @100m (700 fc @ 330ft)



EFFECTS

Beam Expander
Focus

Dual Rotating Prisms and Prism Macros

Dual Frost Filter Hybrid Wash Effect

High Speed Mechanical Shutter and Strobe


COLOR
14 Dichroic Colors Including CTO and UV
Full CMY Color Mixing


GOBOS
8 Interchangeable Rotating / Indexing Glass Gobos
17 Static-Stamped Metal Gobos


CONTROL / CONNECTIONS
Single DMX Mode (26ch.)

16-bit Pan, Tilt, and Dimming Control

Motorized Focus

DMX, RDM, Art-NET, and sACN Protocol Support

6 Button Touch Control Panel

Full Color 180° Reversible LCD Menu Display

Hibernation Mode (Power Save)

IP65 5pin DMX In/Out

IP65 RJ45 etherCON In/Out

Locking IP65 Power In


SIZE / WEIGHT
Length: 19.4" (493mm)

Width: 15.1" (383mm)

Vertical Height: 27.4" (697mm)

Weight: 108lbs (49kg)


ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
800W Max Power Consumption
14°F to 113°F (-10°C to 45°C)


APPROVALS / RATINGS
CE | cETLus | IP65 | FCC | UKCA



FIRMWARE UPDATES

Current Version: V1.5.1
