Elation Pixel Driver 170

$69.50

Order within [hour] to get by [date_end]

Quantity

Call For More Details

Call us at 123-456-7890

Guarantee Safe
Checkout

trust_2dea69ed-7223-44f3-828d-a80bc0f3aef4

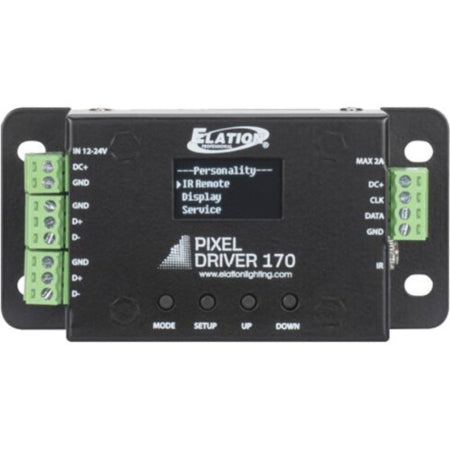

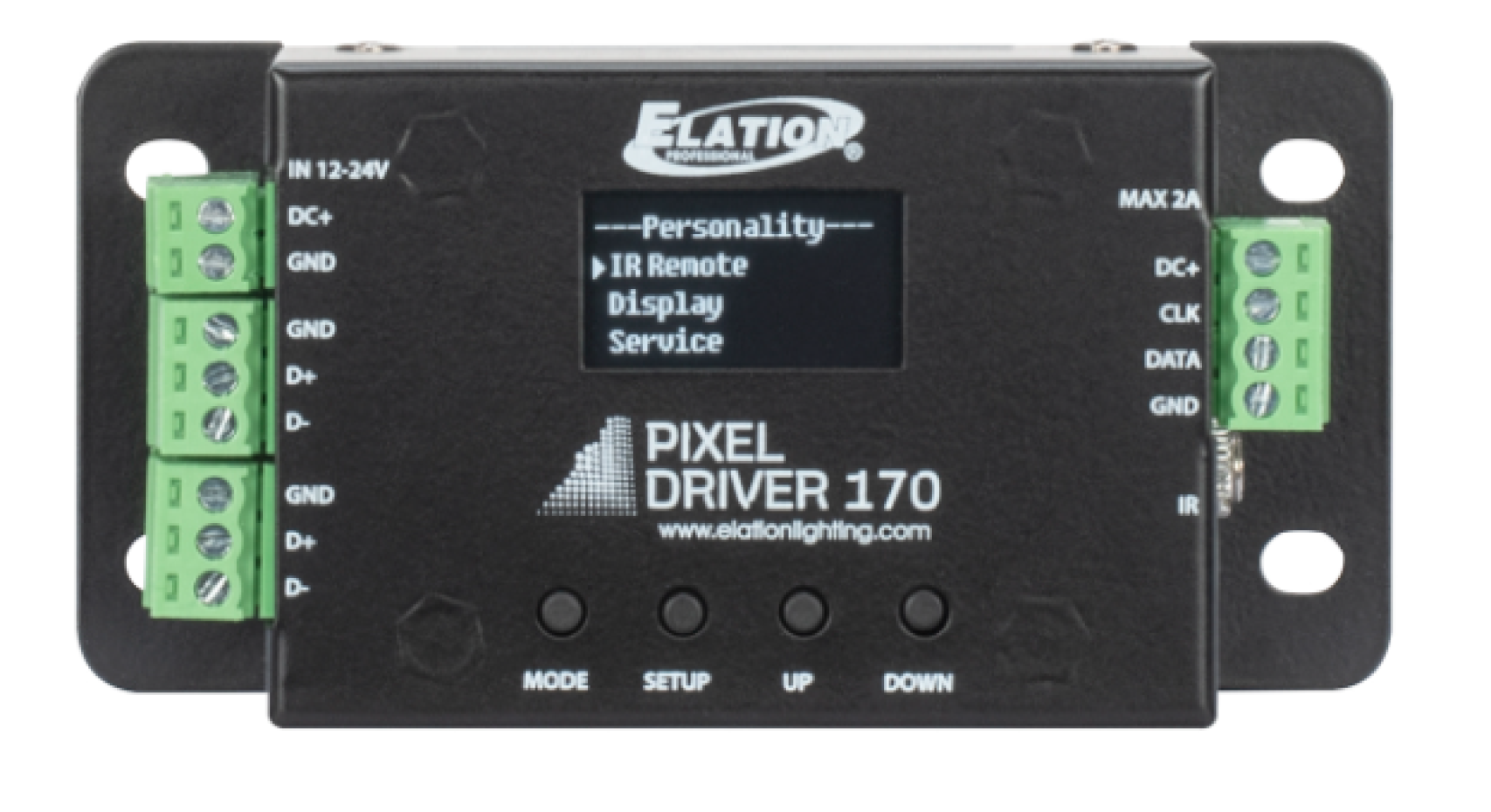

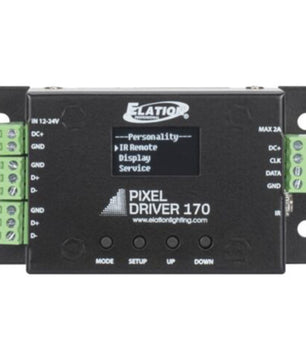

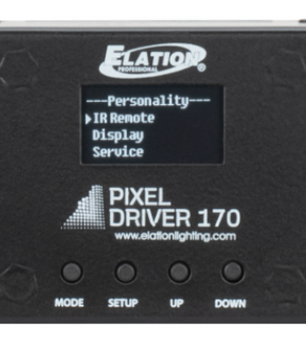

Pixel Driver 170 is a professional tape driver specifically designed for the Elation Pixel Tape 16IP and Pixel Tape 40IP. This driver provides simple and easy control options including a 3-button OLED Display, EL IR Remote (included), and one full universe of DMX control (170 pixels). The Pixel Driver 170 features an easy-to-use OLED display, Pixel grouping, separate 3pin terminal blocks for DMX IN and OUT, a 4pin terminal block for LED tape output, and a 2pin terminal block for 12-24VDC power IN. The unit also includes one PIX-AD3 adapter to connect between LED tape out and Pixel Tape 16IP & Pixel Tape 40IP.

The Pixel Driver 170 is a professional DMX512, 12-24VDC LED tape driver that supports up to one full universe of DMX (170 pixels). Its small compact design allows for easy mounting and integration into any system. It features a 3-button LED control display, separate 3pin terminal blocks for DMX IN and OUT, a 4pin terminal block for LED tape output, and a 2pin terminal block for 12-24VDC power IN.

CONTROL / CONNECTIONS
3-Button OLED Display
1 DMX Universe (170 Pixels)
EL IR Remote (Included)
DMX Input via 3pin Phoenix connector block
DMX Output via 3pin Phoenix connector block
LED Tape Out via 4pin Phoenix connector block

SIZE / WEIGHT
Length: 3.98” (101mm)
Width: 1.97” (50mm)
Height: 1.03” (26.2mm)
Weight: 0.29lbs (0.133kgs)

ELECTRICAL
DC Input 12-24VDC, 2A (Requires separate power supply)
48W Max Power Consumption

APPROVALS / RATING
CE | cETL | RoHs
IP20
