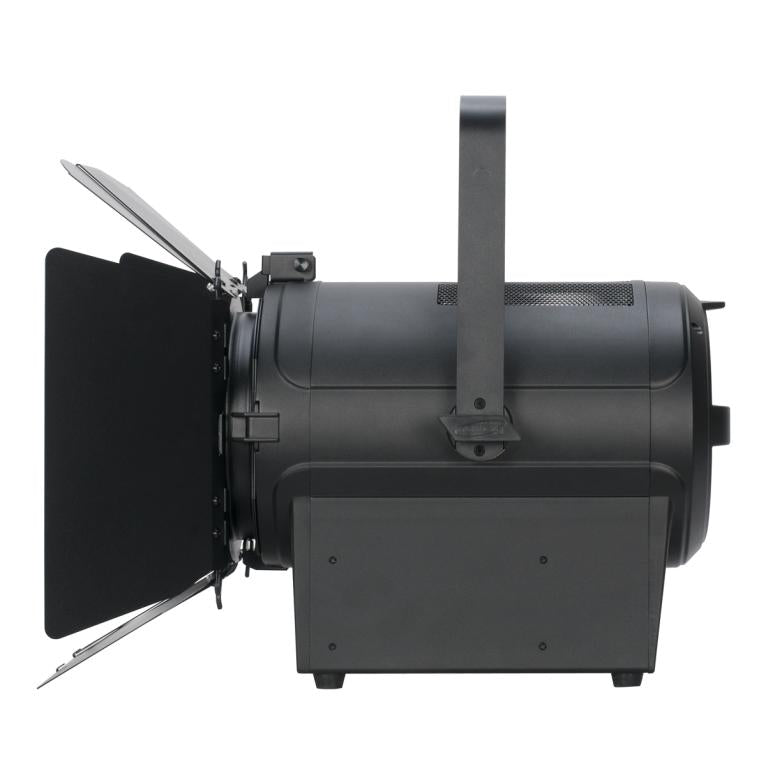

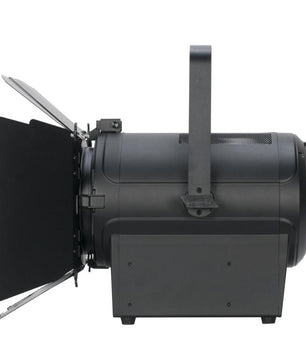

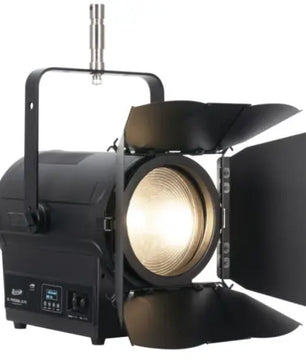

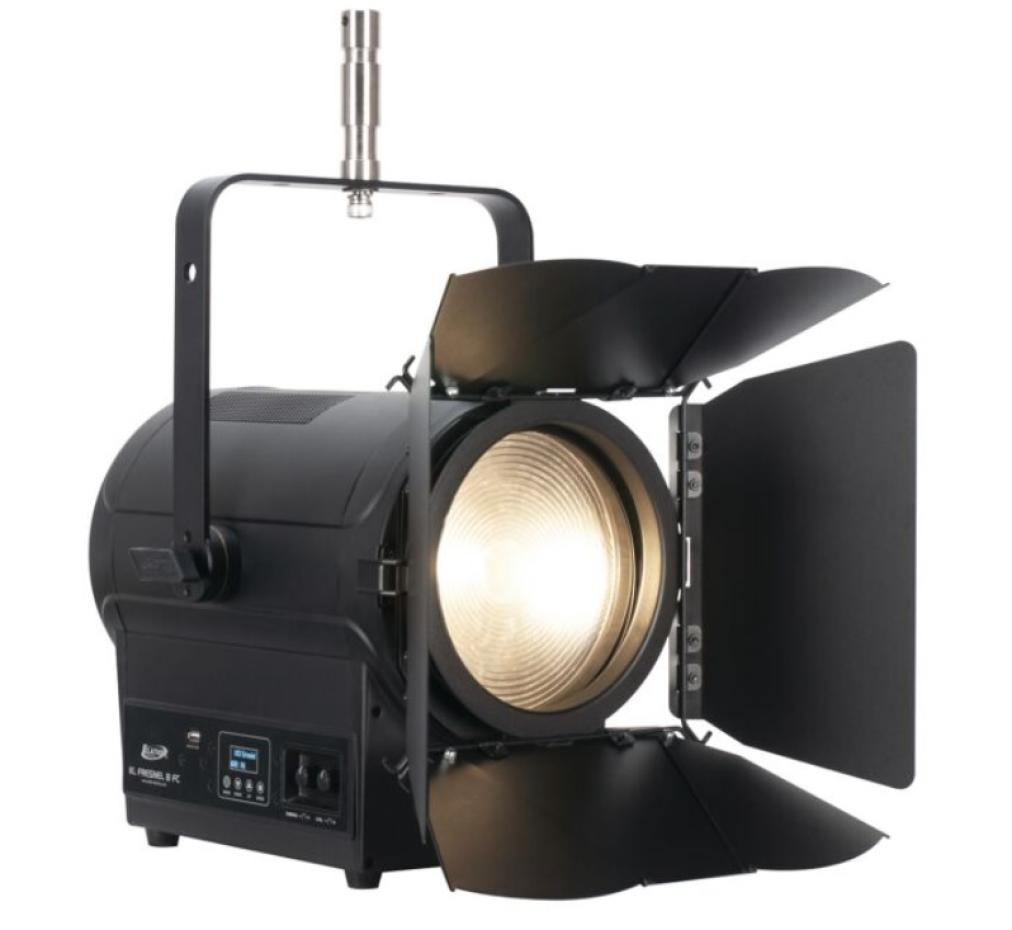

Elation KL Fresnel 8 FC | 500W RGBMA, 10-50 Degrees | Full-Color LED Fresnel with Manual Zoom & High CRI

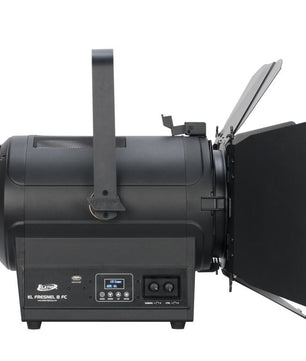

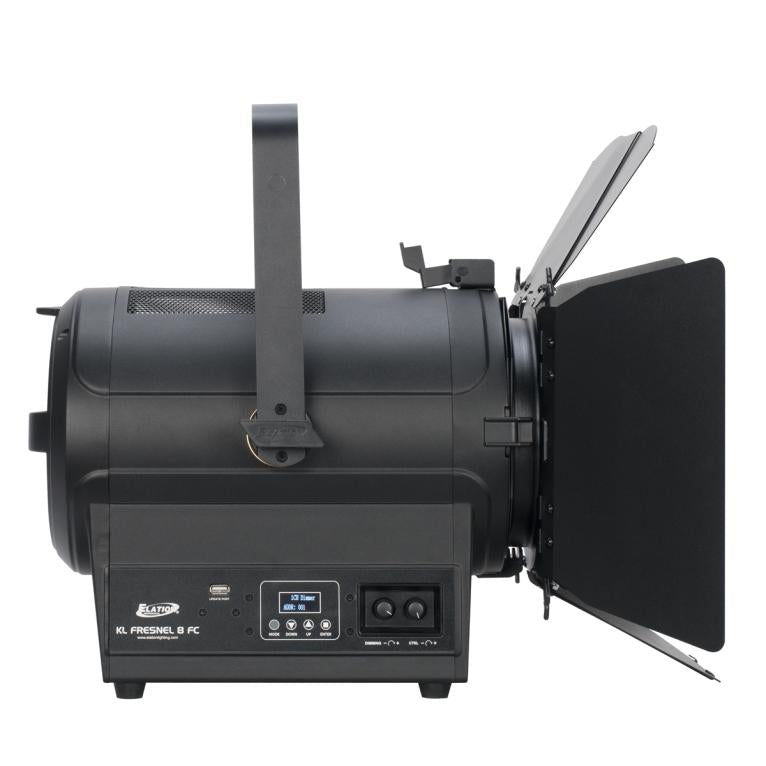

KL Fresnel 8 FC
SKU# KLF832

The KL Fresnel 8 FC™ is a full-color-spectrum LED fixture that provides high output, precise color temperature control, full spectrum color rendering and even wash coverage.
Optimized for the tunable white light requirements of Film and Television, it is an ideal key and fill light source for many situations requiring outstanding performance and color quality, while offering a wide array of rich saturated colors and subtle pastels.
The KL Fresnel 8 FC incorporates a highly efficient 5-in-1 (RGBMA) LED engine that produces over 18,000 field lumens with a motorized Zoom range of 10° to 50°.
Outstanding color rendering quality, precise CCT presets and remotely adjustable LED refresh frequency makes this unit the perfect choice for todays fast paced production environments. Rugged and portable, the fixture can be mounted on a stand or suspended using any standard clamp or the included Junior pin adapter. It is fully self-contained without the need for an external power supply and offers locking power pass through for easy linking of multiple units.
The KL Fresnel 8 FC can be operated through industry standard DMX protocols and has full RDM support. In addition, it offers manual access using the included encoders and display, providing instant control of Zoom, Intensity, Color temperature, Green shift and other important settings. The display and encoders are conveniently positioned at the bottom side of the fixture to ensure unobstructed access while mounted on a stand.

Features
RGBMA LED Engine
Dynamic White + Full Spectrum Color Control
18,000+ Total Fixture Lumen Output
10° to 50° Wide Motorized Zoom
Stand-Alone control with 2 Encoders and LED Display
Smooth 16-bit Selectable Dimming Modes and Curves
LED Refresh Rate Adjustment
Flicker Free Operation for TV and FILM
RDM (Remote Device Management)
8-leaf Barn Doors, Gel Frame and Junior Pin (1 1/8” - 28mm) included


Specifications
SOURCE
6500K RGBMA LED Engine
50,000 Hour Average LED Life*
*May vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control and Dimming.

PHOTOMETRIC DATA
18,000+ Total Lumen Output
CRI 92
TLCI 95
Zoom Range 10° - 50°
Beam Angle 10.5° - 49.9°
Field Angle 21° - 66.6°

EFFECTS
Motorized Zoom
Electronic Dimmer and Strobe
Variable 16-bit Dimming Modes and Curves

COLOR
RGBMA Color Array
CMY Emulation
Variable CCT 2,400K - 8,500K
Green/Magenta Shift
Virtual Gel Swatch Book


CONTROL / CONNECTIONS

6 DMX Channel Modes (1 to 18 channels)
Manual and DMX Controlled Dimmer, Color and Zoom
Dual Rotary Dials
4 Button Control Panel, LED Display
RDM (Remote Device Management)

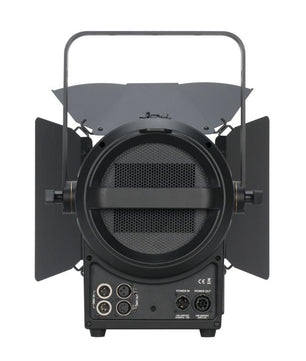

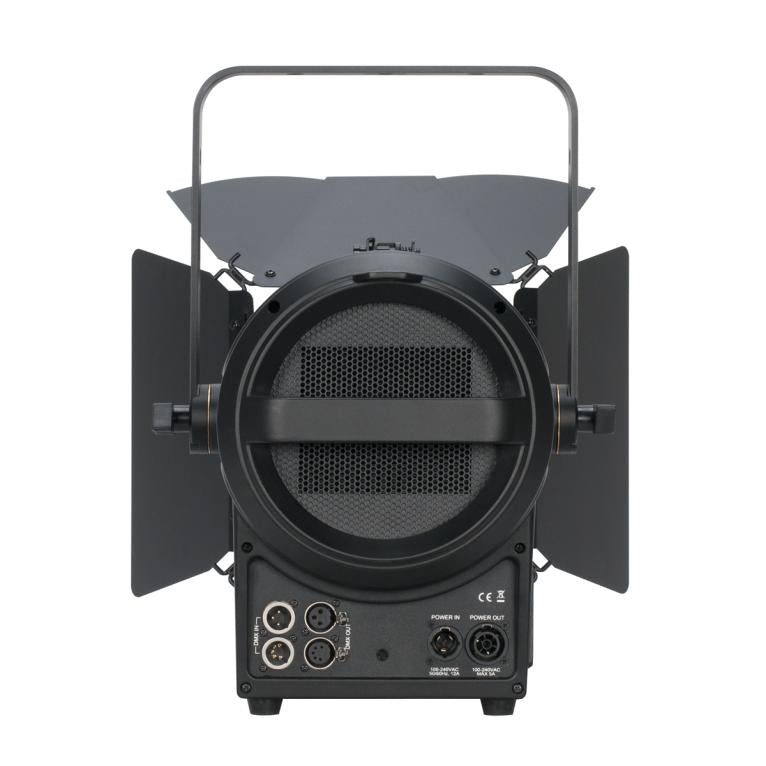

3/5pin DMX and IP65 Locking Power Cable In/Out

SIZE / WEIGHT
Length: 15.1” (382.5mm)
Width: 12.9” (326.5mm)
Vertical Height: 17.9” (455mm)
Weight: 23.15 lbs. (10.5kg)

ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
514W Max Power Consumption
5°F to 113°F (-15°C to 45°C)


INCLUDED ITEMS

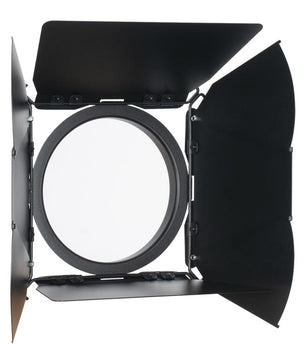

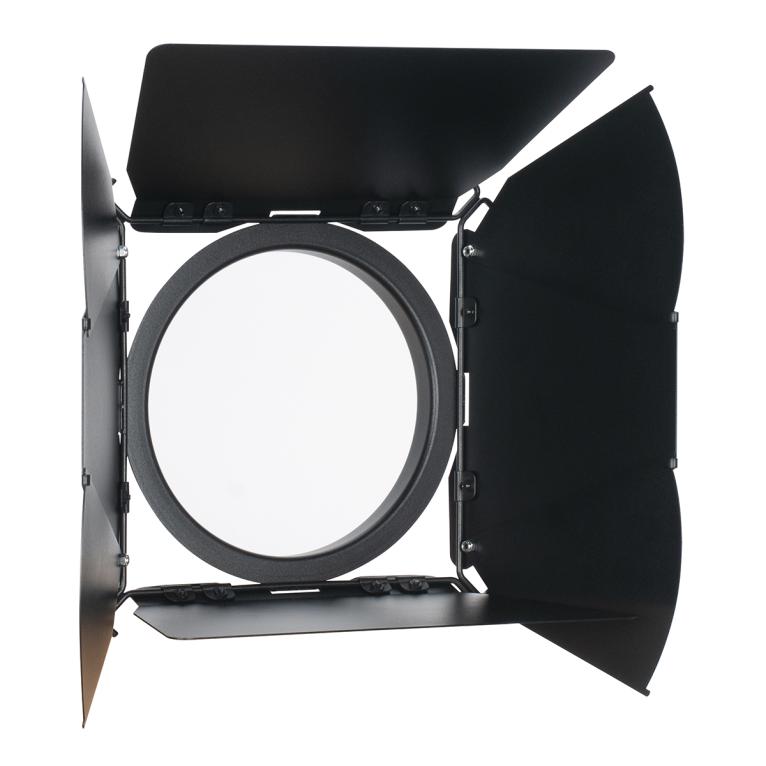

Gel Frame and Rotating 8-leaf Barn Doors
Junior Pin (1 1/8"  - 28mm)
IP65 Locking Power Cable


APPROVALS / RATINGS
(pending) CE | cETLus | IP30
