Elation KL Fresnel 6 FC | 220W RGBMA LED, 10-32 Degrees

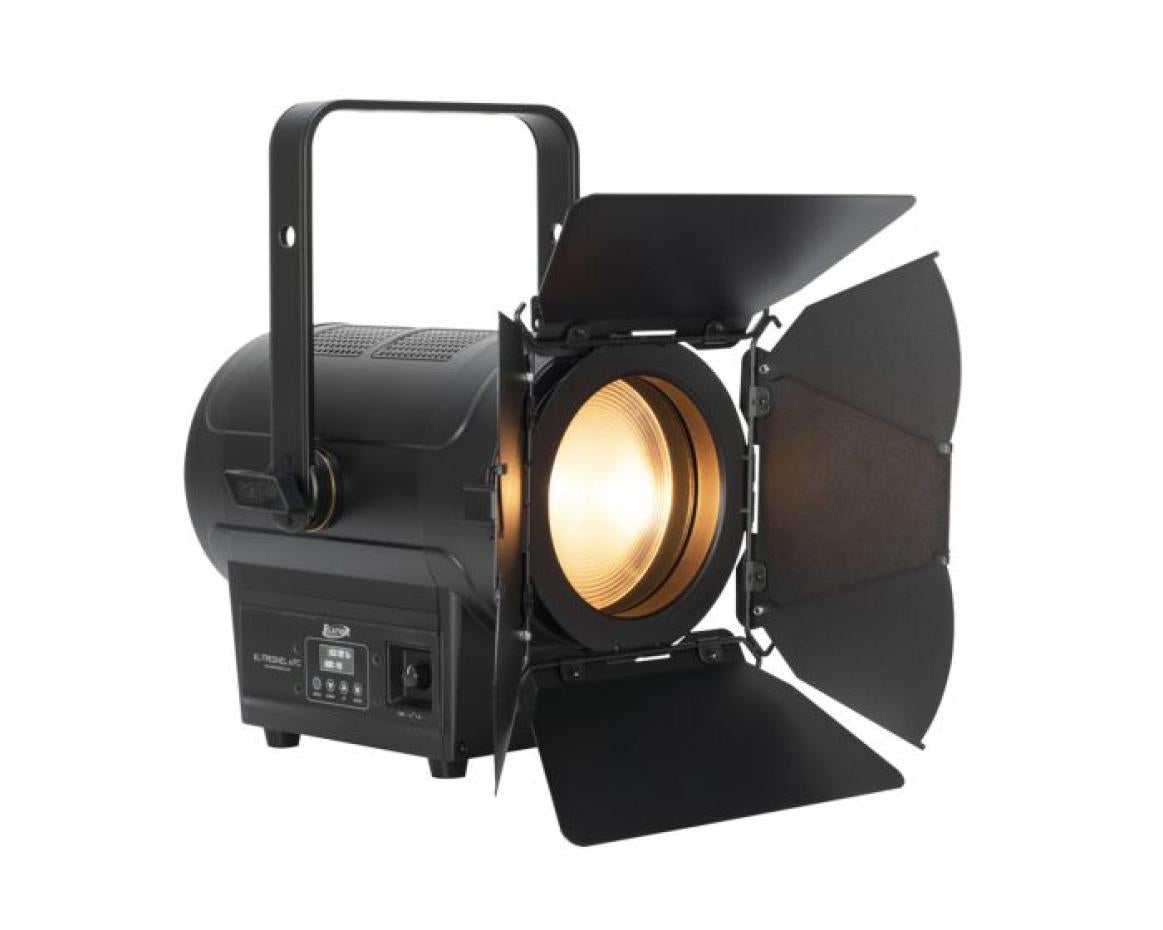

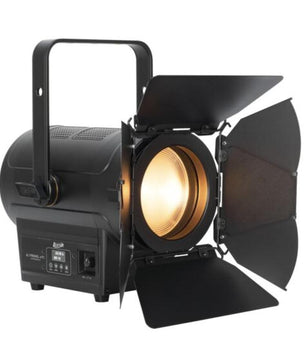

Elation KL Fresnel 6 FC

The Elation KL Fresnel 6 FC is a full-color LED Fresnel fixture designed for a wide range of professional lighting applications. With its advanced LED engine and precision optics, this fixture delivers exceptional color rendering and versatile lighting capabilities, making it ideal for theaters, broadcast studios, and live events. The KL Fresnel 6 FC offers a comprehensive set of features and control options to meet the demands of any lighting designer.

Key Features

• Brand: Elation
• Model: KL Fresnel 6 FC
• 305W RGBMA LED Engine
• High CRI for accurate color rendering
• Motorized Zoom: 10° to 32°
• Variable Color Temperature: 2,400K - 8,500K
• Multiple control options, including DMX and RDM
• Robust and durable construction

Competitive Differences

• High CRI for superior color accuracy
• Wide motorized zoom range for versatile lighting
• Robust build quality for reliable performance

Product Description

The Elation KL Fresnel 6 FC is a cutting-edge LED Fresnel fixture that combines a full-color LED engine with precision optics to deliver stunning lighting effects. With advanced color mixing and dimming capabilities, this fixture ensures accurate color reproduction and smooth fades, making it perfect for professional lighting applications. The high CRI ensures that colors are rendered faithfully, while the variable color temperature allows for customization to suit different environments. The KL Fresnel 6 FC offers multiple control options, including DMX and RDM, providing flexibility and ease of use for lighting designers. Built with durability in mind, this fixture is designed to withstand the rigors of professional use, ensuring reliable performance in any setting.

Photometric Data

• 13,000 Total Lumen Output
• CRI: 92
• Motorized Zoom Range: 10° - 32°
• Beam Angle: 10° - 32°
• Field Angle: 10.8° - 41.5°

Specifications

• Source: 305W RGBMA LED Engine
• 30,000 Hour Average LED Life*
• Variable Color Temperature: 2,400K - 8,500K
• Control Protocol: DMX, RDM
• Power Consumption: 353W maximum
• Dimensions: 18.4 x 14.8 x 18.0 in (468 x 375 x 457 mm)
• Weight: 25.4 lbs (11.5 kg)

*Test lab conditions. May vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.

Control / Connections

• 8 DMX Channel Modes (1/5/12/21) CMY(10/17) RGB(10/17)
• DMX Adjustable LED Frequency
• DMX, RDM Protocol Support
• 4 Button Touch Control Panel
• Encoder Control for Standalone Operation
• Full Color 180° Reversible LCD Menu Display
• 5pin DMX In/Out
• IP65 Locking Power In/Out
• Elation’s E-FLY™ Internal Wireless DMX Transceiver

Electrical / Thermal

• AC 100-240V - 50/60Hz
• 353W Max Power Consumption
• 14°F to 113°F (-10°C to 45°C)
• BTU/hr (+/- 10%): 1203.8

Approvals / Ratings

• CE
• cETLus
• IP20

Optional Accessories

• #8050000053 - Omega Bracket

What's in the Box

• Elation KL Fresnel 6 FC
• User manual

Accessories

• Clamps and mounting hardware
• Protective cases
• DMX controllers
• Additional power cables
