Elation KL FRESNEL 4

$659.00

Order within [hour] to get by [date_end]

Quantity

Call For More Details

Call us at 123-456-7890

Guarantee Safe
Checkout

trust_2dea69ed-7223-44f3-828d-a80bc0f3aef4

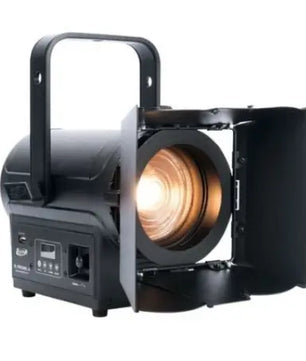

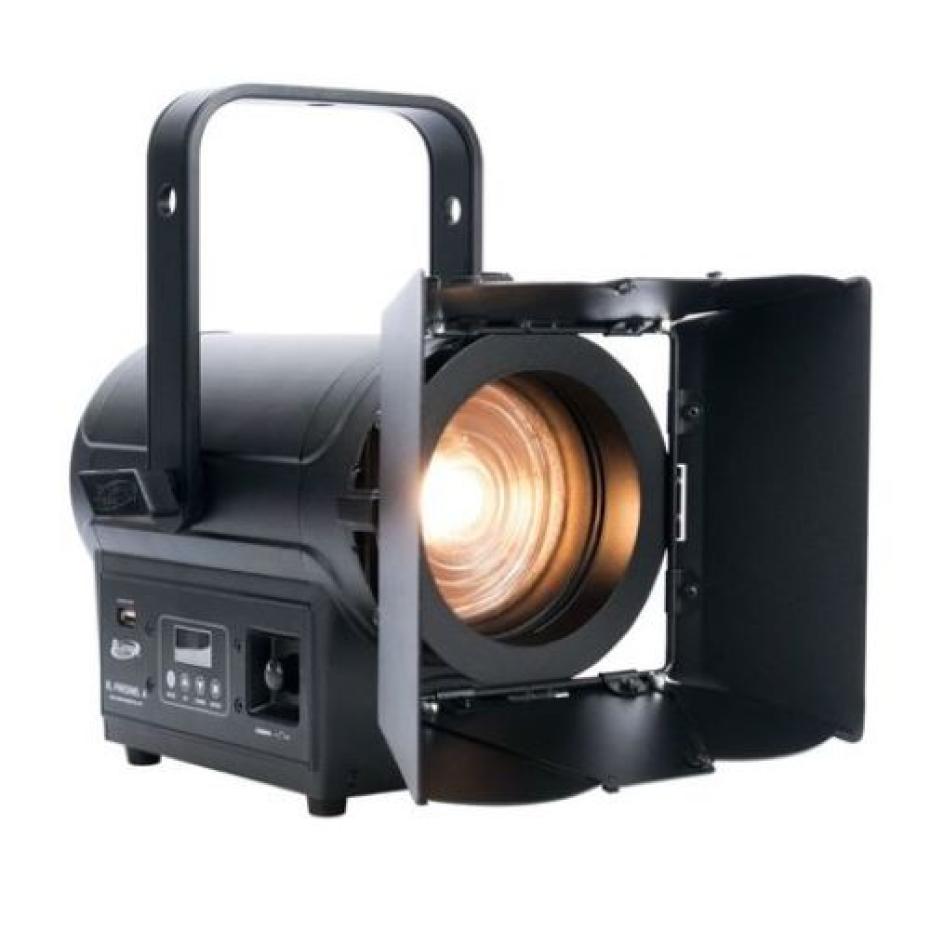

The KL FRESNEL 4™ from Elation Pro is a 50 W 3,000K >97 CRI Warm White LED fresnel, genrating an output of over 1,900 total lumens—on par with compatible tungsten halogen models. Its features include 14° to 30° wide manual zoom, manual and DMX-controlled shutter and dimmer, dimmer and zoom rotary dials, smooth 16-bit selectable dimming curve modes, adjustable LED refresh frequency rate and gamma brightness providing flicker-free operation for use in TV and FILM. It also comes with RDM (remote device management) protocol support, 5-pin DMX and powerCON® in/out (I/O) connections, a LCD menu display, a 4-button control panel, multiple-unit power-linking functionality, a universal auto-switching power supply (100-240V), included gel frame and rotating barn doors, plus a 3-clamp position-adjustable mounting yoke.

Includes:
KL FRESNEL 4 fixture
Gel frame and rotating barn doors
powerCON TRUE1 power cable
Barn doors and fixture safety cables

Features:
50 W 3,000K >97CRI Warm White LED engine
1,900+ Total lumens output
14° to 30° wide manual zoom
Manual and DMX controlled dimmer and shutter
Dimmer and zoom rotary dials
Smooth 16-bit selectable dimming curve modes
LED refresh rate and gamma brightness adjustment
Flicker-free operation for TV and FILM
RDM (remote device management)
Gel frame and rotating barn doors (included)
3-clamp position adjustable mounting yoke

Specifications:
Source:
50 W 97CRI 3,000K Cool White LED
50,000 hour average LED life (*Note: may vary depending on environment, power/voltage, usage patterns, control and dimming)
Photometric Data:
1,900+ Total Lumen Output
6,837 LUX 635 FC @6.6 ft (2m) (14° Full ON)
1,791 LUX 166 FC @6.6 ft (2m) (30° Full ON)
Effects:
14° to 30° manual zoom
Electronic strobe
Variable 16-bit dimming curve modes
Color: Warm White 3,000K
Control/Connections:
Manual and DMX controlled dimmer and shutter
Dimmer and zoom rotary dials
(5) DMX channel modes (1/2/3/4/5)
4-button control panel
LCD menu display
RDM (remote device management)
5-pin DMX and powerCON TRUE1 In/Out
Dimensions (L x W x H): 13.6" x 7.9" x 11.4" (345 x 201 x 289mm)
Weight: 9 lbs. (4.08 kg)
Electrical/Thermal:
AC 100-240 V - 50/60 Hz
50 W Max power consumption
Multiple unit power linking
5 °F to 113 °F (-15 °C to 45 °C)
