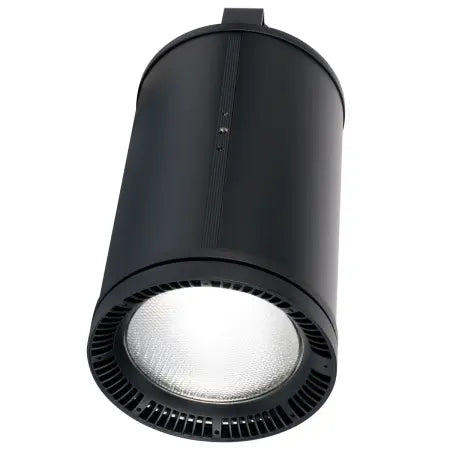

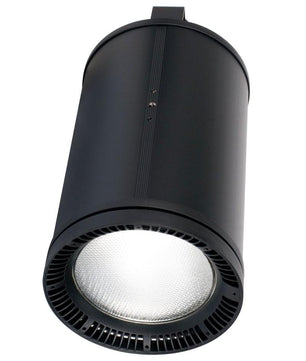

Elation Fuze Pendant | RGBWL LED House Light | Theatrical-Grade Pendant Fixture with High CRI

The FUZE PENDANT™ provides powerful illumination for a variety of house and area lighting applications. Crisp whites with a high CRI, plus subtle pastels and powerful pure colors with 16-bit dimming, allow for a wide range of smooth illumination and dynamic effects for any environment. At up to 11,000 lumens, the FUZE PENDANT is ideal for large areas and high-ceiling applications yet is compact enough to be adaptable to smaller spaces.
Pendant and optional yoke or recessed ceiling options provide flexibility when finding the ideal mounting position and a variety of lens choices (45° included, 25°, 40° or 50° optional) allow for precise light distribution. Industry standard power and DMX connections, plus included terminal block connections for power, emergency battery input and 0-10V control, support multiple permanent or temporary install requirements with a single product design.

Features
Full Spectrum 230W 5in1 LED Array
2,400 - 8,500K Color Temperature
CRI 90 @ 3,200K
11,000 Total Lumen Fixture Output
45° Lens Included
Optional 25°, 40°, and 50° Lens Available
Compact Fanless Design
DMX, RDM, 0-10V and E-FLY Wireless Support
48V Emergency Battery Input
Bare Wire Block Terminal Connections (connectors included)

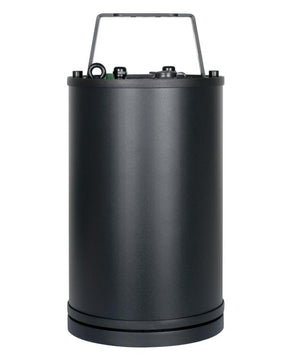

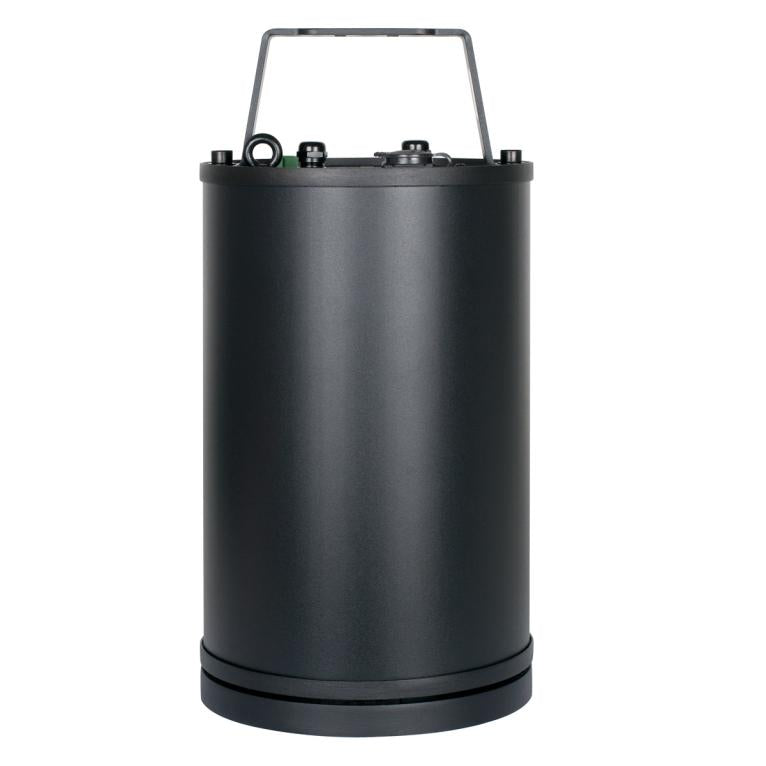

Pendant Bracket (included)
Optional Yoke or Recessed Ceiling Mount Kits Available
Optional Half and Full Snoot Kits Available

Specifications:
SOURCE
230W 5-in-1 RGBWL (Red, Green, Blue, White, LimeLED Array
50,000 Hour Average LED Life*
*Test lab conditions. May vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.

PHOTOMETRIC DATA
11,000 Total Lumen Fixture Output
CRI 90 @ 3,200K
45° Lens Included

EFFECTS
Color Temperature Control 2,400K - 8,500K
Virtual Color Swatch Book
Dimmer, RGB, RGBWL and HSI Control Options
Variable 16-bit Dimming Curves
High Speed Electronic Shutter and Strobe
DMX and Menu adjustable LED Refresh Rate Frequency

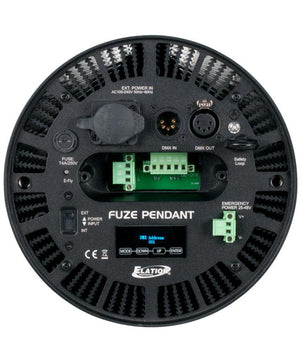

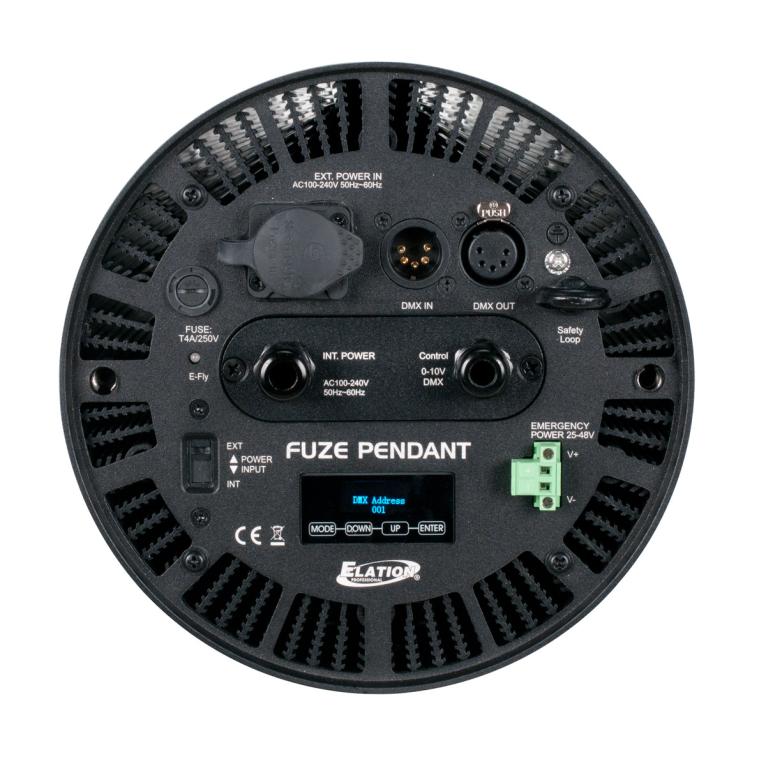

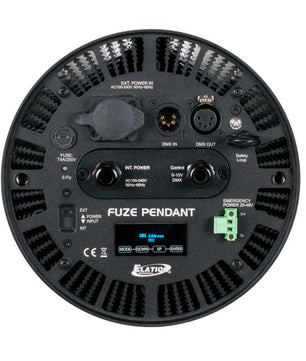

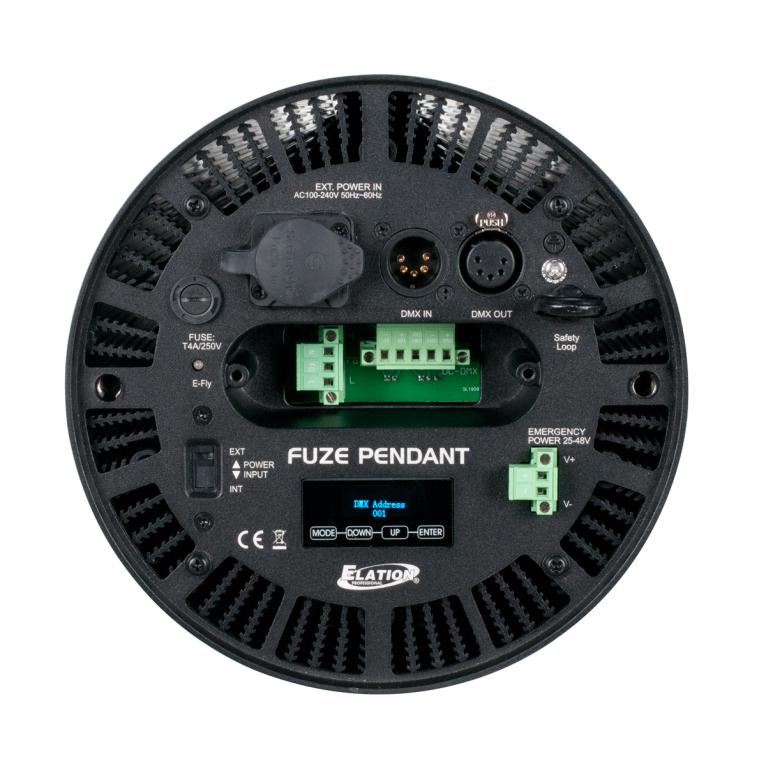

CONTROL / CONNECTIONS
4 DMX Channel Modes
Standalone and Master Slave Modes
RDM (Remote Device Management)
0-10V Dimming (Current-Sink)
E-FLY™ Internal Extended Range Wireless DMX Transceiver
4 Button Control Panel and OLED Menu Display
Locking 5pin XLR Connector In/Out
Locking IP65 Power Connector In
3pin Bare Wire Terminal Block for Power
5pin Bare WireTerminal Block for 0-10V, DMX
2pin Bare Wire Terminal Block for 48V Emergency Battery Input

SIZE / WEIGHT
Length: 12.5" (318mm)
Diameter: 7.8" (197mm
Weight: 15.8lbs. (7.2 kg)

ELECTRICAL / THERMAL
AC 100-277V - 50/60Hz
Max Power Consumption 230W
14°F to 113°F (-10°C to 45°C)

APPROVALS / RATINGS
CE | cETLus (pending) | IP20

OPTIONAL ACCESSORIES:
FPL25- 25° Lens
FPL40- 40° Lens
FPL50- 50° Lens
FPCMK- Ceiling Mount Kit
FPYMK- Yoke Mount Kit
FPHS- Half Snoot
FPFS- Full Snoot
