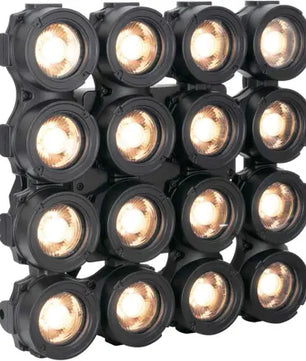

Elation CUEPIX 16IP DTW

$1,160.00

Order within [hour] to get by [date_end]

Quantity

Call For More Details

Call us at 123-456-7890

Guarantee Safe
Checkout

trust_2dea69ed-7223-44f3-828d-a80bc0f3aef4

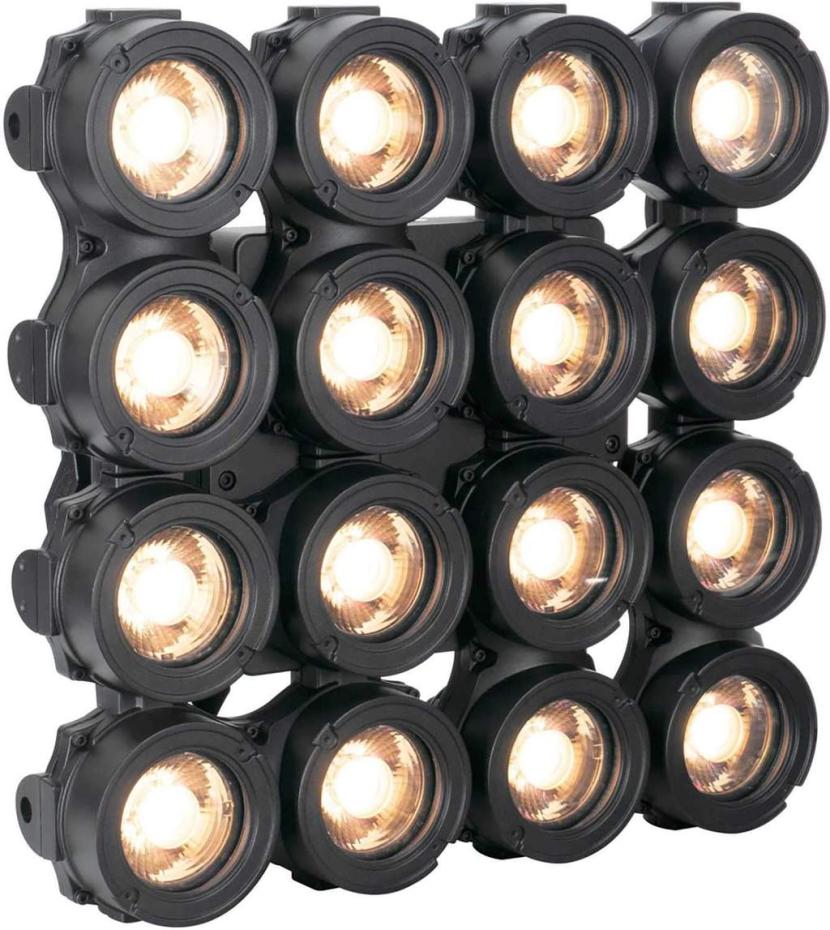

The CUEPIX 16IP DTW™ is a powerful IP65 outdoor rated effect panel luminaire that features a 4x4 array of 16x40W DTW COB LEDs, full pixel control and 16-bit dimming, variable dimming curve modes, high speed electronic shutter and strobe, adjustable LED refresh rate and gamma brightness for flicker free operation for TV and FILM, no fans for noise-sensitive applications, DMX, RDM (Remote Device Management), Kling-NET, and Art-NET protocol support, IP65 rated locking 5pin XLR DMX, RJ45 ethernet, and power in/out connections, full color 180° reversible LCD control panel, and a multi-voltage universal auto switching power supply (100-240v).

Versatile rigging options include 90° adjustable and fixed yoke brackets with 3-position mounting holes, and integrated alignment pins and interlocks for multiple panel matrix designs. Optional ¼ turn omega brackets available.

Features:
Versatile IP65 Outdoor Rated Effect Panel Luminaire
4x4 Matrix Array of 16 40W DTW COB LEDs
Full Pixel Control with Pixel Flip Modes
16-bit Dimming and Variable Dimming Curve Modes
Convection Cooled - No Fans for Noise-Sensitive Applications
90° Adjustable and Fixed Yoke Brackets w/3-Position Holes
Integrated Fixture-to-Fixture Interlocking Alignment Pins/Locks
Optional 1/4 Turn Omega Brackets Available

Specifications:
SOURCE
16 40W 4-IN-1 DTW COB LEDs
50,000 Hour Average LED Life*
*Test lab conditions. May vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.

PHOTOMETRIC DATA (pending)

EFFECTS
Full Pixel Control with Pixel Flip Modes
High Speed Electronic Shutter and Strobe
16-Bit Dimming and Variable Dimming Curve Modes

COLOR
DTW

CONTROL / CONNECTIONS
7 DMX Channel Modes (64 total channels)
Adjustable Refresh Rate (900-25,000 (Hz)
4 Button OLED Menu Control Display
DMX, RDM, and Art-Net Protocol Support
IP65 Locking 5pin XLR DMX, RJ45 Ethernet, Power In/Out
Fixture-to-Fixture Interlocking Alignment Pins/Locks
With Wired Digital Communication Network

SIZE / WEIGHT
Length: 17.32” (440mm)
Width: 8.1” (207mm)
Vertical Height: 17.31” (440mm)
Weight: 33.0 lbs. (15.0 kg)

ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
400W Max Power Consumption
14°F to 113°F (-10°C to 45°C)

APPROVALS / RATINGS
CE | cETLus | IP65
