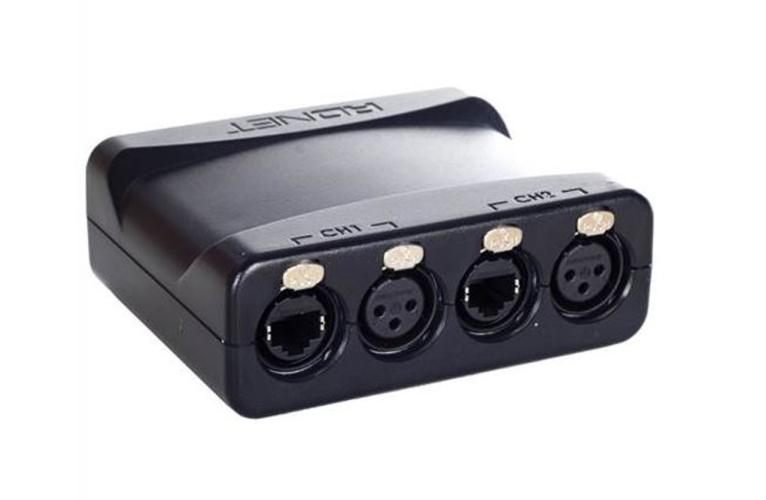

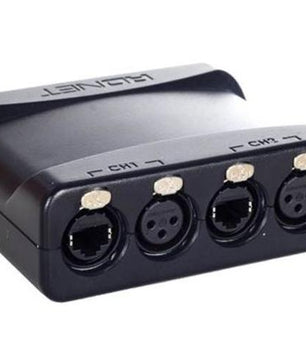

dB Tech RDNET Control 2

RDNET CONTROL 2 is a hardware interface to connect dB Technologies RDNET compatible devices (DVA T12,T8, DVA S30N,etc.), to a Personal Computer (PC) by means of an USB connection.

The RDNET system was purposely developed to create a data network for monitoring and command of more systems. The RDNET CONTROL 2 unit can manage up to 2 subnets. Up to 32 devices can be connected to each subnet (2 subnets x 32 = total 64 devices).

The addressing of the various devices is handled automatically by RDNET CONTROL 2 interface. Each device is assigned a unique address during the power on procedure of network.

FEATURES:

Hardware interface to connect RDNET compatible devices to a PC via a USB connection
Developed to create a data network for monitoring and commanding more systems
Unit can manage up to 2 subnets (up to 64 total devices)
Control interface automatically handles various devices

SPECIFICATIONS:

Network
Standard EIA RS-485
Up to 2 managed subnet
Max 32 devices connected to each subnet

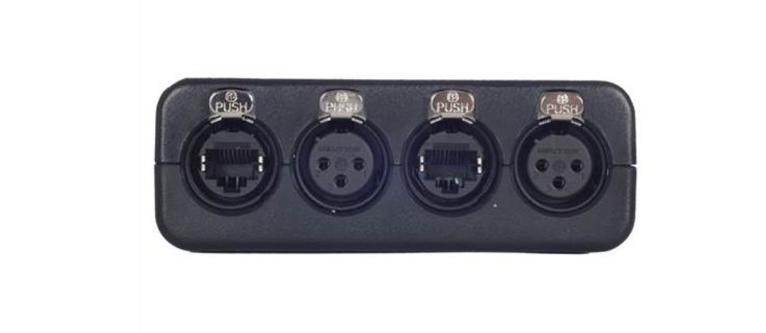

RDNET Connections
2 RJ 45 connectors (EtherCon) for CAT 5 cable
2 Three-pole XLR sockets (as alternative to RJ 45)

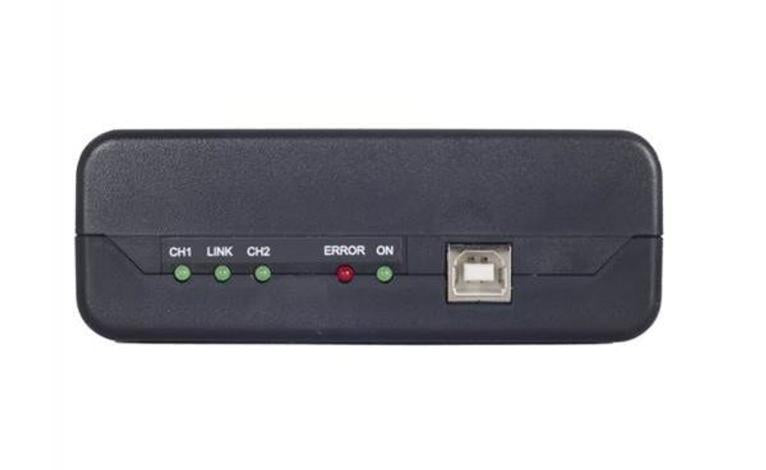

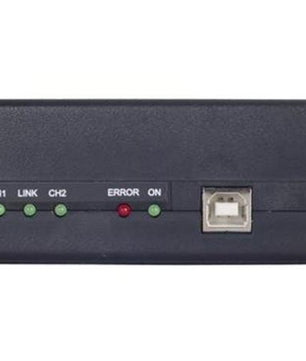

PC Connection
USB (Type B)
Power Supply
USB Type B socket
Material
ABS plastic box, black finish
Dimensions (WxHxD)
4.37" x 1.59" x 3.52"
Weight
6.17 oz (175 gr)
