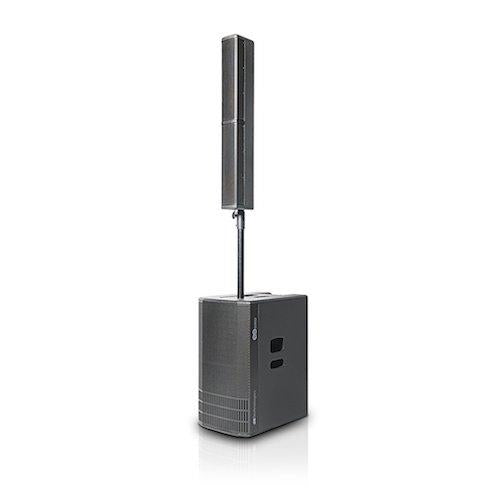

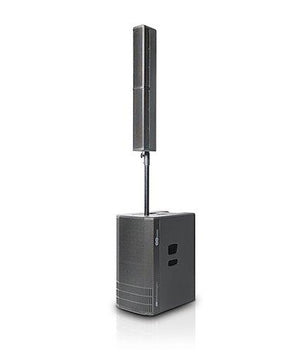

dB Tech ES1002 | Dual 12in Woofers - 1,800 Watts - 130.7dB

GET CLEAR, IMPRESSIVE SOUND WITH THE DB TECH ES1002 COLUMN PA SYSTEM

Remarkably powerful (1800 W peak) for its compact size, this complete PA system is designed for a quick and smooth set up, equally responding to musicians' and DJs' needs.
ES1002 comes with 1 subwoofer and 1 column top, both powered by a class D DIGIPRO G3 amplifier delivering 1800 W peak.

ES 1002 includes one cover for the sub and one cover for the top module.

The top satellite is equipped with 8x4” mid-woofers, whose alignment allows an asymmetrical vertical coverage, avoiding any useless dispersion of the sound above the audience. Moreover, each mid-range woofer is provided with a newly designed phase-plug able to widen the horizontal coverage while guaranteeing a perfect intelligibility of the vocal range from every listening position.

The sub encompasses 2X12” woofers in bass-reflex configuration, the amp module and the control panel, whose inclined design improves usability. I/O section allows to connect up to 2 INPUTS (XLR mono and RCA stereo with independent volume controls) and provides a balanced link out to feed a second system or a stage monitor.

A rotary with 8 preset EQ helps users to perfectly tune the system, adapting it to different environments and uses (playback, live music, speech etc.).

The enclosures of both top and sub are made of plywood, coated with a durable scratch-resistant finish, which makes ES1002 truly road-ready.

Features:

BI-AMPED 1800 W ACTIVE PA SYSTEM
IMPROVED POWER/SIZE RATIO
EXTRA-PRECISE COVERAGE DISPERSION (HORIZONTAL AND VERTICAL)
NEW PHASE-PLUG DESIGN FOR PERFECT INTELLIGIBILITY
ENHANCED USABILITY FOR CONTROL PANEL
8 EQ PRESETS

Specifications:

Speaker Type: BI-Amped Mono Column System

ACOUSTICAL DATA

Frequency Response [-3dB]: 43-20.000 Hz
Usable Bandwidth [-10 dB]: 56 - 18.000 Hz
Max SPL: 130.7 dB
MF - HF: 8x 4"
Type MF - HF: Neodymium
LF: 2x 12"
Directivity: (HxV)97x60

AMPLIFIER

Amp Technology: Digipro G3
Amp Class: Class-D
Power Amp Peak: 1800 W

PROCESSOR

Controller: DSP 24 Bit/48 kHz
System Presets: Flat - Bass boost - Bass reduction - Playback - Speech - Long throw - HPF 80 Hz - HPF 120 Hz
Limiter: Dual Active, Peak, RMS, Thermal
Controls: DSP rotary encoder, volume controls, MIC/LINE Switch
Crossover Frequency: LF-HF 160 Hz

INPUT

Mains Connections: VDE
Signal Input: 1x Combo (XLR/Jack) balanced/unbalanced input Mic/Line, 1x RCA stereo input
Signal Out: 1x XLR balanced output with aux volume + 1x speakon to top

MECHANICS

Housing (Subwoofer): Black Painted Plywood
Housing (Tops): Multiplex Plywood
Handles: 3 (1 on top + 1 each side on sub)
Pole Mount: 36 mm (M20 threaded hole)
Width (Top): 110 mm (4.33 in)
Height (Top): 905 mm (35.63 in)
Depth (Top)160 mm (6.3 in)
Width (Subwoofer): 360 mm (14.17 in)
Height (Subwoofer): 680 mm (26.77 in)
Depth (Subwoofer): 545 mm (21.46 in)
Weight (Top): 5.8 Kg – 12.79 lbs
Weight (Subwoofer): 29.3 Kg 64.59 lbs
