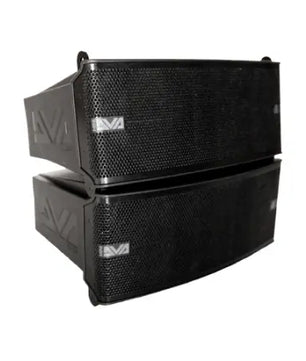

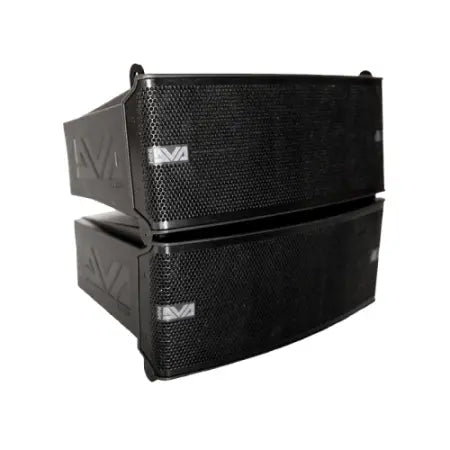

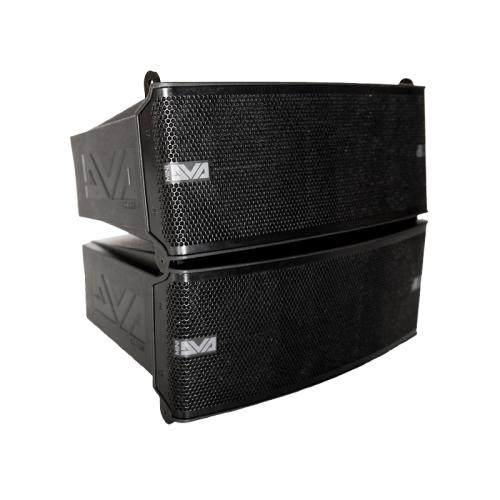

dB Tech DVA M2M+ M2S | 2x Dual 6.5in - 126dB

dB Tech DVA M2M+ M2S | 2x Dual 6.5in - 126dB

$2,819.00

Order within [hour] to get by [date_end]

Quantity

Call For More Details

Call us at 123-456-7890

Guarantee Safe
Checkout

trust_2dea69ed-7223-44f3-828d-a80bc0f3aef4

Offering the same user-friendliness and sound quality of its DVA predecessors, this 2-Way Active Line Array System sets the new benchmark for high-end sound performance thanks to the innovative Master+Slave design which aacks high SPL in incredibly small dimensions and weight. A super versatile system for both portable and permanent installation solutions.

Each unit of DVA MINI system is comprised of two line array modules, each with two 6.5” neodymium woofers and two 1” high-frequency compression drivers. The M2M module is the master module that contains the 400-watt Digipro G3 amplifier that power both the M2M and M2S slave module. The system achieves 126 dB max SPL per unit. Constructed in solid Polipropilene reinforced with an internal anti-vibration structure, DVA MINI features a new fast-lock mechanic design: users simply place one module below the other and slide it towards one side until it locks in place. Moreover, every DVA MINI module has a back mechanic with incremental steps allowing different line array positioning angles.

SPECIFICATIONS:

Technical Data
Speaker Type M2M2-Way Active Master Line Array Module
Speaker Type M2S2-Way Slave Line Array Module
Acoustical data
Frequency Response [-6dB]78 - 19.000 Hz
Frequency Response [-10dB]68 - 20.000 Hz
Max SPL126 dB per unit
HF2x1"
Type HFNeodymium
Voice Coil HF1"
LF2x6.5"
Type LFNeodymium
Voice Coil LF1.5"
Directivity90x15°
Amplifier
Amp TechnologyDigipro® G3
Amp ClassClass D
RMS Power HF Amp200 W (100 W + 100 W)
RMS Power LF Amp200 W (100 W + 100 W)
CoolingConvection
Processor
ControllerDSP 56 bit
AD/DA Converter24 bit/48 kHz
System Presets9 presets (8x HF and Low-Mid corrections and 1x for service use)
LimiterMultiband, RMS/Peak, Thermal
Crossover Frequency LF-HF1800 Hz
Slope LF-HF24 dB/Octave
Input
Signal Input1x XLR fem, Bal.
Signal Output1x XLR male, Bal.
Power Supply400W SMPS with PSU Auto-range (110V~ and 220V~)
Power Socket1x PowerCon In 1x PowerCon Out
Signal Input M2S1 Custom connector
Mechanics
HousingPolypropylen PP
Handles2x back side
FittingsIntegrated hardware with fast lock mechanics
Splay Angles0°- 1,5°- 3°- 4,5° - 6°- 8°- 10°- 12,5°- 15°
Width460 mm (18.1 in)
Height190 mm (7.5 in)
Depth345 mm (13.6 in)
Weight M2M7.6 kg (16.8 lbs)
Weight M2S7.1 kg (15.7 lbs)
