DAS Vantec 118A

$2,799.00

Order within [hour] to get by [date_end]

Quantity

Call For More Details

Call us at 123-456-7890

Guarantee Safe
Checkout

trust_2dea69ed-7223-44f3-828d-a80bc0f3aef4

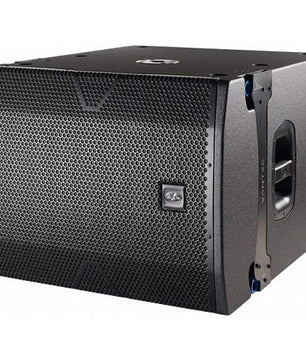

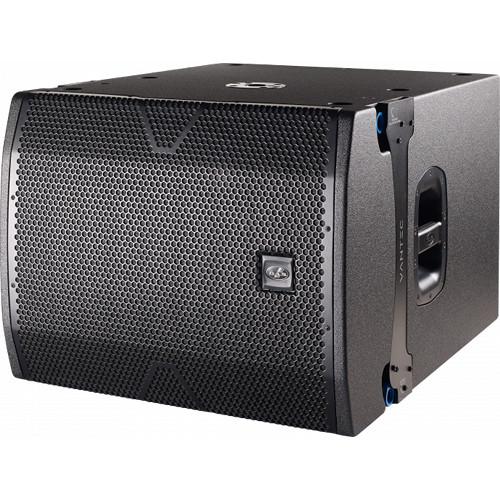

The VANTEC-118A- 18" active line array subwoofer was designed as the companion subwoofer to the DAS VANTEC-20A curved source line array speaker (sold separately). The compact 118A can be flown or deployed in ground stacks using the same DAS Click-Lock rigging system employed by the VANTEC-20A.

Powered by a 2000W peak Class-D amplifier, the 118A provides the type of knee-buckling low end they'll never forget. An integrated "Deep-Loud" switch allows you to tailor the cabinet to produce either a sub-low or chest-thump type response respectively. Gain, polarity, and low-pass filter controls are accessible on the rear panel with the low-pass being variable from 80 to 125Hz. Precise alignment with the VANTEC-20A (sold separately) is possible thanks to phase-coherent engineering within the VANTEC series eliminating the need for external DSP (Digital Signal Processing).

Applications:
Concerts and corporate A/V
Portable and live clubs
Concert halls, theaters and auditoriums
Houses of worship

Features:
Active front-loaded subwoofer system
1 x 18″ DAS 18FW loudspeaker
Class D amplifier 2000 Wpeak
Digital signal processing (DSP)
Unique “Deep-Loud” bass EQ switch
Variable low-pass filter 80 Hz-125 Hz
LED ON/OFF switch on backplate
Rigging compatible with VANTEC-20A
Top located pole mount socket
DAS VANTEC-118A-W Specifications:
Performance
Frequency Range (-10 dB): 35 Hz – 125 Hz
Maximum Peak SPL at 1m: 134 dB
Electronics and Connectors
Nominal Amplifier Power (continuous): 1000 W
Nominal Amplifier Power (peak): 2000 W
Input Type: Balanced
Input Impeadance: 20 kohms
Input Sensitivity: 3 V (+12 dBu)
Audio Signal Input Connector: 2 x Female XLR
Audio Signal Loop Thru Connector: 2 x Male XLR
AC Output Connector: powerCON NAC3FCB
Current Draw 230 V / 115 V: 2.2 A/4.4 A
Enclosure
Enclosure Construction: Birch Plywood
Enclosure Geometry: Rectangular
Rigging: M10 Rigging Points
Finish: ISO-flex Paint
Color: Black
Dimensions ( H x W x D ): 490 x 615 x 785 mm, 19,3 x 24,2 x 30,9 in
Net Weight: 45,2 kg ( 99,4 lb )
Components
LF Driver: 18FW
Shipping
Carton Dimensions ( H x W x D ): 730 x 660 x 880 mm, 28,7 x 26,0 x 34,7 in
Shipping Weight: 48,0 kg ( 105,6 lb )
