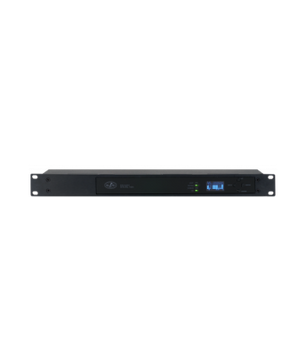

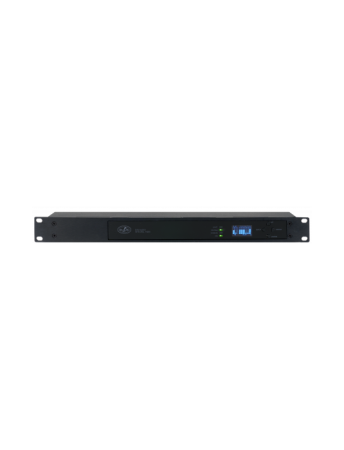

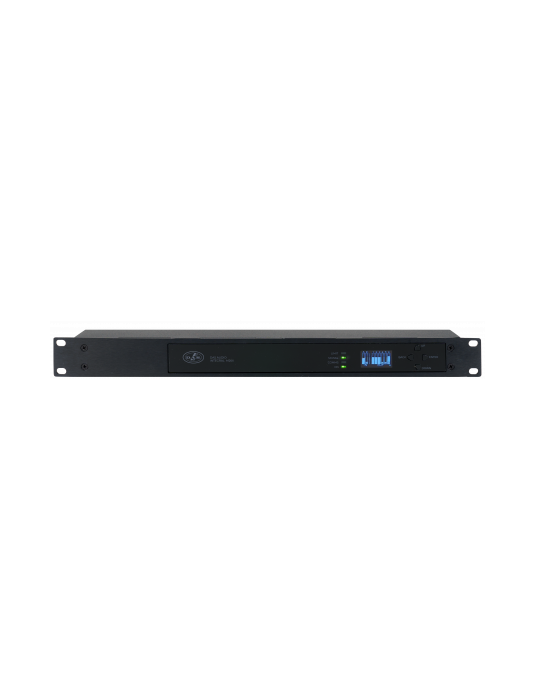

Versatile 1U Digital Signal Processor for Live and Installed Sound Systems

The D.A.S. Audio INTEGRAL-M26X is a 1U rack-mount digital signal processor designed for professional live and installed sound applications. With its 2 analog input channels and 6 analog output channels, this compact unit offers extensive control and optimization capabilities, making it an ideal solution for PA systems and audio installations.

D.A.S. Audio INTEGRAL-M26X Competitive Differences

2 analog inputs and 6 analog outputs with balanced XLR connectors for flexible connectivity
Remote control and monitoring via ALMA™ software using IP technology or OSC messages
1.54" OLED display with control buttons for on-unit parameter adjustments
Comprehensive DSP processing with gain, delay, EQ, and limiter functions
Stores over 100 global presets and 200+ output channel presets, including presets for D.A.S. Audio speakers
General-Purpose Input/Output (GPIO) connector for external control

D.A.S. Audio INTEGRAL-M26X Description

The D.A.S. Audio INTEGRAL-M26X offers professional-grade audio processing in a compact 1U rack-mountable design, making it suitable for a wide range of live and installed PA systems. Equipped with two analog input channels and six analog output channels, this digital signal processor features balanced XLR connections for reliable audio transmission. The device's internal DSP matrix allows for precise adjustments, including gain, delay, routing, equalization, and limiters, enabling optimal sound tuning for any environment. The INTEGRAL-M26X is controlled via the intuitive ALMA™ software over IP, allowing users to adjust settings remotely or through OSC messages. For direct control, the built-in 1.54" OLED display and navigation buttons make it easy to manage input/output levels, preset recalls, and other essential functions. The unit’s internal memory supports over 100 global presets and 200+ output channel presets, including specific settings tailored for D.A.S. Audio speaker models, making system setup quick and efficient. External control is further enhanced through a General-Purpose Input/Output (GPIO) connector, offering 8 configurable pins for customized control options. The universal power supply ensures compatibility with a wide range of power sources, making the INTEGRAL-M26X a reliable choice for global deployments.

INTEGRAL-M26X Features

2 analog input channels and 6 analog output channels with balanced XLR connectors
Remote control via ALMA™ software using IP technology or OSC messages
On-unit control through a 1.54" OLED display and navigation buttons
Comprehensive DSP processing with adjustable gain, delay, EQ, and limiters
Memory for 100+ global presets and 200+ output channel presets, including D.A.S. Audio speaker presets
General-Purpose Input/Output (GPIO) connector with 8 configurable pins
Universal power supply with a range of 90-250 VAC for global compatibility

INTEGRAL-M26X Specifications

Frequency Response: 20 Hz to 30 kHz (+0 -0.5 dB)
Max Input Level: +22 dBu
Max Output Level: +22 dBu
Sampling Rate: 48 kHz
Analog-Digital Converters: 24-bit @ 48 kHz, 118 dBA Dynamic Range
Internal Precision: 32-bit, 64-bit double precision
Latency: 1 ms
Delay: 50 ms per input / 135 ms per output
Equalization: Bell, Lo/Hi-Shelving
Crossover Filters: Linkwitz-Riley, Butterworth, up to 48 dB/oct
LED Indicators: Power, Comms, Signal, Limit
Power: IEC 15A Connector, 90-250 VAC
Cooling: Side-right-to-left airflow
Dimensions: 1.7 x 19.0 x 8.3 in (44 x 483 x 210 mm)
Weight: 5.5 lb (2.5 kg)

What's In The Box

D.A.S. Audio INTEGRAL-M26X Digital Signal Processor
IEC Power Cord
Limited 2-Year Warranty
User Manual
