DAS EVENT 210A | 3-way, 10in -134dB

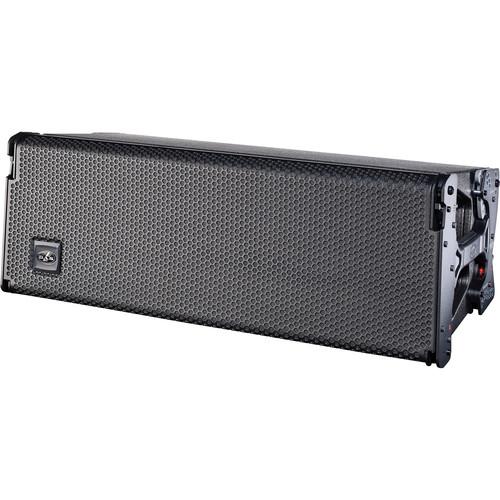

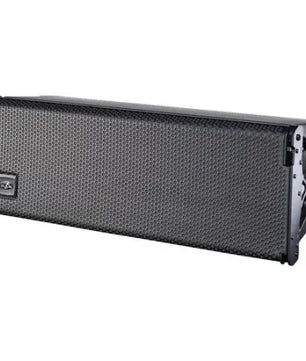

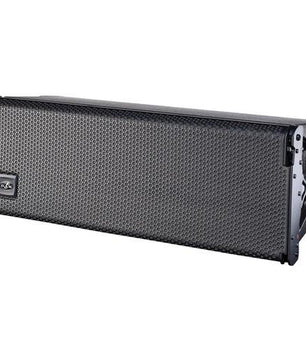

High-Powered 3-Way Line Array Module for Professional Sound Reinforcement

The D.A.S. Audio Event 210A is a versatile, powered three-way line array module designed for professional live sound reinforcement. With 1080W peak power and advanced DSP, it delivers clear, dynamic audio, making it ideal for concerts, venues, and large-scale events that demand precise sound.

D.A.S. Audio Event 210A Competitive Differences

• 1080W peak power with Class-D amplifiers driving two 10" woofers and a 1.5" compression driver
• Advanced DSP with Easy DSP interface for quick setup and array adjustments
• Twin-band configuration for optimal low and mid-frequency performance, reducing off-axis interference
• Injected aluminum waveguide for precise 90° horizontal dispersion
• Rugged birch plywood enclosure with ISO-flex finish and steel grille for durability
• Robust “quick-rig” hardware for seamless array configuration and deployment

D.A.S. Audio Event 210A Description

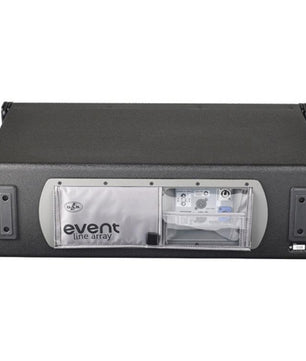

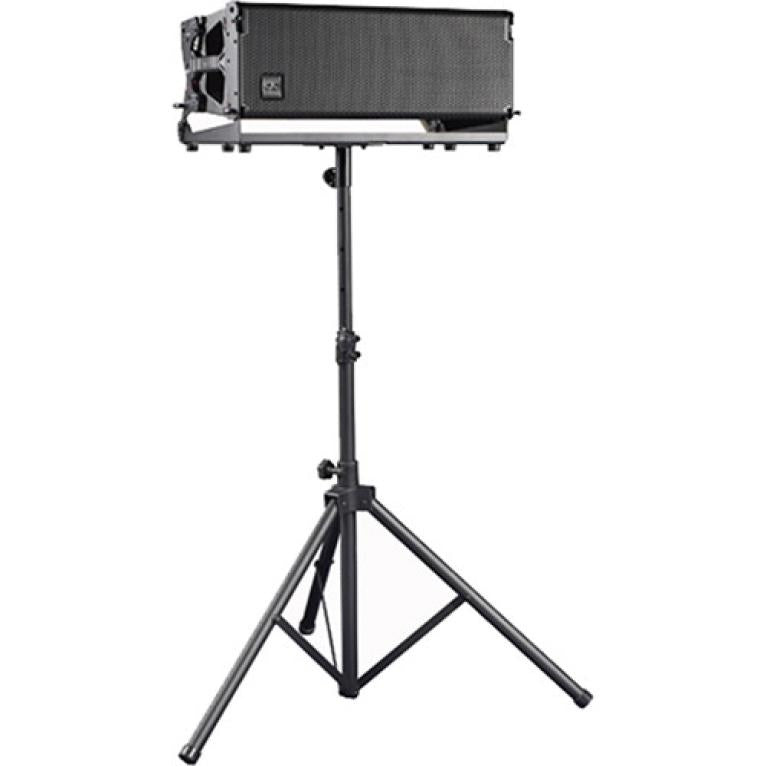

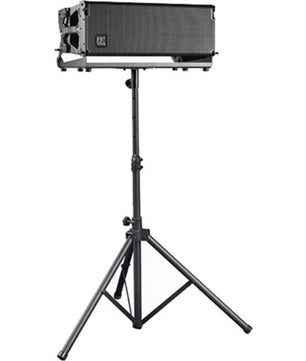

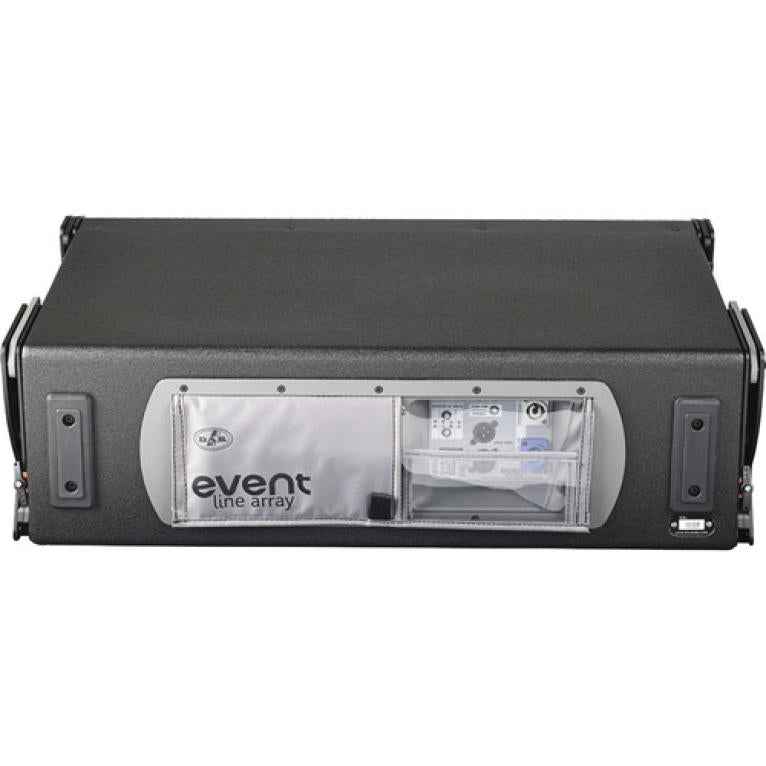

The D.A.S. Audio Event 210A delivers high-quality sound in a compact and efficient three-way design. It features dual 10" woofers and a 1.5" compression driver, offering full-range sound with a frequency response of 70 Hz to 20 kHz. The twin-band configuration enhances the mid-range clarity, while the advanced DSP ensures optimal performance across varying array setups. With a peak SPL of 134 dB, the Event 210A provides powerful sound, suitable for both small and large venues. The Easy DSP interface makes it simple to adjust settings for different array configurations, including down-fill applications, ensuring precise coverage across the venue. The rear panel includes a line-level XLR input and loop-thru output for connecting additional array modules, while built-in limiters protect the electronics and drivers. Its injected aluminum waveguide offers consistent 90° horizontal dispersion, ensuring clear sound across the audience area. Designed for ease of use and transport, the Event 210A features a durable birch plywood enclosure with ISO-flex finish, bar handles, and steel grille. It can be mounted on a stand for smaller setups or stacked and flown for larger configurations, supporting up to 24 modules in a single array.

Event 210A Features

• Dual 10" woofers and 1.5" compression driver for full-range sound
• 1080W peak Class-D amplification (360W per band)
• Advanced DSP with Easy DSP interface for simple setup
• Twin-band woofer configuration for improved low and midrange clarity
• Injected aluminum waveguide for consistent 90° horizontal dispersion
• Steel grille and ISO-flex finished birch plywood enclosure for durability
• Quick-rig hardware for easy assembly and deployment
• Two XLR inputs and loop-thru output for expanded setups

Event 210A Specifications

• Configuration: Active 3-Way Line Array Module
• Total Power Capacity: 1080W Peak
• Amplifier Power:
  • LF: 360W Peak / 180W RMS
  • MF: 360W Peak / 180W RMS
  • HF: 360W Peak / 180W RMS
• Frequency Range (-10 dB): 70 Hz – 20 kHz
• Maximum Peak SPL: 134 dB
• Coverage Angle: 90° Horizontal
• Input Sensitivity: +18 dBu
• Input Impedance: 20 kΩ Balanced
• Audio Inputs:
  • 1 x XLR 3-Pin Female (Line Input)
  • 1 x XLR 3-Pin Male (Thru Output)
• Power Requirements: 115 VAC, 50/60 Hz
• Power Draw: 3 A
• Enclosure: Birch Plywood with ISO-flex Paint
• Dimensions: 10.6 x 28.7 x 14.4 in (269 x 729 x 366 mm)
• Weight: 74.8 lb (33.9 kg)
• Shipping Dimensions: 32.5 x 17.1 x 13.2 in
• Shipping Weight: 76.35 lb

What's In The Box

• D.A.S. Audio Event 210A Powered 3-Way Line Array Module
• powerCon Power Cord
• Limited 2-Year Warranty
• User Manual
