DAS Altea 718A | 18in - 134dB

$1,559.00

Order within [hour] to get by [date_end]

Quantity

Guarantee Safe
Checkout

trust_2dea69ed-7223-44f3-828d-a80bc0f3aef4

High-Powered 18-Inch Subwoofer for Deep Bass Extension

The D.A.S. Audio ALTEA-718A is a powerful 18-inch powered subwoofer designed to deliver deep, extended bass response for the ALTEA full-range cabinets. Featuring a 1200W peak Class-D amplifier and advanced DSP control, it is perfect for enhancing the low-end performance in a variety of live sound and A/V applications.

D.A.S. Audio ALTEA-718A Competitive Differences

1200W peak Class-D amplifier for powerful bass output
High-efficiency 18FW4 woofer with extended 3" voice coil for deep, accurate low-frequency reproduction

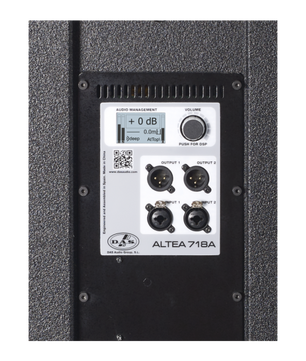

DAScontrol™ interface with easy-to-navigate LCD screen for quick setup and DSP adjustments
Stereo loop-thru XLR outputs for seamless integration with full-range ALTEA systems
Rugged birch plywood enclosure with ISO-flex paint for durability
Integrated M10 rigging points and pole mount for versatile positioning

D.A.S. Audio ALTEA-718A Description

The D.A.S. Audio ALTEA-718A is designed to bring powerful low-end performance to any PA system setup. Equipped with an 18-inch DAS 18FW4 loudspeaker, this subwoofer delivers a rich and deep bass response, extending the frequency range from 45 Hz to 138 Hz. The 1200W peak Class-D amplifier ensures robust and efficient power delivery, capable of achieving a maximum SPL of 134 dB, ideal for medium to large venues. The DAScontrol™ interface, featuring a 24-bit DSP and LCD screen, allows users to easily adjust presets, EQ settings, and system configurations, making setup straightforward. Balanced XLR inputs and stereo loop-thru outputs ensure smooth connectivity with other ALTEA series speakers. The ALTEA-718A’s rugged birch plywood enclosure, coated with ISO-flex paint, provides durability for life on the road or in permanent installations, while integrated M10 rigging points and a pole mount socket add versatility for various configurations.

ALTEA-718A Features

18" DAS 18FW4 woofer with extended 3" voice coil for deep bass performance
1200W peak Class-D amplifier (600W continuous)
24-bit DSP with DAScontrol™ interface and LCD screen
Stereo loop-thru XLR outputs for easy daisy-chaining
High-efficiency design with vented pole piece for cooling
Rugged birch plywood enclosure with ISO-flex paint finish
M10 rigging points and 35mm pole mount socket for flexible installation

ALTEA-718A Specifications

Frequency Range (-10 dB): 45 Hz – 138 Hz
Maximum Peak SPL: 134 dB at 1 m
Amplifier Power: 1200W Peak (600W Continuous)
Input Sensitivity: 1.95 V (+8 dBu)
Input Impedance: 20 kΩ Balanced
Audio Inputs:
- 2 x Female XLR (Balanced)
- 2 x Male XLR (Loop Thru Outputs)
Control: DAScontrol™ for onboard DSP adjustments
Power Requirements: 115/230 VAC, 50/60 Hz
Power Draw: 2.8 A (115 V) / 1.4 A (230 V)
Enclosure: Birch Plywood, Rectangular Design
Dimensions: 28.4 x 21.5 x 25.6 in (720 x 545 x 650 mm)
Weight: 92.6 lb (42.0 kg)
Rigging: M10 Rigging Points, 35mm Pole Mount
Shipping Dimensions: 32.3 x 23.6 x 27.6 in (820 x 600 x 700 mm)
Shipping Weight: 102.5 lb (46.5 kg)
