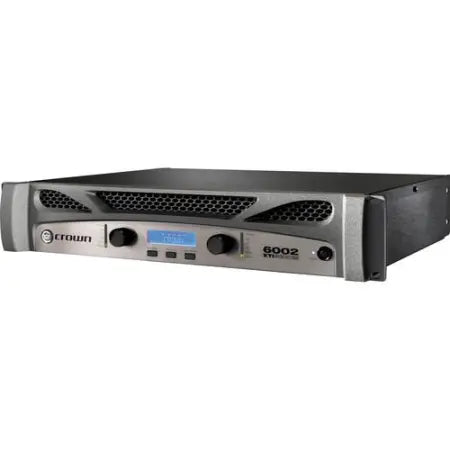

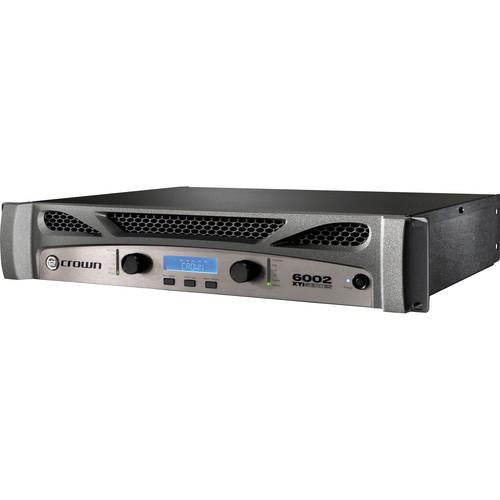

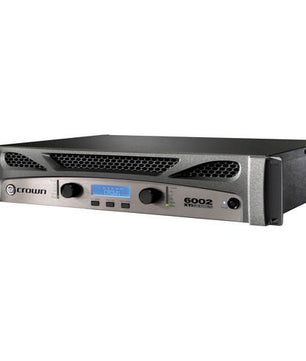

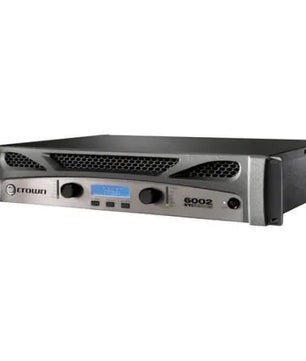

Crown XTI 6002 | 2100W 2-Channel Power Amplifier

The Crown XTi 6002 Power Amplifier delivers up to 1200W per channel at 8 ohms and is an ideal solution for sound reinforcement, nightclub installation, bands, theaters, DJ applications and much more. The XTi 6002 offers highly accurate sound reproduction with very low distortion, perfect for music or voice playback. It has a switch-mode universal power supply so it can be used anywhere. It handles a wide range of speaker impedances and outputs for a high degree of system compatibility.

An array of serious control features are implemented and easily accessed via the included HiQnet Band Manager & System Architect software packages. Crown's Peak Plus Limiters provide the ultimate in system performance and protection. There are 3 user-defined fan modes, adjustable EQ, adjustable crossover filters and much more.

Peak Plus Limiters provide the ultimate in system performance and protection by allowing full control over threshold, attack, and release

Enhanced Subharmonic Synth section provides user control over frequency, gain and filter type for system-specific tuning

3 User-defined fan mode controls - normal, early and fullspeed - for matching fan performance to a specific application

New system monitoring provides software visibility of AC line voltage and power supply temperature

Integrated cast-aluminum handles for easy handling and enhanced durability

Locking power cord clip provides a secure connection between the amplifier and power cord

Updated HiQnet Band Manager and System Architect control software
Increased number of presets to a total of 30; 29 of which are user definable

SPECIFICATIONS:

Number of Channels
2
Amplifier Power Rating
2 Ohms:
3000 W per Channel
4 Ohms:
2100 W per Channel
6000 W Bridged
8 Ohms:
1200 W per Channel
4200 W Bridged
Show Less
DSP
Yes
Analog Audio I/O
2x XLR Input
2x XLR Thru/Output
2x speakON NL4 Output
2x Binding Post Pair Output
Show Less
Amplifier Power Rating
2 Ohms:
3000 W per Channel
4 Ohms:
2100 W per Channel
6000 W Bridged
8 Ohms:
1200 W per Channel
4200 W Bridged
Performance
Protections
Overcurrent, Short Circuit, Thermal
Frequency Response
20 Hz to 20 kHz +0/-1 dB
Damping Factor
> 500
Input Sensitivity
1.4 Vrms
Input Impedance
20 Kilohms (Balanced)
10 Kilohms (Unbalanced)
Max Gain
32.9 dB (at 8 Ohms)
SNR
103 dBA
THD
< 0.5%
Signal Processing
DSP
Yes
Crossover
Yes
Connectivity
Analog Audio I/O
2x XLR Input
2x XLR Thru/Output
2x speakON NL4 Output
2x Binding Post Pair Output
USB I/O
1x USB-B (Network)
Power
AC Input Power
100 to 240 VAC, 50 / 60 Hz
Current Consumption
15.3 A
Power Consumption
180 W (Idle)
Physical
Display & Indicators
1x Green LED (Clip/Level/Output/Signal, per Channel)
1x Green LED (Status, per Channel)
1x Red LED (Clip, per Channel)
1x Red LED (Temp, per Channel)
1x Blue LED (Power)
1x LCD (Backlit/Preset/Status)
Cooling
2x Fan (Variable Speed)
Dimensions
19.0 x 3.5 x 16.2" / 48.3 x 8.9 x 41.1 cm
Weight
24 lb / 10.9 kg
Packaging Info
Package Weight
28.4 lb
Box Dimensions (LxWxH)
22.5 x 22.5 x 7"
