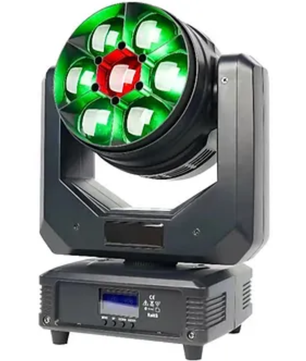

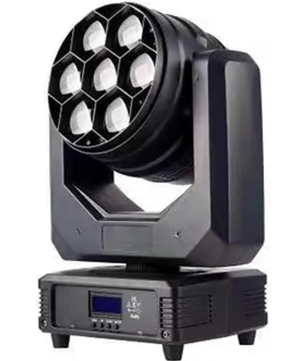

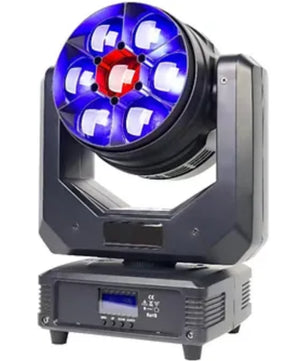

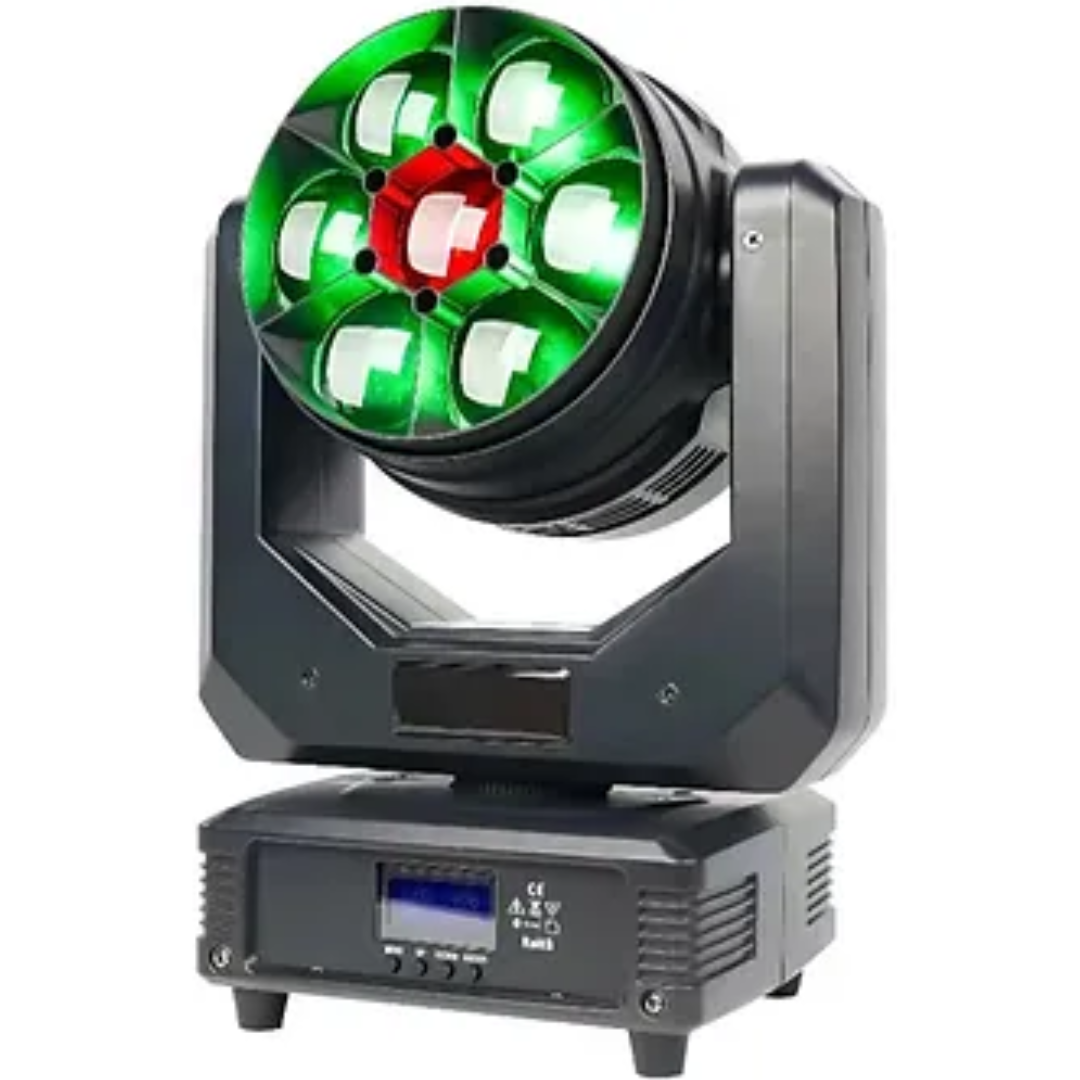

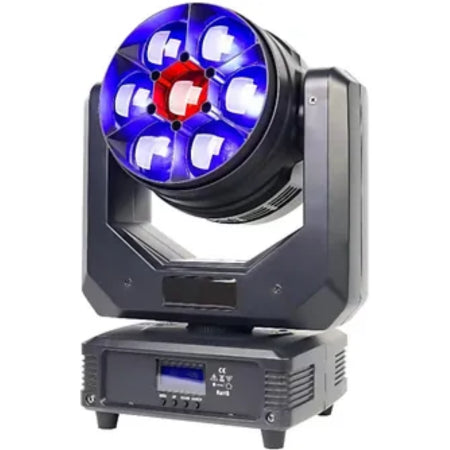

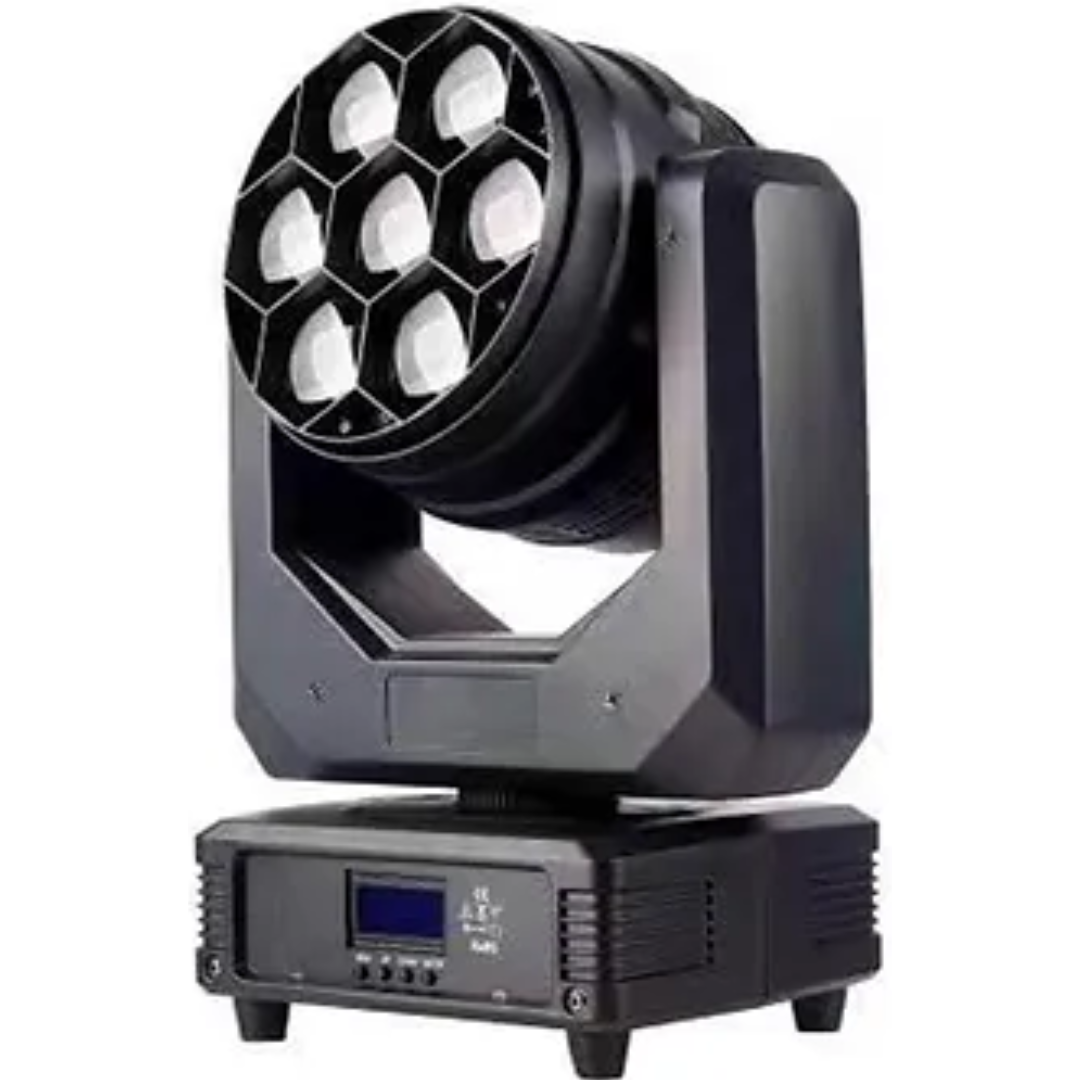

Crisp Stella Wash 740F | 7x40W RGBW Moving Head | 3.5°–45° Zoom & Pixel Mapping

RGBW Moving Head Wash Light

Crisp STELLA WASH 740F is a compact, high-output moving head fixture designed to deliver vivid washes and sharp beams with creative pixel effects. With 7 powerful 40W RGBW LEDs and a wide zoom range, it’s ideal for weddings, churches, clubs, corporate events, and mobile productions that demand versatile, professional lighting.

Crisp STELLA WASH 740F Competitive Differences

• Wide 3.5°–45° motorized zoom for both narrow beams and smooth washes
• Pixel mapping, macro effects, and quiet fan cooling in a compact housing

Crisp STELLA WASH 740F Description

The STELLA WASH 740F brings impressive brightness, color mixing, and creative control to small and mid-sized venues. Its 7x40W RGBW LEDs provide brilliant color rendering and high output in a space-efficient frame. With a beam angle adjustable from a tight 3.5° to a wide 45°, this fixture adapts easily to changing environments—use it for energetic beam effects or smooth color washes across walls, ceilings, or stages. Equipped with pixel mapping and built-in macro effects, this fixture allows for engaging chases, fades, strobe bursts, and color transitions right out of the box. The 0–100% linear dimming and strobe rate of 1–25Hz allow fine-tuned control for atmospheric changes or intense visual energy. Control flexibility is provided through 21, 24, 32, or 60-channel DMX modes, with support for Auto, Sound Active, Master/Slave, and DMX operation. A bright LCD display, PowerCon in/out, and 3-pin DMX ports make setup and programming straightforward for both fixed installs and mobile rigs. Thanks to its quiet operation and efficient cooling system, the Crisp STELLA WASH 740F is a top choice for events where ambient noise must be minimized—such as ceremonies, conferences, or theatrical settings.

Model Features

• 7x40W RGBW LEDs for high-output color mixing and wash effects
• Motorized zoom from 3.5° to 45° for narrow beams or wide coverage
• Pixel mapping with dynamic built-in macro effects
• Quiet fan-cooled operation ideal for noise-sensitive environments
• 0–100% linear dimming and 1–25Hz strobe rate
• Pan: 540°, Tilt: 270° with 8/16-bit resolution
• Multiple control modes: DMX, Auto, Sound, Master-Slave
• LCD display for easy navigation and setup

Model Specifications

• Power Supply: AC 100–240V, 50/60Hz
• Power Consumption: 250W
• Fuse: 3A
• LED Source: 7x40W RGBW LEDs
• LED Lifespan: 50,000 hours
• Beam Angle: 3.5°–45° motorized zoom
• Dimming: 0–100% linear
• Strobe: 1–25Hz
• DMX Channels: 21 / 24 / 32 / 60 CH
• Control Modes: DMX, Auto, Sound Active, Master-Slave
• Pan/Tilt: 540° / 270° (8/16-bit resolution)

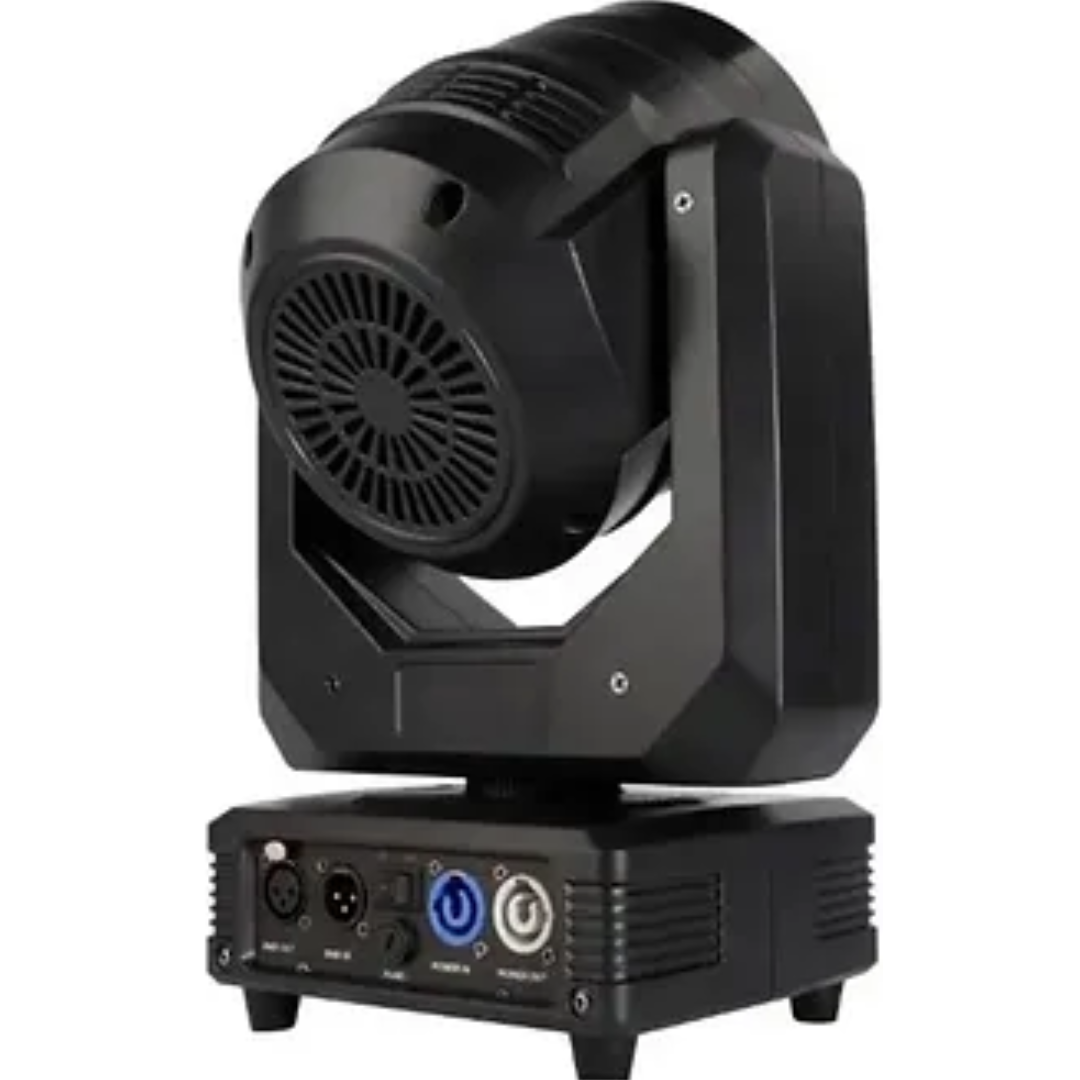

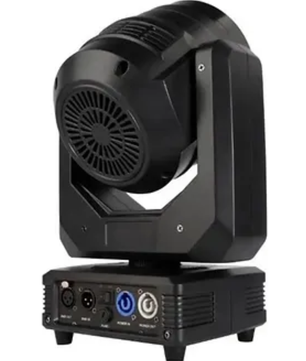

• Connectors: 3-pin DMX I/O, PowerCon I/O
• Display: LCD
• Cooling: Quiet fan-cooled
• IP Rating: IP20 (indoor use)
• Operating Temp: -10°C to 40°C (14°F to 104°F)
• Dimensions: 7.7 x 6.55 x 13.5 in (195 x 166 x 343 mm)
• Weight: 12.35 lb (5.6 kg)

What's In The Box

• STELLA WASH 740F fixture
• PowerCon power cable
• Quick start guide
