Crest Audio Versarray Pro 215 | Dual 15in - 139dB

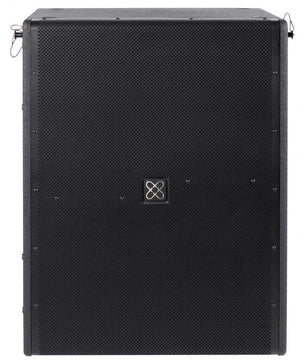

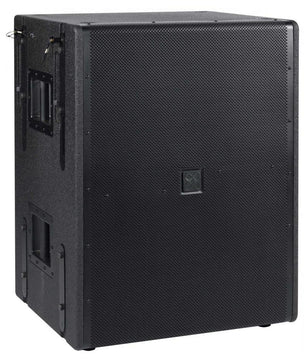

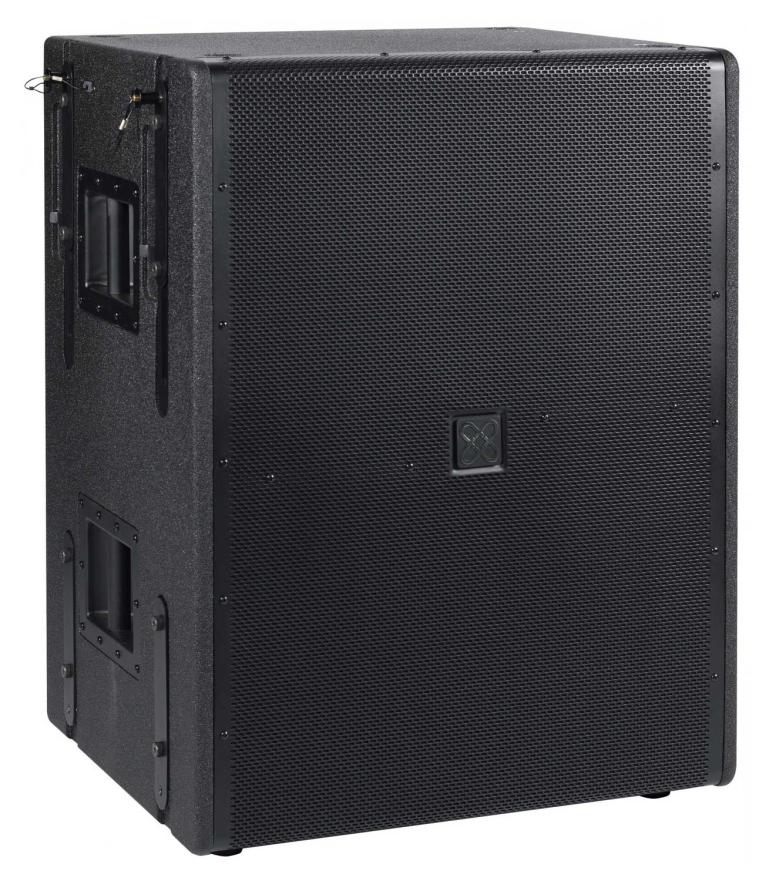

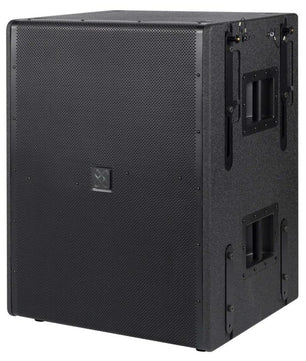

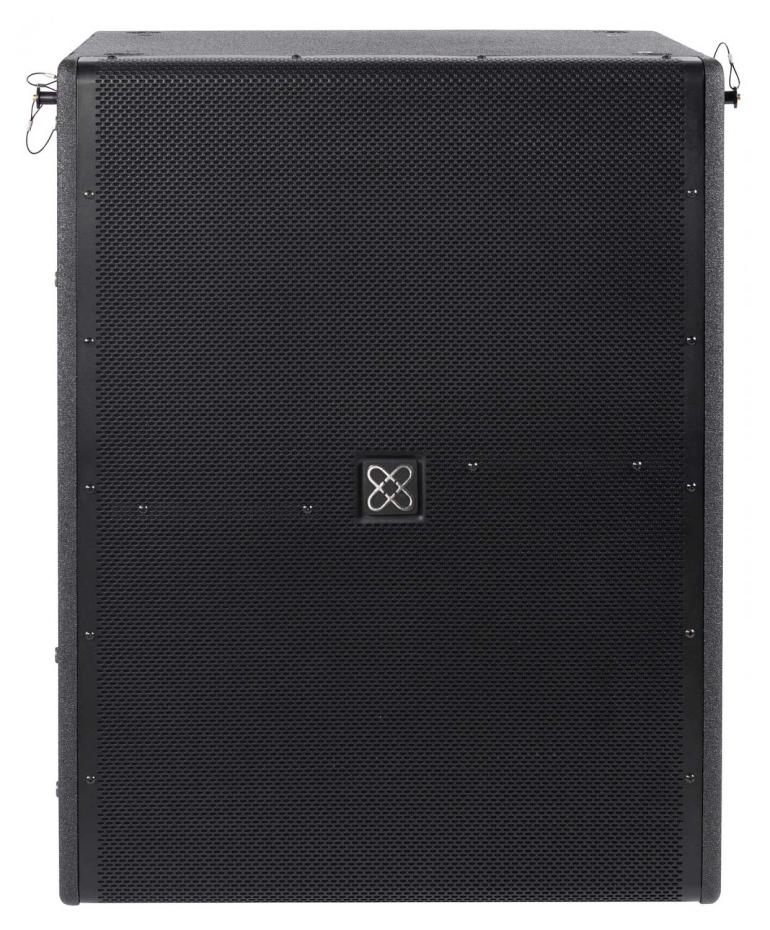

The Crest Audio Versarray PRO 215 Sub powered subwoofer speaker system consists of a pair of 15” Low Rider® woofers combined with a supersolid cabinet with a simple, quick, yet flexible rigging system. Designed to provide modular coverage of small to medium venues, and intended for use with the companion Crest Audio Versarray PRO 112 models, the Versarray PRO 215 Sub offers excellent versatility with a very high performance capability. The subwoofer system consists of the following woofer components: a pair of 15” Low Rider series woofers with a very long throw 4” voice coil structure. Capable of over 800 Watts of continuous power handling (AES Std 2-1984) each, these woofers can project a lot of low frequency energy.

The Versarray PRO 215 Sub incorporates UniVent™ air pumping venting technology. The UniVent venting system literally pumps air through the enclosure, exchanging the stale hot air inside the cabinet for the cooler outside air. This helps keep the woofer operating temperatures from getting so high, and increases reliability and reduces power compression under heavy continuous drive conditions. The air pumping action is achieved without excessive turbulence or any significant net asymmetry of total vent air flow.

Power for both woofers is supplied by some very efficient power amplifier systems, controlled by a sophisticated and refined DSP operations system with Dante® connection capability. Total system power is 3000 Watts total peak power, with 1500 Watts total sine wave power for the woofers. This sheer power is controlled precisely and processed by a high performance DSP system, which provides all the crossover and EQ functions, as well as providing all limiting, compression and driver protection duties with unfailing attention to every detail of the music.

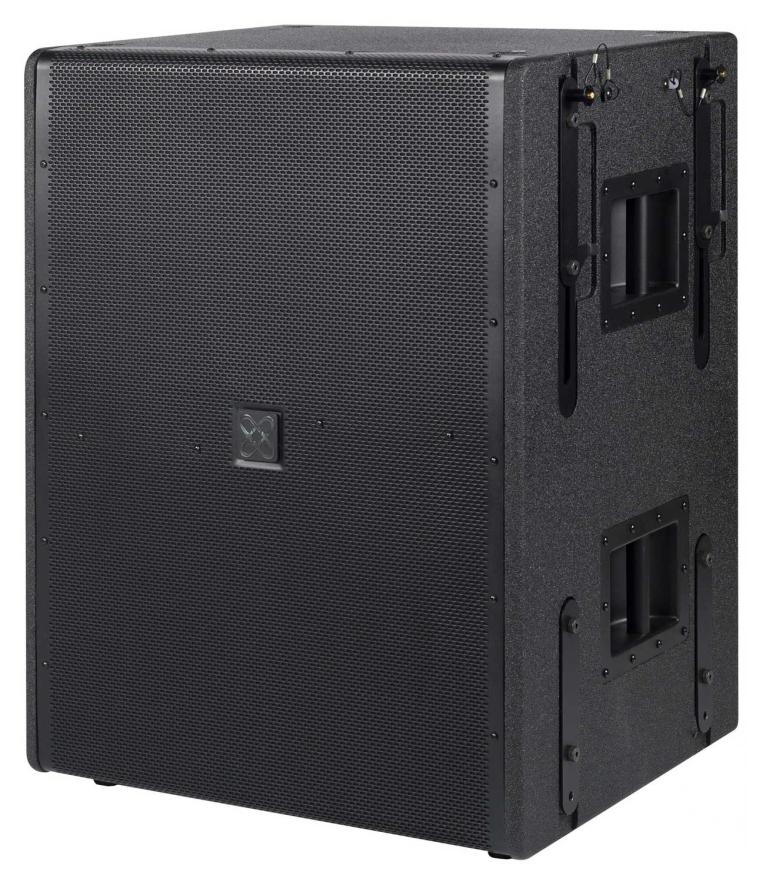

The adjustable rigging system provides for hanging multiple Crest Audio Versarray PRO 112 cabinets below a single Sub, or multiple Subs. Quick-lock pins are supplied with the rigging hardware to couple the Versarray PRO 215 Subs together, and to the rigging Halo and Frames. The flexibility of the Versarray FlyQWIK™ system allows the use of anywhere from 1 to 7* Versarray PRO 215 Subs in conjunction with an appropriate number of Versarray PRO 112 cabinets.

An optional special Sub Support Frame rigging adaptor mounts to the Versarray PRO 215 Sub, and allows Versarray PRO 112’s to be flown below the Sub, with the Sub being flown from a Crest Audio Versarray Halo.

Features Versarray PRO 215 Sub

• Dual woofer subwoofer SR system
• 3000 Watts total peak of system power
• Two 15″ Low Rider 4″ VC woofers
• UniVent air pumping venting technology
• Power amp is fan cooled for maximum reliability
• Easy FlyQWIK hardware rigging system
• Full complement of DSP based limiting and compression to protect the drivers from overdrive conditions

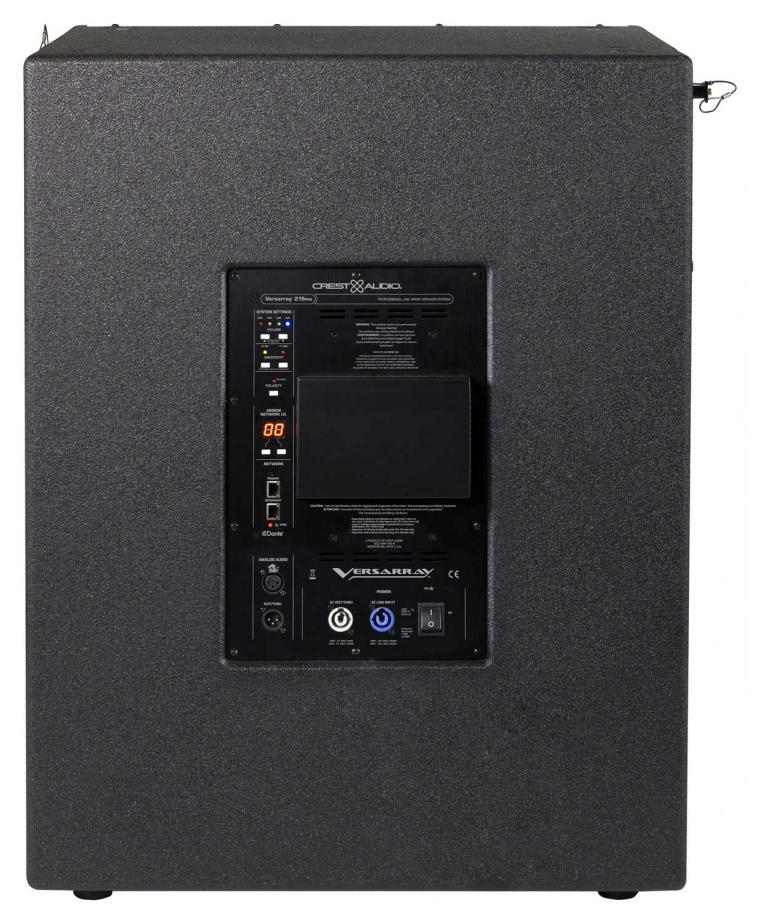

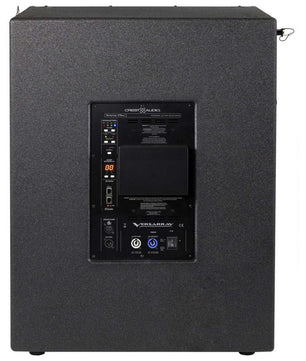

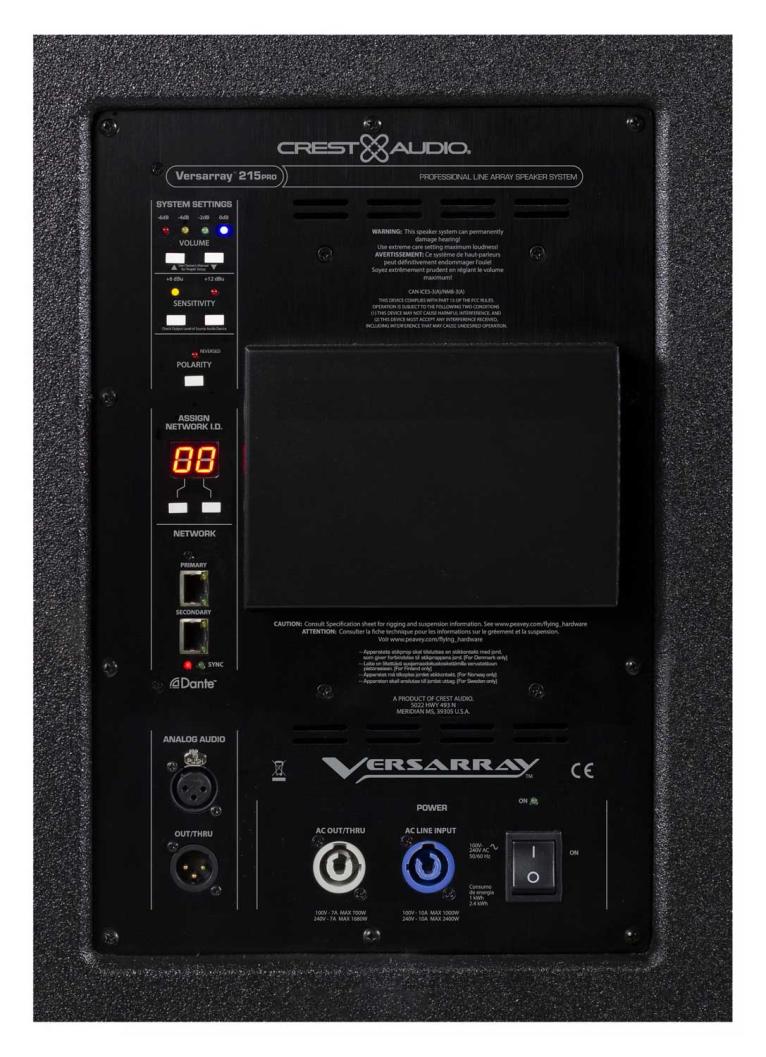

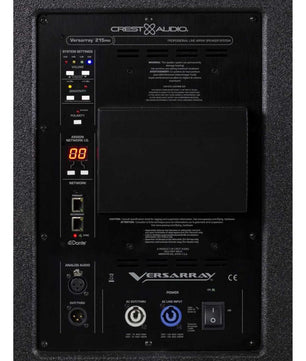

• Inputs are analog XLR in and/or Dante Ethernet audio network in
• Analog output thru connector is a male XLR
• 18 mm 13-ply Baltic Birch enclosure
• Hammerhead polyurea black finish and black powder-coated cloth lined grilles
• PowerCON TRUE 1 TOP input and thru AC power connections
• Comes with PowerCON AC cords, one AC outlet to Sub, and one jumper cord
• Has rubber feet for floor use when not flown
* North America (PLASA) only! For EU up to 6!


Speaker Configuration
Subwoofer

Speaker Type
Powered

DSP On-Board
Yes

Networked Audio
Yes (Dante)

Network Control
Yes

Power RMS
800 W

Power Program
1500 W

Power Peak
3000 W

Sensitivity (1W/1m)
101 dB

Maximum SPL
139 dB

Speaker Frequency Response
35 Hz – 125 Hz (-6 dB)

LF Driver
2 x 15" Low Rider® Woofer, 4" Voice Coil

Input Connectors
1 x XLR & 2 x RJ45

Output Connectors
1 x XLR

Suspension Points
FlyQWIK Flying Hardware

Enclosure Material
Baltic Birch Plywood

Color
Black

Net Weight
161.0 lbs (73.20 kg)

Product Height
32.75" (832 mm)

Product Width
27.23" (692 mm)

Product Depth
21.25" (540 mm)

AC Power Input
Universal Power Supply 120-240VAC 50/60 Hz

SKU
03617340
