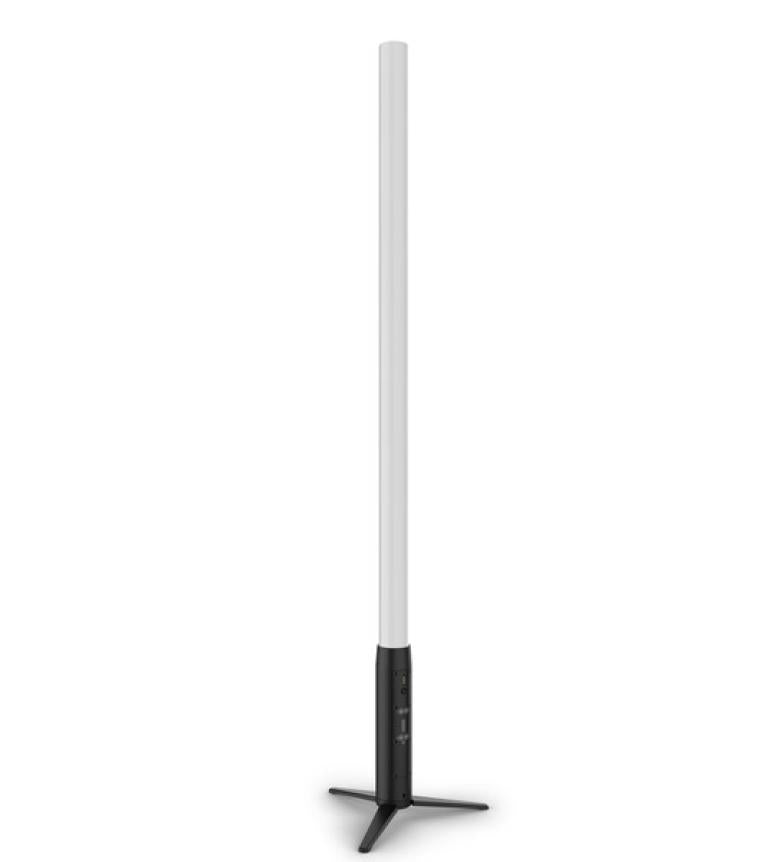

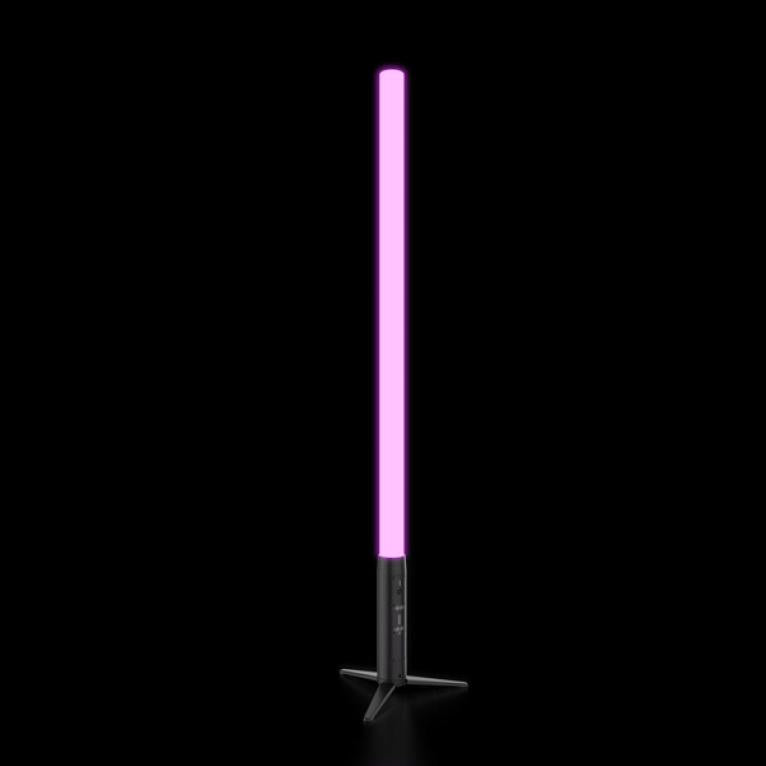

WELL STX 360 is a large freestanding, battery-operated, and outdoor-ready LED tube that emits 360° of ultra-bright, high-quality, pixel-mappable light. Wireless control of 16 zones of the RGBWW LED’s produce exceptional eye-candy effects with high CRI – so it will look as great on camera as it does in person. In addition to being IP65 rated, WELL STX 360 can also be oriented in any position so you can fully utilize the wireless freedom this fixture is capable of. The unit is packaged as part of a complete kit that includes: 4 WELL STX 360, 4 eyebolts for suspended hanging options, 4 folding floor stands, 1 IR Remote, and 1 charging flight case. The device is also controllable via W-DMX, which can be used with almost any standard lighting controller, including the WELL COM with its built in W-DMX receiver.
Features:

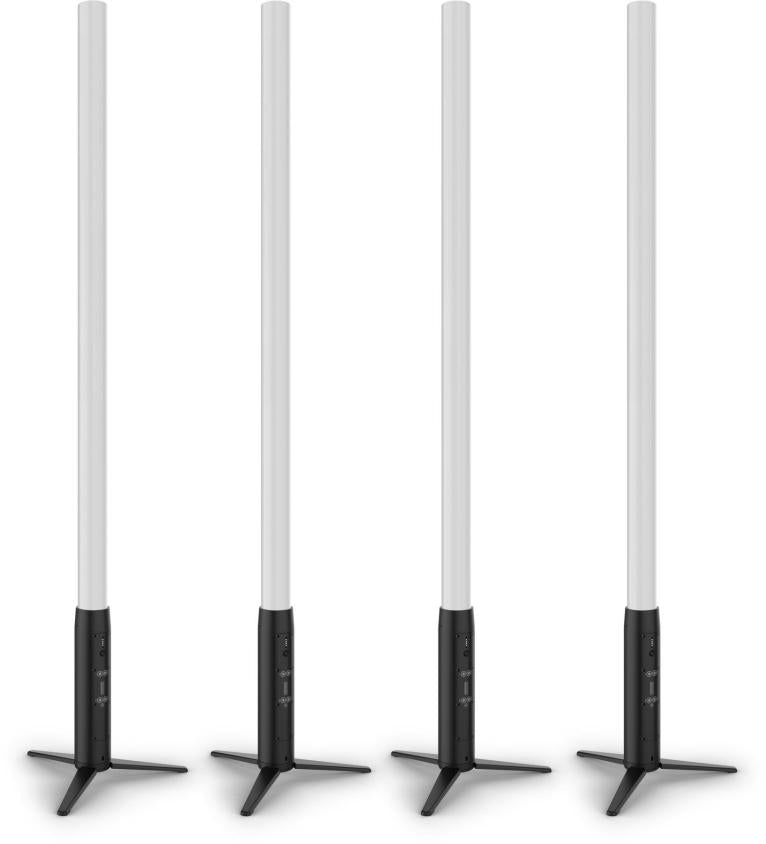

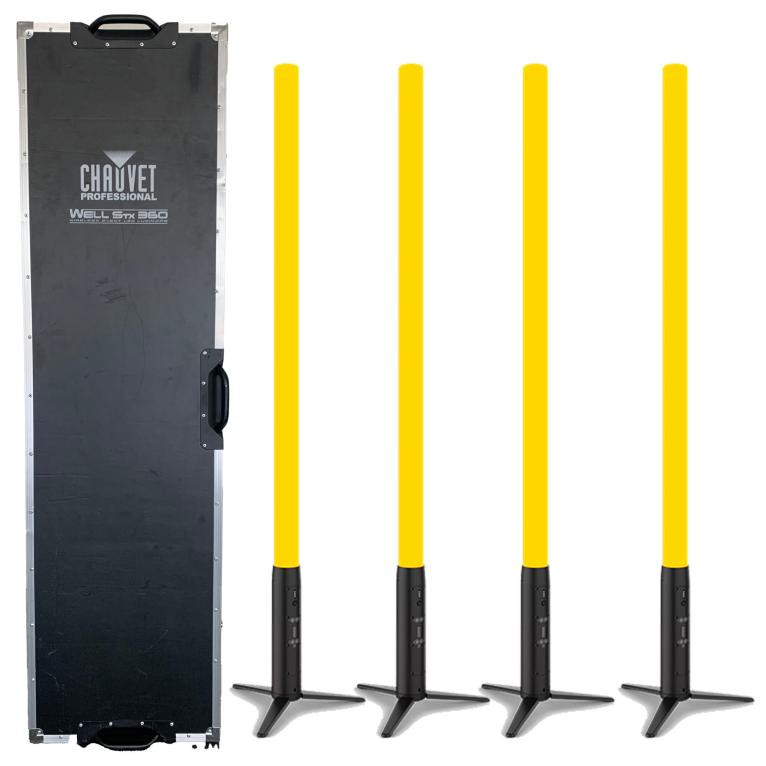

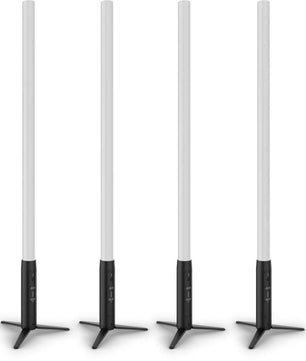

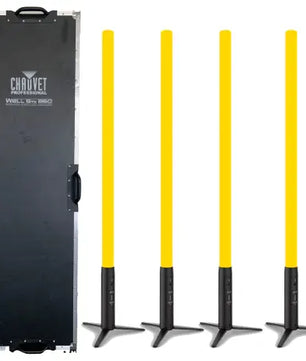

(4) Pixel-mapping, battery operated, 1.5 meter, IP65 rated LED sticks with 360 degree viewing angle, including (4) mounting stands, (4) hanging eye bolts, (1) IR remote, and (1) charging case
16 individual zones of control for pixel mapping effects
High CRI LEDs for fantastic skin tone rendering
Simple and complex operational modes
Built in editable pre-programmed effects that are controllable from the menu and over DMX
3, 5, 8, and 12 hour settings for optimizing performance time
Included accessories for several mounting options
Included charging flight case for easy transportation and charging of fixtures
Update software over USB-C connection in flight case (upload all 4 fixtures at once)
Works in both stand-alone modes as well as under DMX over W-DMX
Works perfectly with the WELL-COM controller and app
Specifications:
OPTICAL
Light Source: 512 LEDs (256 RGB / 256 WW) SMD 5050, 50,000 hours life expectancy
Color Temperature (range): 2800 to 8000 K
Color Temperature (at full): 9670 K
CRI: 91.9 @ 4000 K
Beam Angle: 360°
Field Angle: 360°
Illuminance (total): 5 lux @ 5 m – 3 hr run time
Lumens – Output : 1,718 lm – 3 hr run time
PWM Frequency: Scrambled PWM
DYNAMIC EFFECTS
Dimmer: Electronic
Shutter/Strobe: Electronic
Strobe Rate: 0 to 28 Hz
Standalone Color Mixing: Yes
Color Temperature Presets: Yes
Dim Modes: 4
Built-in Automated Programs: Yes
CONSTRUCTION / PHYSICAL
Dimensions: 59.09 x 2.75 x 2.75 in (1501 x 70 x 70 mm)
Dimensions (charging case): 69.8 x 19.5 x 6.4 in 1773 x 495 x 163 mm)
Weight: 9 lb (4.1 kg)
Exterior Color: Black
Housing Material: Aluminum alloy, Plastic
CONNECTIONS
Power Connection (single charger): Edison (Local) plug to Seetronic Powerkon IP65
Power Connection (charging case): Edison (Local) plug to Seetronic Powerkon IP65
Power Input (single charger): Seetronic Powerkon IP65
Power Input (charging case): Seetronic Powerkon IP65
Power Output (charging case): Seetronic Powerkon IP65
Cable Length power (single charger): 5 ft (1.5 m)
Cable Length power (charging case): 5 ft (1.5 m)
CONTROL
Control Protocol: W-DMX
DMX Channels: 4, 15, 64 or 67
Modes/Personalities: 4 personalities
ELECTRICAL
Input Voltage (charging case): 100 to 240 VAC, 50/60 Hz (auto-ranging)
Input Voltage (single charger): 24 VDC, 2.5 A, 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power Linking (charging case): 8 units @ 100 V; 10 units @ 120 V; 10 units @ 208 V; 11 units @ 230 V; 12 units @ 230 V
Power and Current (single charger): 41 W, 0.403 A @ 100 V, 60 Hz
Power and Current (charging case): 164 W, 1.612A @ 100 V, 60 Hz
Power and Current (single charger): 40 W, 0.331 A @ 120 V, 60 Hz
Power and Current (charging case): 160 W, 1.324 A @ 120 V, 60 Hz
Power and Current (single charger): 66 W, 0.315 A @ 208 V, 60 Hz
Power and Current (charging case): 264 W, 1.260 A @ 208V, 60 Hz
Power and Current (single charger): 67 W, 0.291 A @ 230 V, 50 Hz
Power and Current (charging case): 268 W, 1.188 A @ 230 V, 50 Hz
Power and Current (single charger): 67 W, 0.281 A @ 240 V, 50 Hz
Power and Current (charging case): 268 W, 1.124 A @ 240 V, 50 Hz
Power and Current (resting w/single charger):3 W, 0.035 A @ 100 V,60 Hz
Power and Current (resting w/charging case):12 W, 0.140 A @ 100 V, 60 Hz
Power and Current (resting w/single charger): 4 W, 0.036 A @ 120 V, 60 Hz
Power and Current (resting w/charging case): 16 W, 0.144 A @ 120 V, 60 Hz
Power and Current (resting w/single charger): 9 W, 0.043 A @ 208 V, 60 Hz
Power and Current (resting w/charging case): 36 W, 0.172 A @ 208 V, 60 Hz
Power and Current (resting w/single charger): 9 W, 0.041 A @ 230 V, 50 Hz
Power and Current (resting w/charging case): 36 W, 0.164 A @ 230 V, 50 Hz
Power and Current (resting w/single charger): 10 W, 0.042 A @ 240 V, 50 Hz
Power and Current (resting w/charging case): 40 W, 0.168 A @ 240 V, 50 Hz
BATTERY
Battery type: Lithium Ion
Quantity of cells: 5 cells
Rechargeable: Yes
Watt Hours: 185.9 Wh
Battery Charge Time: 4 hours
Battery Life: 3,5,8,12 hours
Battery Power: 18.5 V, 10.05 Ah
CERTIFICATIONS / QUALIFICATIONS
CE, FCC
IP Rating: IP65, for temporary outdoor use
Temperature (startup): -4 °F to 113 °F (-20 °C to 45 °C)
Temperature (operating): -22 °F to 113 °F (-30 °C to 45 °C)
WHAT'S INCLUDED
(4) WELL STX 360
True 1 style power cord with Edison plug (EU bare end)
Charging flight case
(4) tripod stands
(4) hanging eye bolts
(1) IR RemoteQuick Reference Guide
