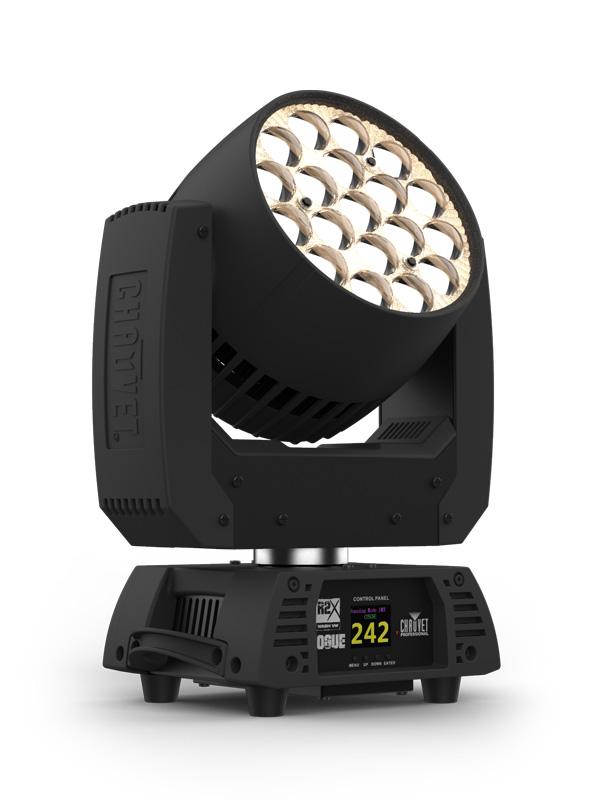

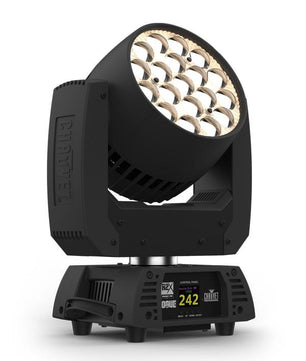

Rogue R2X Wash VW
Rogue R2X Wash (Variable-White) is a variable white version of the industry-leading Rogue R2X Wash. Ideal for broadcast and exhibition markets, this versatile unit is capable of rendering nearly any temperature of white ranging from 2600 to 6075K. Rogue R2X Wash utilizes 19 (25 W) Warm White and Cool White LEDs, offering five zones of LED control for pixel-mapping effects, as well as built-in automated programs. The versatile zoom range of 12° to 49° and unique lens design allows for full coverage in even the widest of areas. Control your way via DMX or RDM.
AT A GLANCE
Fully featured variable white LED yoke wash fixture with LED zone control and zoom
16-bit dimming of master dimmer as well as individual colors for smooth control of fades 19 variable white LEDs, 25 W each
3- and 5-pin DMX input/output connections
5 zones of LED control for pixel mapping control
Unique lens design for excellent blending
Fast, smooth pan and tilt movement
Built in color temp presets from 2800 K to 6000 K
RDM enabled for remote addressing and trouble shooting
6 distinct dimming modes for advanced control
Omega mounting bracket, fits all Rogue and Maverick fixtures
Easy to read OLED display with simple, effective menu options
Simple and complex DMX channel profiles for programming versatility
SPECIFICATIONS
OPTICAL
Light Source: 19 LEDs (CW and WW) 25 W, (1.5 A), 50,000 hours life expectancyColor Temperature (range): 2600 to 6075 KBeam Angle: 8° to 34.4°Field Angle: 11.3° to 50.4°Zoom Angle: 11.3° to 50.4° Lumens – Source: 10,700 lmLumens – Output: 10,918 lmIlluminance (11.3°): 14,499 lux @ 5 mIlluminance (50.4°): 1,266 lux @ 5 m Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 15,000 Hz
DYNAMIC EFFECTS
Pan and Tilt: 540°/230°Pan and Tilt Ranges: 180°, 360°, 540° pan/90°, 180°, 230° tiltDimmer: ElectronicShutter/Strobe: ElectronicZoom: MotorizedStrobe Rate: 0 to 20 HzStandalone Color Temperature Mixing: YesColor Temperature Presets: YesDim Curves: 4Built-in Automated Programs: YesCustomizable Programs: NoRecall Custom Programs: No
CONSTRUCTION / PHYSICAL
Dimensions: 8.58 x 12.05 x 15.67 in (218 x 306 x 398 mm)Weight: 22.8 lb (10.3 kg)Exterior Color: BlackHousing Material: High-impact flame-retardant polymer
CONNECTIONS
Power Connection: Edison (Local) plug to Neutrik® powerCON® Power Input: Neutrik® powerCON® Power Output: Neutrik® powerCON® Data Connectors: 3- and 5-pin XLRCable Length (power): 5 ft (1.5 m)
CONTROL
Control Protocol: DMX, RDMDMX Channels: 15, 18, 23, 34 or 36Modes/Personalities: 7 personalities (15CH, 18CH, 23CH, 23CH MS, 34CH, 36CH or 36CH MS)
ELECTRICAL
Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)Power Linking: 4 units @ 120 V; 8 units @ 208 V; 9 units @ 230 VPower and Current: 336 W, 2.825 A @ 120 V, 60 HzPower and Current: 335 W, 1.620 A @ 208 V, 60 HzPower and Current: 339 W, 1.467 A @ 230 V, 50 Hz
CERTIFICATIONS / QUALIFICATIONS
CE, MET, FCCIP Rating: IP20, dry location
WHAT'S INCLUDED
Rogue R2X Wash VWNeutrik® powerCON® power cordOmega bracket with mounting hardware
OPTIONAL ACCESSORIES
Professional Clamps: CTC-50HC, CTC-50HCNSafety Cable: SC-07 Neutrik® powerCON® cablesDMX CablesFlight Case: CP6CASER2WUPLOAD 08 software uploader
