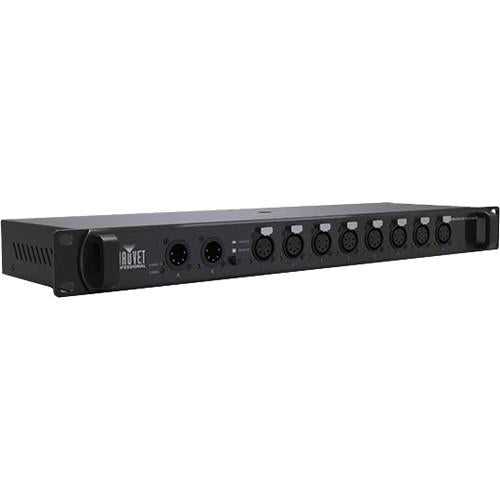

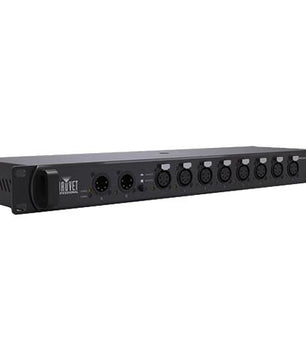

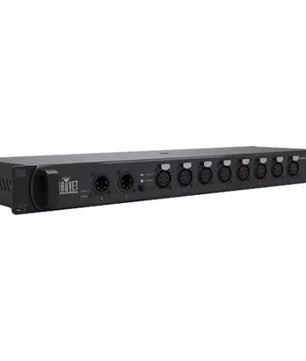

Chauvet Pro RDMX Splitter 8

Featuring 8 outputs and 2 inputs, Chauvet Professional's RDMX Splitter 8 can instantly go from a 1x8 splitter to a 2x4 splitter for two different universes. This versatile RDM and 5-pin DMX opto-splitter simplifies installation next to existing fixtures with powerCON power linking, making it easier than ever to isolate, amplify and split a signal. For added versatility, the unit can be either rack- or truss-mounted and supports electrical isolation between inputs and outputs up to 1000 V between ports.

Features:

Universal RDM E1.20 compliant 5-pin DMX opto-splitter that supports either 1x8 (single universe) or 2x4 (dual universes) modes with the press of a button; or functions as a 2x4 A/B splitter
Includes power linking to make it easy to install next to existing fixtures, so isolating, amplifying, and splitting signals are now easier than ever
Rugged reinforced housing supports 1U rackmount and mounting to pipe and truss without additional accessories
Electrical isolation between inputs and outputs up to 1,000 V between ports
powerCON power linking supported to make it easy to split signal at a fixture, where power and data are already present

Specifications:

Optical:
Dimensions: 19" x 5.75" x 1.77" (483 x 146 x 45 mm)
Weight: 4.2 lbs (1.9 kg)
Exterior Color: Black
Housing Material: Steel and aluminum
Rackmount: 1U

Connections:
Power Connection: Edison (Local) plug to Neutrik powerCON
Power Input: Neutrik powerCON
Power Output: Neutrik powerCON
Device Data Inputs: 5-pin XLR (2 total)
Device Data Outputs: 5-pin XLR (8 total)
Cable Length (power): 5 ft (1.5 m)

Control:
Control Protocol: DMX, RDM Pass-thru
Modes: 2 (1x8, 2x4)

Electrical:
Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power Linking: 15A
Power and Current: 11W, 0.09 A @ 120 V, 60 Hz
Power and Current: 14W, 0.06 A @ 208 V, 60 Hz
Power and Current: 14W, 0.06 A @ 230 V, 50 Hz

Certifications / Qualifications:
CE
IP Rating: IP20, dry location
Temperature (Ambient): -4°F to 113°F (-20°C to 45°C)
