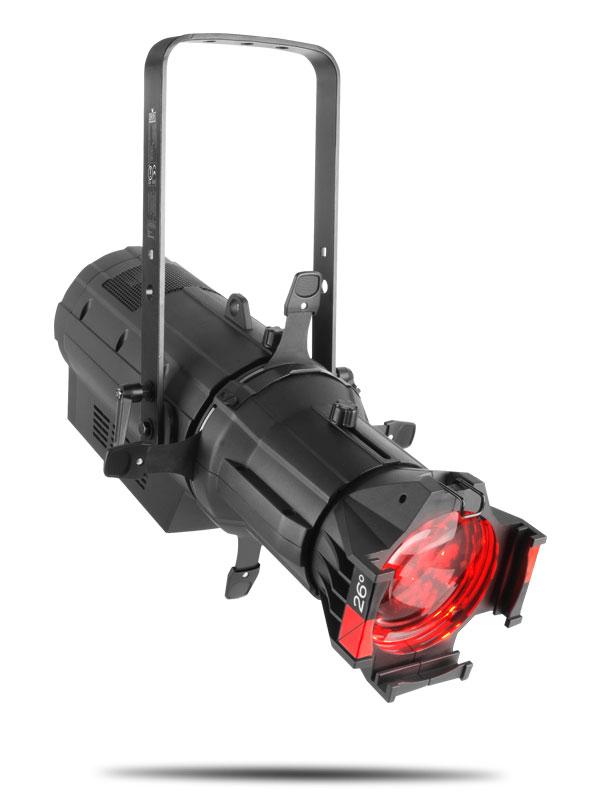

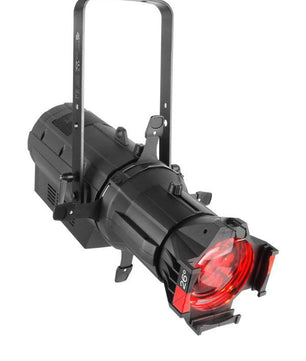

Ovation E-910FC is a high-performance ERS-style fixture with full RGBA-Lime color mixing and Color Temperature presets of 2800 to 6500 K that match the output of a tungsten source to perfection. Control options include full 16-bit dimming (per color and master), selectable PWM, RDM and onboard dimming curve selection. Also accessible is our Virtual Color Wheel which matches popular gel colors.
AT A GLANCE
Full Color LED (RGBAL) ERS-style lighting fixture for theatre, film and production
Ultra smooth 16-bit dimming of master dimmer and individual colors
Flat, even field of light with superior color mixing
Virtual Color wheel with color matched to popular gel colors
Color Temperature Presets from 2800 K to 6500 K with high CRI & CQS
RDM (Remote Device Management) for added flexibility
Adjustable PWM (Pulse Width Modulation) to avoid flickering on camera
Virtually silent operation for use in studio and theatre applications
Works perfectly with industry standard lens tubes and accessories
SPECIFICATIONS
OPTICAL
Light Source: 91 LEDs (18 red, 18 green, 19 blue, 18 amber, 18 lime green) 3 W, (722 mA), 6031 K, 50,000 hours life expectancy
Color Temperature (range): 2800 to 6500 K
Color Temperature (at full): 6031 K
CRI (3200 K): 82
Beam Angle (w/14° lens): 11°
Beam Angle (w/19° lens): 19°
Beam Angle (w/26° lens): 24°
Beam Angle (w/36° lens): 28°
Beam Angle (w/50° lens): 41°
Beam Angle (w/15°–30° lens)(Narrow): 13°
Beam Angle (w/15°–30° lens)(Wide): 24°
Beam Angle (w/25°–50° lens)(Narrow): 23°
Beam Angle (w/25°–50° lens)(Wide): 36°
Field Angle (w/14° lens): 14°
Field Angle (w/19° lens):19°
Field Angle (w/26° lens): 26°
Field Angle (w/36° lens): 34°
Field Angle (w/50° lens): 51°
Field Angle (w/15°–30° lens)(Narrow): 15°
Field Angle (w/15°–30° lens)(Wide): 29°
Field Angle (w/25°–50° lens)(Narrow): 26°
Field Angle (w/25°–50° lens)(Wide): 50°
Lumens (w/14° lens):
Lumens (w/19° lens): 3,236
Lumens (w/26° lens): 4,316
Lumens (w/36° lens): 3,918
Lumens (w/50° lens): 3,813
Illuminance (w/14° lens): 4,420 lux @ 5 m
Illuminance (w/19° lens): 2,530 lux @ 5 m
Illuminance (w/26° lens): 1,720 lux @ 5 m
Illuminance (w/36° lens): 1,020 lux @ 5 m
Illuminance (w/50° lens): 457 lux @ 5 m
Illuminance (w/15°–30° lens)(Narrow): 4,260 lux @ 5 m
Illuminance (w/15°–30° lens)(Wide): 1,620 lux @ 5 m
Illuminance (w/25°–50° lens)(Narrow): 1,790 lux @ 5 m
Illuminance (w/25°–50° lens)(Wide): 825 lux @ 5 mS
electable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 25,000 Hz
DYNAMIC EFFECTS
Dimmer: Electronic
Shutter/Strobe: Electronic
Focus: Manual
Strobe Rate: 0 to 28 Hz
Standalone Color Mixing: Yes
Color Temperature Presets: Yes
Dim Modes: 4
Built-in Automated Programs: Yes
CONSTRUCTION / PHYSICAL
Dimensions (fixture only): 19.49 x 11.22 x 19.17 in (495 x 285 x 487 mm)
Dimensions (w/14° lens extended): 28.74 x 11.22 x 19.17 in (730 x 285 x 487 mm)
Dimensions (w/26° lens extended): 25.91 x 11.22 x 19.17 in (658 x 285 x 487 mm)
Dimensions (w/15°–30° lens): 32.87 x 14.61 x 14.61 in (835 x 371 x 371 mm)
Dimensions (w/25°–50° lens): 27.17 x 14.61 x 14.61 in (690 x 371 x 371 mm)
Weight (fixture only): 15.4 lb (7.1 kg)
Weight (w/14° lens): 20.8 lb (9.43 kg)
Weight (w/26° lens): 19.8 lb (9 kg)
Weight (w/15°–30° lens): 29.4 lb (13.3 kg)
Weight (w/25°–50° lens): 27 lb (12.2 kg)
Exterior Color: Black
Gobo Size (Optional): “A”: 100 mm (outside), 75 mm (image), 2.5 mm (max. thickness)
Gobo Size (Optional): “B”: 86 mm (outside), 64.5 mm (image), 2.5 mm (max. thickness)
Accessory Holder/Gel Frame Size (19°, 26°, 36°, and 50° lens): 6.25 in (159 mm)
Accessory Holder/Gel Frame Size (15°–30° lens): 7.5 in (191 mm)
Accessory Holder/Gel Frame Size (25°–50° lens): 7.5 in (191 mm)
CONNECTIONS
Power Connection: Edison (Local) plug to Neutrik powerCON
Power Connection: Edison (Local) plug to Neutrik powerCON
Power Output: Neutrik powerCON
Data Connectors: 5-pin XLR
Cable Length (power): 5 ft (1.5 m)
CONTROL
Protocol(s): DMX, RDM
DMX Channels: 3, 5, 7, 10, 12, 13, 15 or HSV
Modes/Personalities: 7 personalities (3, 5, 7, 10, 12, 13, 15 or HSV)
ELECTRICAL
Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power Linking: 6 units @ 120 V; 11units @ 208 V; 12 units @ 230 V
Power and Current: 240 W, 2.006 A @ 120 V, 60 Hz
Power and Current: 234 W, 1.2 A @ 208 V, 60 Hz
Power and Current: 234 W, 1.1 A @ 230 V, 50 Hz
CERTIFICATIONS / QUALIFICATIONS
CE, MET, FCC
IP Rating: IP20, dry location
WHAT'S INCLUDED
OVATION E-910FC
Neutrik powerCON power cord
REQUIRED ACCESSORIES
Lens Tube: 19°, 26°, 36°, 50°
OPTIONAL ACCESSORIES
Professional Clamps: CTC-50HC, CTC-50HCN
Neutrik powerCON cables
3-pin or 5-pin DMX Cables
Color Blending Filters: DF60X1D, DF20D
Ovation Zoom Lenses: OHDZOOM1530, OHDZOOM2550
Gobo Holder: Standard “S4” size Sandwich Style or Iris Slot Style gobo holder for “A” or “B” size gobos
