****Lens Tube sold separately

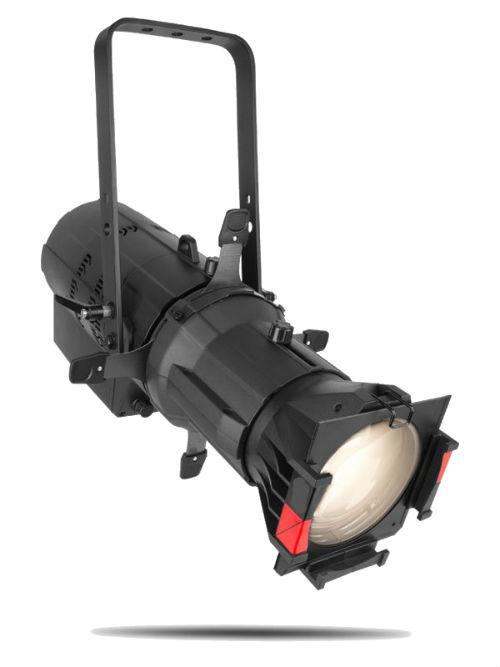

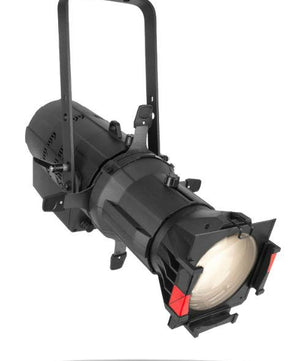

Ovation E-260WW IP takes the brilliant breakthrough concept of the Ovation E-260WW and places it outdoors. Our standard shutter assembly and lenses lend familiarity and ease-of-use to this groundbreaking IP65-rated ERS-style fixture with an output surpassing that of 750 W HPL. This groundbreaking ellipsoidal also boasts extremely smooth dimming down to the very bottom of the curve as well as a flat and even field of light for superior gobo projection. Selectable PWM, RDM, and onboard dimming curves ease setup and programming.
Features:
Warm white ERS-style fixture with output exceeding a tungsten 750 W source
Fully IP65 rated for seasonal use indoors or out
Use of our standard Ovation beam shaping shutters and lenses lends familiarity and ease of use to the fixture
Ultra smooth 16-bit dimming, and 8-bit dimming curves to complement any lighting scheme.
Flat, even field of light for superior gobo projection
RDM (Remote Device Management) for added flexibility
Adjustable PWM (Pulse Width Modulation) to avoid flickering on camera
OPTICAL
Light Source: 1 LED (WW) 202 W, (3.6 A), 3149 K, 50,000 hours life expectancy
Color Temperature (at full): 3149 K
CRI: 91
Beam Angle (w/14° lens): 11°
Beam Angle (w/19° lens): 13°
Beam Angle (w/26° lens): 16°
Beam Angle (w/36° lens): 20°
Beam Angle (w/50° lens): 28°
Beam Angle (w/15°–30° lens)(Narrow): 12°
Beam Angle (w/15°–30° lens)(Wide): 14°
Beam Angle (w/25°–50° lens)(Narrow): 21°
Beam Angle (w/25°–50° lens)(Wide): 22°
Field Angle (w/14° lens): 14°
Field Angle (w/19° lens): 18°
Field Angle (w/26° lens): 25°
Field Angle (w/36° lens): 34°
Field Angle (w/50° lens): 50°
Field Angle (w/15°–30° lens)(Narrow): 15°
Field Angle (w/15°–30° lens)(Wide): 29°
Field Angle (w/25°–50° lens)(Narrow): 26°
Field Angle (w/25°–50° lens)(Wide): 46°
Dimming Modes: 4
Lumens (w/19° lens): 7,587
Lumens (w/26° lens): 10,284
Lumens (w/36° lens): 10,121
Lumens (w/50° lens): 9,655
Illuminance (w/14° lens): 14,149 lux @ 5 m
Illuminance (w/19° lens): 9,256 lux @ 5 m
Illuminance (w/26° lens): 6,910 lux @ 5 m
Illuminance (w/36° lens): 4,053 lux @ 5 m
Illuminance (w/50° lens): 1,703 lux @ 5 m
Illuminance (w/15°–30° lens)(Narrow): 12,430 lux @ 5 m
Illuminance (w/15°–30° lens)(Wide): 5,339 lux @ 5 m
Illuminance (w/25°–50° lens)(Narrow): 4,997 lux @ 5 m
Illuminance (w/25°–50° lens)(Wide): 3,295 lux @ 5 m
Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz,
25,000 Hz
Dynamic Effects
Dimmer: Electronic
Shutter/Strobe: Electronic
Strobe Rate: 0 to 30 Hz
Color Temperature Presets: No
Dim Modes: 4
Built-in Automated Programs: Yes
Construction / Physical
Dimensions (fixture only): 19.49 x 11.14 x 18.42 in
Dimensions (w/14° lens extended): 28.7 x 11.14 x 18.42 in
Dimensions (w/26° lens extended): 23.5 x 13.46 x 19.92 in
Dimensions (w/15°–30° lens): 32.87 x 14.61 x 14.61 in
Dimensions (w/25°–50° lens): 27.17 x 14.61 x 14.61 in
Weight (fixture only): 20.2 (9.2 kg)
Weight (w/14° lens): 25.6 lb (11.6kg)
Weight (w/26° lens): 24.4 lb (11kg)
Weight (w/15°–30° lens): 34.2 lb (15.5kg)
Weight (w/25°–50° lens): 31.8 lb (14.4kg)
Exterior Color: Black
Gobo Size (Optional): “A”: 94 mm (outside), 79 mm (image),
2.5 mm (max. thickness)
Gobo Size (Optional): “B”: 94 mm (outside), 69 mm (image),
2.5 mm (max. thickness)
Accessory Holder/Gel Frame Size (14° lens): 7.5 in (191 mm)
Accessory Holder/Gel Frame Size (19°, 26°, 36°, and 50°
lens): 6.25 in (159 mm)
Accessory Holder/Gel Frame Size (15°–30° lens): 7.5 in (191
mm)
Accessory Holder/Gel Frame Size (25°–50° lens): 7.5 in (191
mm)
Control
Control Protocol: DMX
DMX Channels: 1, 2, 3 or 6
Modes/Personalities: 4 personalities (1, 2, 3, 6)
Electrical
Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power Linking: 7 units @ 120 V; 12 units @ 208 V; 13 units @
230 V
Power and Current: 221 W, 1.85A @ 120 V, 60 Hz
Power and Current: 215 W, 1.11 A @ 208 V, 60 Hz
Power and Current: 213 W, 1.01 A @ 230 V, 50 Hz
Connections
Power Connection: Edison (local) plug to Seetronic
Powerkon IP65
Power Input: Seetronic Powerkon IP65
Power Output: Seetronic Powerkon IP65
Data Connectors: 5-pin XLR
Cable Length (power): 5 ft (1.5 m)
Certifications / Qualifications
CE, MET
IP Rating: IP65, outdoor/wet, with pressure equalizing M12 GORE® valve
What's Included
Ovation E-260WW IP
Seetronic Powerkon IP65
