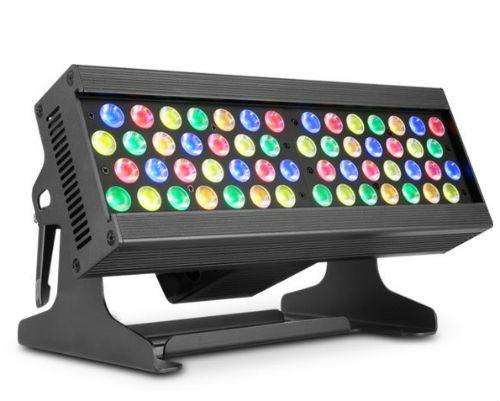

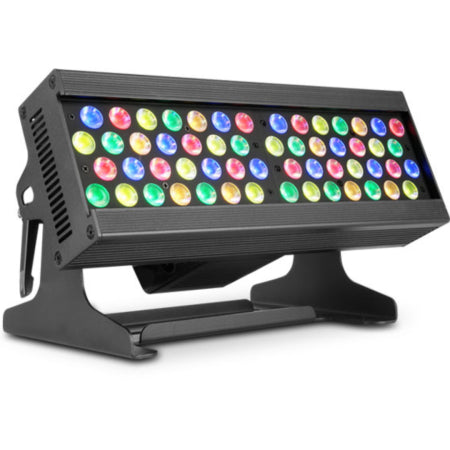

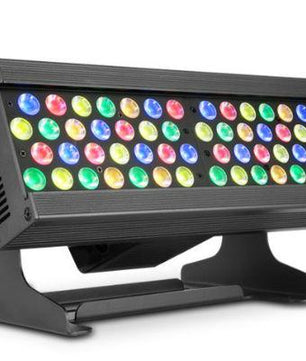

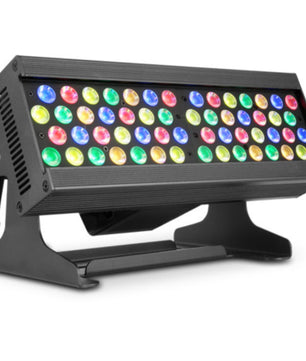

Ovation B-565FC boasts groundbreaking features such as an RGBA-Lime color system and the incorporation of RDM, Art-Net™ and sACN plus standard DMX for programming and networking options. This little powerhouse not only makes a great batten-style light, but is also a tremendous standard wash. A holographic filter is included and locks into place so the fixture can be used in any orientation with no worry about the filter sliding out.
Features:
Full Color LED (RGBAL) batten fixture for theatre, film and production
Theatre-ready with 16-bit dimming of master dimmer and individual colors
Multiple control personalities with one or two sections of control
Included holographic filter locks in place for ultra-smooth color mixing with a more elliptical wash pattern
Virtual Color wheel with color matched to popular Rosco Gel colors
Art-Net™, sACN, 3- and 5-pin DMX and RDM (Remote Device Management) for added control flexibility
Neutrik® powerCON® and Amphenol etherCON® compatible connections for power and data linking
Adjustable PWM (Pulse Width Modulation) to avoid flickering on camera
Nearly silent operation for use in studio and theatre applications
Specifications:
Optical
Light Source: 56 LEDs (12 red, 12 green, 12 blue, 8 amber,
12 lime) 3 W, (650 mA), 50,000 hours life expectancy
Color Temperature (range): 2800 K to 6500 K
Installed Optics: 20°
Beam Angle (horizontal): 19°
Beam Angle (vertical): 20°
Beam Angle (horizontal w/filter): 36°
Beam Angle (vertical w/filter): 20°
Field Angle (horizontal): 37°
Field Angle (vertical): 37°
Field Angle (horizontal w/filter): 66°
Field Angle (vertical w/filter): 40°
Illuminance: 1,637 lux @ 5 m
Illuminance (w/filter): 470° @ 5 m
Selectable PWM: 600 Hz, 1200 Hz, 2000 Hz, 4000 Hz, 6000
Hz, 25,000 Hz
Dynamic Effects
Dimmer: Electronic
Shutter/Strobe: Electronic
Strobe Rate: 0 to 30 Hz
Standalone Color Mixing: Yes
Color Temperature Presets: Yes
Dim Modes: 4
Built-in Automated Programs: Yes
Construction / Physical
Dimensions: 13.9 x 7.48 x 8.14 in (355 x 190 x 207 mm)
Weight: 11.6 lb (5.3 kg)
Exterior Color: Black
Housing Material: Aluminum die-cast
Accessory Holder/Gel Frame Size: 13.86 x 3.66 in (352 x 93
mm)
Connections
Power Connection: Edison (Local) plug to Neutrik®
powerCON®
Power Input: Neutrik® powerCON®
Power Output: Neutrik® powerCON®
Data Connectors: 3- and 5-pin XLR, Amphenol etherCON®
Compatible
Cable Length (power): 5 ft (1.5 m)
Control
Protocol(s): Art-Net™, DMX, RDM, sACN
DMX Channels: 1 Cell: 3, 4, 5, 8, 9, 10, 10, 17 - 2 Cell: 6, 8, 10,
15, 17, 19, 20, 31
Art-Net™ Channels: 1 Cell: 3, 4, 5, 8, 9, 10, 10, 17 - 2 Cell: 6, 8,
10, 15, 17, 19, 20, 31
Modes/Personalities: 16 personalities
Electrical
Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power Linking: 13 units @ 120 V; 22 units @ 208 V; 23 units
@ 230 V
Power and Current: 125 W, 1.04 A @ 120 V, 60 Hz
Power and Current: 120 W, 0.61 A @ 208 V, 60 Hz
Power and Current: 119 W, 0.51 A @ 230 V, 50 Hz
Certifications / Qualifications
CE, MET
IP Rating: IP20, dry location
