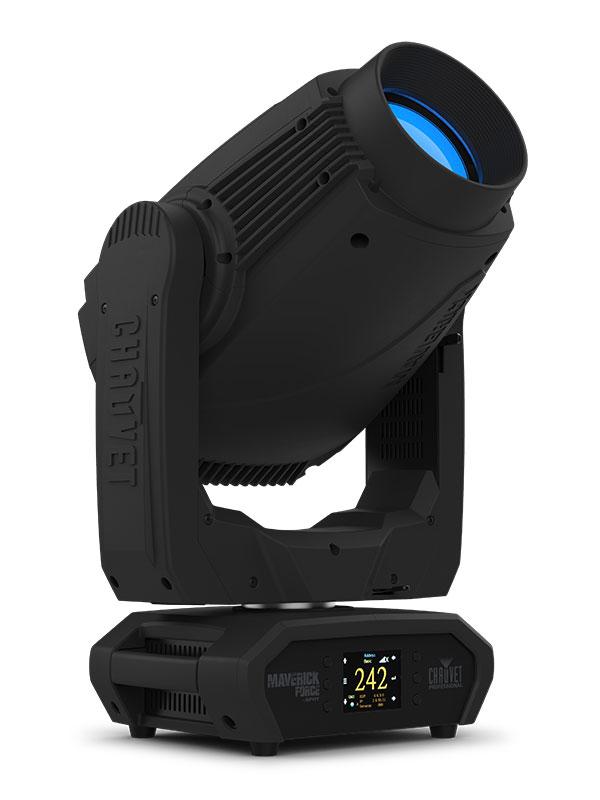

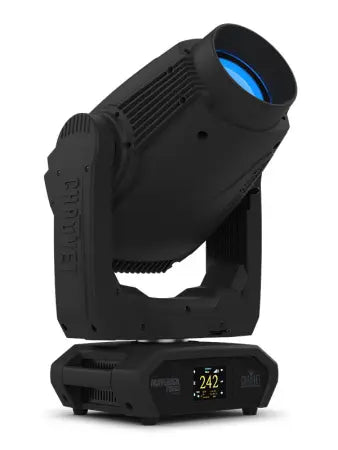

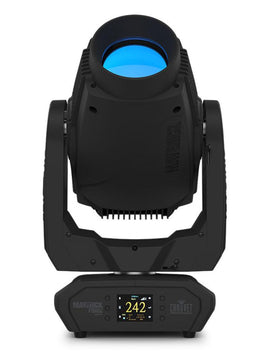

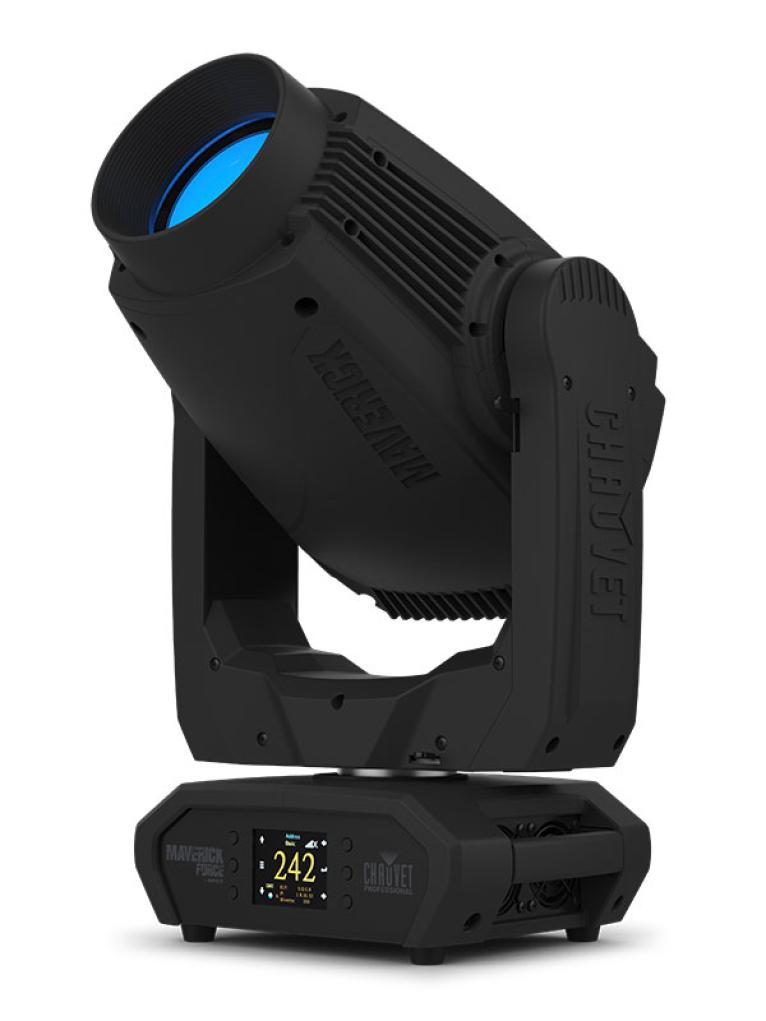

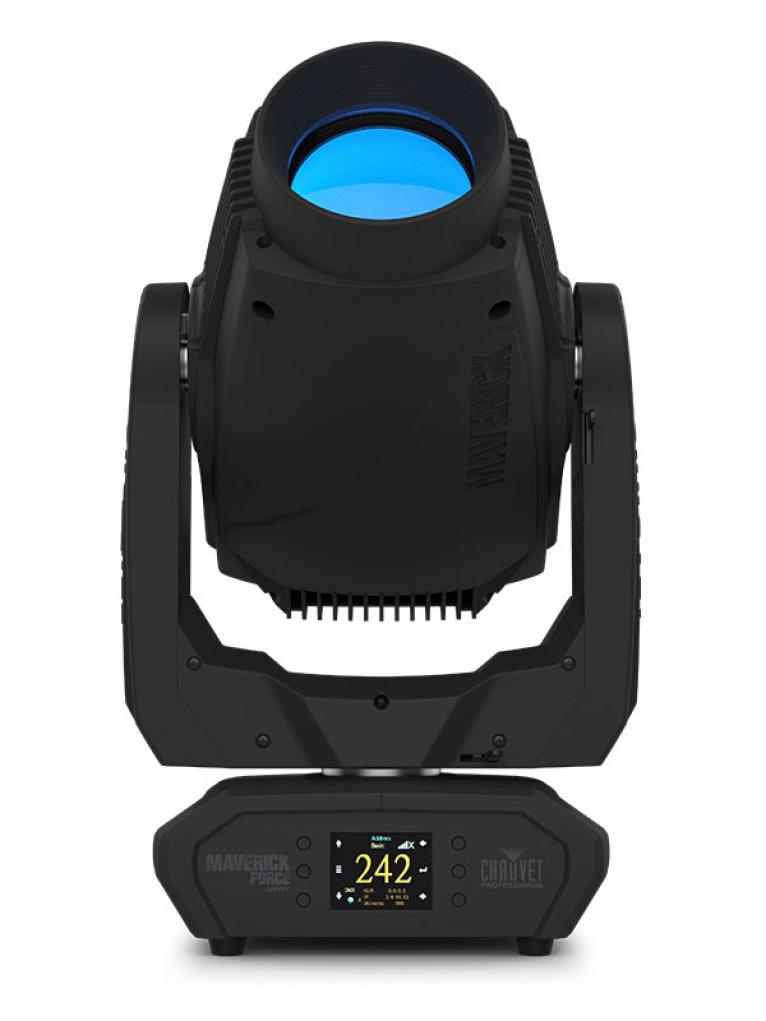

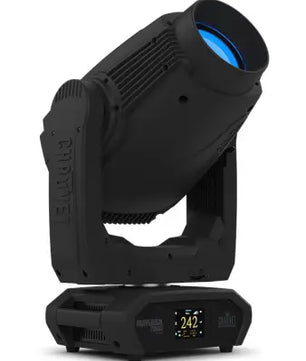

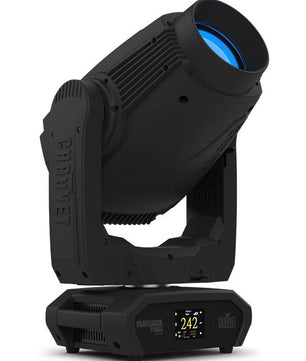

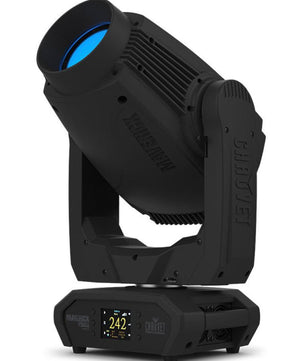

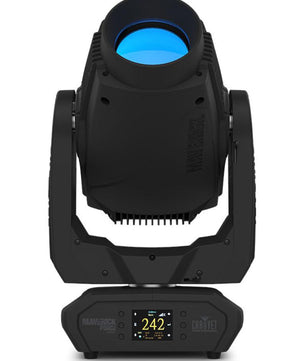

Maverick Force S Spot is ideal for small to medium multi-faceted projects in need of seamless color-mixing, advanced optics, and control options in a lightweight frame, well under 50 lbs. The compact unit features a smart optical system that maximizes the output of 14,000 lumens and provides high-quality color-mixing with a CTB filter. An 8-slot color wheel is also added with split-color combinations in mind. Maverick Force S features a speedy effects engine that includes motorized iris, frost, focus, a 5-facet prism, and wide zoom ranging from 4° to 43°. Additionally, custom gobos created in collaboration with leading designers can be stacked on top of one another for dynamic effects. That is a lot packed in a small frame standing just over 2 ft tall. Control as you see fit with DMX, sACN, Art-Net or W-DMX.
Features:
Fully featured, compact and lightweight 350 W LED yoke spot fixture including CMY color mixing, a color wheel, zoom optics, and two gobo wheels, one rotating, and one static
16-bit dimming of master dimmer for smooth control of fades
Variable CMY color mixing system to create a wide pallet of colors
DMX, WDMX, sACN, and Art-Net for full flexibility of control options
RDM Enabled for remote addressing and trouble shooting
3.8° to 43.4° zoom range for variable beam sizes
Iris, 5-facet prism, and frost for beam control
True 1 compatible power input
Three setup menu presets and preset sync for cross loading to multiple like fixtures for easy shop setup
USB slot for software uploads
Battery backup display with auto-rotate depending on fixture orientation
Specifications:
OPTICAL
Light Source: 1 LED (CW) 350 W, (2.7 A), 8400 K, 50,000 hours life expectancy
Color Temperature (at full): 6858 K
CRI: 68.6
CRI with CRI filter: 89.6
Front Lens Diameter: 119 mm
Beam Angle: 3.8° to 36.5°
Field Angle: 4.8° to 40.4°
Cutoff Angle: 5.1° to 43.4°
Zoom Range: 3.8° to 43.4°
Lumens - Source: 20,000
Lumens – Output: 14,407
Illuminance (3.8°): 62,004 lux @ 5 m
Illuminance (43.1°): 1,745 lux @ 5 m
Selectable PWM: 600 Hz, 1200 Hz, 4000 Hz, 6000 Hz, 15000 Hz
DYNAMIC EFFECTS
Pan and Tilt: 540°/270°
Pan and Tilt Ranges: 540°, 360°, 180° pan/270°, 180°, 90° tilt
Colors: 7 (including CRI and CTB filters) + white, split colors, continuous scroll at variable speeds
Colors: CMY Wheels
Gobos (1): 7 + open (glass), rotating, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds
Gobos (2): 9 + open (metal), static continuous scroll at variable speeds
Gobo Size (1): Gobo Wheel 1 (rotating): 25.5 mm (outside), 17 mm (image), 1.1 mm (max. thickness)
Dimmer: Electronic
Shutter/Strobe: Electronic
Zoom: Motorized
Focus: Motorized
Frost: Motorized
Iris: Motorized
Prism: 5 Facets, motorized, rotating
Strobe Rate: 0 to 20 Hz
Move-in-Black: Yes
Dim Curves: 4

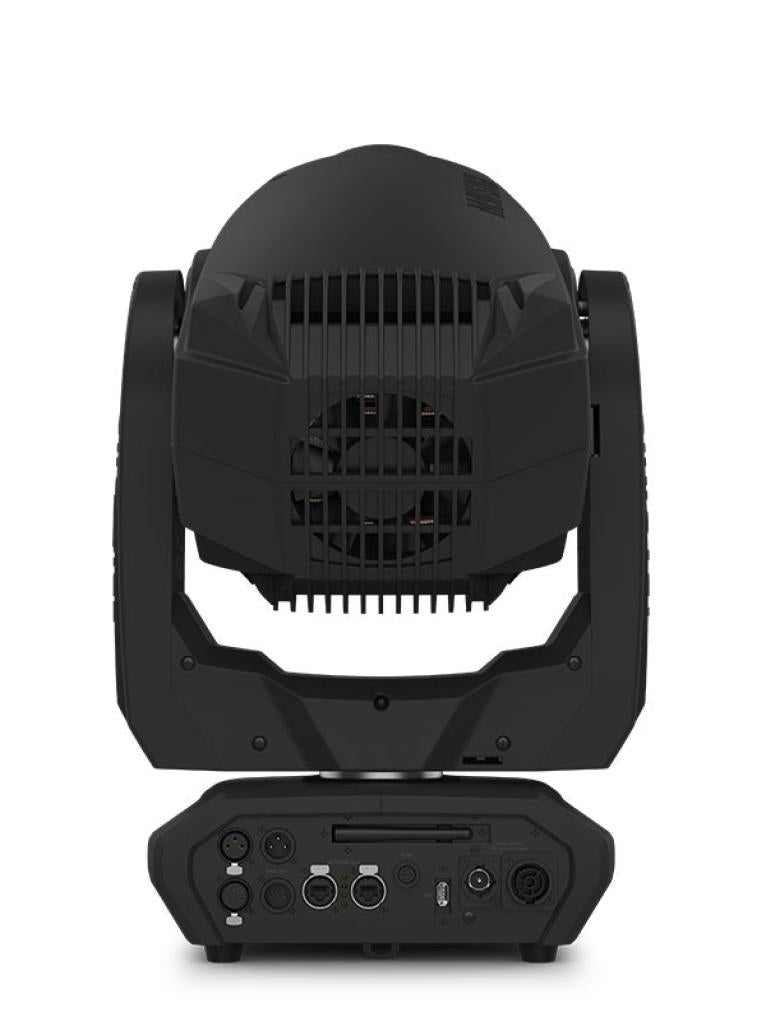

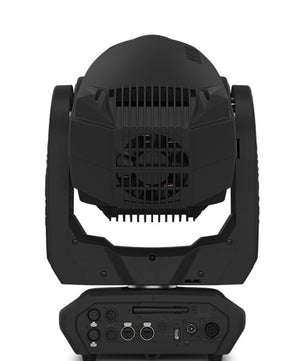

CONNECTIONS
Power Connection: Edison plug to Seetronic Powerkon IP65
Power Input: Seetronic Powerkon IP65
Data Connectors: 3-pin and 5-pin XLR, Amphenol XLR Net RJ45 Connectors in/out
Cable Length (power): 5 ft (1.5 m)
CONTROL
Control Protocol: Art-Net, sACN, DMX, RDM, W-DMX
DMX Channels: 22 or 29
Art-Net Channels: 22 or 29
Modes/Personalities: 2 personalities (22, 29)
ELECTRICAL
Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power Linking: 2 units @ 100 V; 2 units @ 120 V; 5 units @ 208 V; 5 units @ 230 V; 5 units @ 240 V
Power and Current: 554 W, 5.54 A @ 100 V, 60 Hz[6.0 A in-rush]
Power and Current: 542 W, 4.53 A @ 120 V, 60 Hz[7.0 A in-rush]
Power and Current: 522 W, 2.58 A @ 208 V, 60 Hz[15.0 A in-rush]
Power and Current: 521 W, 2.33 A @ 230 V, 50 Hz[15.0 A in-rush]
Power and Current: 521 W, 2.26 A @ 240 V, 50 Hz[15.0 A in-rush]
Power and Current (resting): 77 W, 0.904 A @ 100 V, 60 Hz
Power and Current (resting): 77 W, 0.701 A @ 120 V, 60 Hz
Power and Current (resting): 76 W, 0.418 A @ 208 V, 60 Hz
Power and Current (resting): 73 W, 0.375 A @ 230 V, 50 Hz
Power and Current (resting): 74 W, 0.368 A @ 240 V, 50 Hz
CERTIFICATIONS / QUALIFICATIONS
CE, MET, FCC
IP Rating: IP20, dry location
Noise Level (ambient): 37.5 dB level @ 1 m
Noise Level (Static - Full): 40.9 dB level @ 1 m
Noise Level (Static - Eco): 37.9 dB level @ 1 m
Noise Level (Static - Auto): 38.4 dB level @ 1 m
Noise Level (Max): 45.5 dB level @ 1 m
Temperature (startup): -4 °F to 113 °F (-20 °C to 45 °C)
Temperature (operating): -22 °F to 113 °F (-30 °C to 45 °C)
WHAT'S INCLUDED
Maverick Force S Spot
Seetronic Powerkon IP65 power cord
2 Omega brackets with mounting hardware
Quick Reference Guide
OPTIONAL ACCESSORIES
Professional Clamps: CTC-50HC, CTC-50HCN
Safety Cable: SC-07
DMX cables
Ethercon extension cables
IP Rated Seetronic® Powerkon Extensions
Flight Case
UPLOAD_08 software uploader
