Chauvet Pro EPIX Flex 20

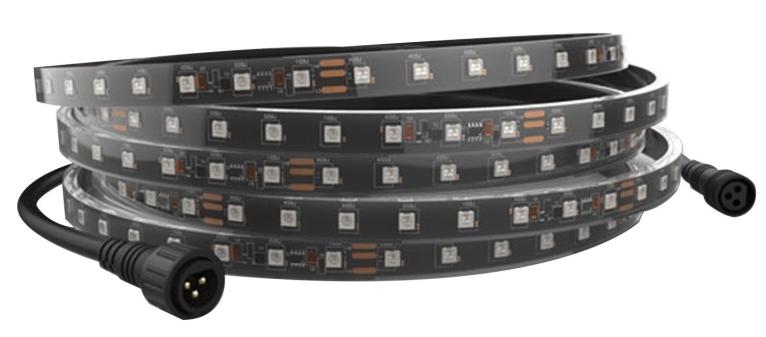

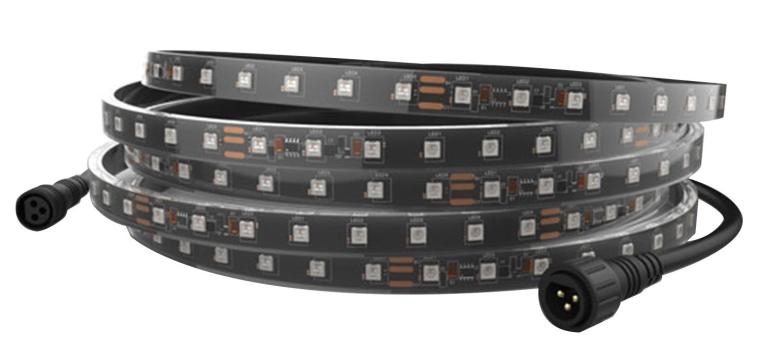

ÉPIX Flex 20 is a durable, outdoor-rated LED flexible strip that extends 5 meters and can be cut and prolonged without compromising its IP67 rating. This allows it to line even the most complicated spaces. 240 individually controllable RGB LEDs allow for a variety of color-changing options that can be dimmed and brightened as you see fit, and pixel-mapped for showing video and/or motion graphics. The unit’s reliable plug-and-play 24 V system allows for 75ft of extension between the first ÉPIX Flex 20 and the ÉPIX Flex Drive, which is required for operation and controls up to eight ÉPIX Flex 20 strips. Expect versatile control options including DMX, Art- Net and sACN (streaming ACN) and reduced programming time by tapping into alternate personalities of 17 channel or the pixel personality 720 channels) for use with video servers. 10 mounting brackets are included to ease use in a variety of permanent installations like nightclub or architectural entertainment venues.

AT A GLANCE
Outdoor pixel-mapping LED strip that is flexible and can be used in various applications
Includes 10 sets of mounting brackets and screws for permanent installations
Reduce programming time and increase application by using the alternate personalities of 17 or 34 channel, or use the pixel personality for use with video servers
Versatile control options include DMX, Art-Net and sACN (streaming ACN) to support the touring, rental, and installation markets
RDM supported for remote configuration
Sold in 5 meter rolls, each roll can be cut to length to accommodate custom installations
ÉPIX Flex Drive required for operation

SPECIFICATIONS
OPTICAL
Light Source: 240 LEDs (tri-color RGB) SMD 50,000 hours life expectancy
Lumens: 140 lm/ft
Viewing Angle: 160°
Pixels: 240 x 1
Pixel Pitch: 20 mm

CONSTRUCTION / PHYSICAL
Dimensions: 196.85 x 0.55 x 0.2 in (5,000 x 14 x 5 mm)
Weight: 1.2 lb (0.6 kg)
Exterior Color: Clear
Housing Material: high temperature silicone with UV protection

CONNECTIONS
Data Connectors: 3-pin IP65 FLEX cable
Physical Linking: 2 ÉPIX Flex 20 (per output) (4 total) (without ÉPIX Flex Boost); 2 additional ÉPIX Flex 20 with ÉPIX Flex Boost (per output) (8 total)

CONTROL
Control Protocol: Art-Net, sACN, DMX
DMX Channels: 17, 34 or PIXEL
Art-Net Channels: 17, 34 or PIXEL

ELECTRICAL
Power and Current: 79 W, 0.653 A @ 120 V, 60 Hz
Power and Current: 93 W, 0.450 A @ 208 V, 60 Hz
Power and Current: 95 W, 0.417 A @ 230 V, 50 Hz

CERTIFICATIONS / QUALIFICATIONS
CE, MET
IP Rating: IP67, temporary outdoor/wet use
Temperature (ambient): -4 °F to 113 °F (-20 °C to 45 °C)

WHAT'S INCLUDED
ÉPIX Flex 20
Installation kit with 10 bracket sets
Termination kit with end cap and silicone glue

REQUIRED ACCESSORIES
Controller (required): ÉPIX Flex Drive

OPTIONAL ACCESSORIES
ArKaos Media Master Express + KN software
Clamps
DMX Cables
