Chauvet Pro COLORado PXL Bar 16 | IP65 Motorized Tilting Pixel LED Batten with Zoom

Powerful Outdoor-Ready LED Batten for Versatile Lighting Applications

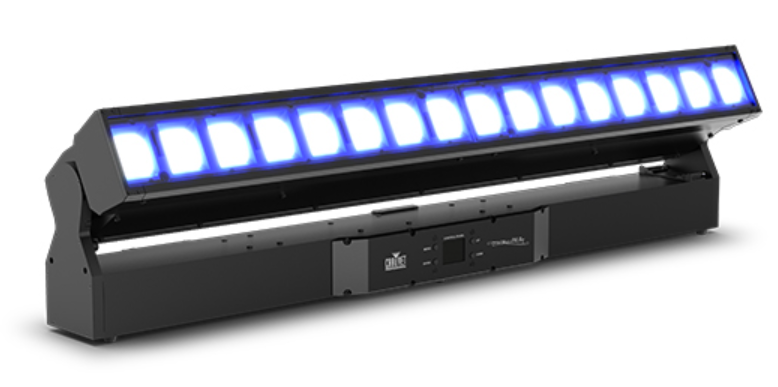

The Chauvet Pro COLORado PXL Bar 16 is an IP65-rated motorized tilting batten designed for both outdoor and indoor applications. It features 16 powerful 45W RGBW LEDs, allowing for precise color mixing and a zoom range of 5.8° to 47.9°, providing a wide array of pixel-mappable designs. With its seamless edge-to-edge mounting, easy-to-use Omega brackets, and multiple control options including DMX, Art-Net, and Kling-Net, this fixture offers endless creative possibilities for lighting professionals. The COLORado PXL Bar 16 is perfect for a variety of lighting effects, from tight beams to wide washes, making it ideal for stages, events, and architectural applications.

Chauvet Pro COLORado PXL Bar 16 Competitive Differences

• Motorized 200° tilt for precise positioning.
• Fully pixel-mappable LEDs with built-in effects, virtual gobos, and movement macros.
• Dual-zone control with separate foreground and background color control.
• IP65-rated for reliable outdoor use, even in wet conditions.
• Supports DMX, Art-Net, Kling-Net, sACN, and RDM protocols for versatile control.
• Quick and easy installation with slotted Omega brackets.
• TRUE1 power input/output and IP65-rated 5-pin DMX and TCP/IP connections.

Chauvet Pro COLORado PXL Bar 16 Description

The Chauvet Pro COLORado PXL Bar 16 is designed for flexibility and durability. Featuring 16 quad-color RGBW LEDs, this fixture offers a broad zoom range from 5.8° to 47.9°, delivering both tight beams and expansive washes. Its pixel-mappable capability allows lighting designers to create complex effects with ease, while the dual-zone control provides enhanced versatility by enabling foreground and background color control. Its IP65 rating makes it suitable for outdoor environments, ensuring reliable performance even in harsh weather conditions. The fixture also includes motorized zoom and tilt, enabling smooth and quiet operation during performances. This fixture is ideal for stages, events, and installations requiring dynamic and varied lighting effects. Its slotted Omega brackets make it simple to mount on trusses, and the unit can also be positioned on the ground for creative lighting angles. With its rugged construction and advanced features, the COLORado PXL Bar 16 is a professional-grade solution for demanding lighting applications.

COLORado PXL Bar 16 Features

• 16 quad-color (RGBW) 45 W LEDs.
• Motorized zoom range from 5.8° to 47.9°.
• Dual-zone control for separate foreground and background color control.
• Pixel-mappable with built-in virtual gobos and movement macros.
• Quiet and quick 200° motorized tilt.
• Supports DMX, Art-Net, Kling-Net, and RDM control protocols.
• TRUE1 compatible power input/output ports.
• IP65-rated 5-pin DMX and TCP/IP connections.
• Slotted Omega brackets for easy installation.

COLORado PXL Bar 16 Specifications

• Light Source: 16 LEDs (quad-color RGBW), 45 W, 50,000 hours life expectancy.
• Zoom Range: 5.8° to 47.9°.
• Beam Angle: 5.8° to 30.4°.
• Field Angle: 8.9° to 42.2°.
• Tilt: 200° motorized tilt.
• Power Input: 100 to 240 VAC, 50/60 Hz (auto-ranging).
• Power and Current: 790 W, 6.60 A @ 120 V, 60 Hz.
• Dimensions: 39.37 x 5.47 x 10.75 in (1000 x 139 x 273 mm).
• Weight: 45.6 lb (20.7 kg).
• IP Rating: IP65 for outdoor/wet use.

What's In The Box

• COLORado PXL Bar 16.
• Seetronic Powerkon IP65 cable.
• 2 Omega brackets with mounting hardware.
