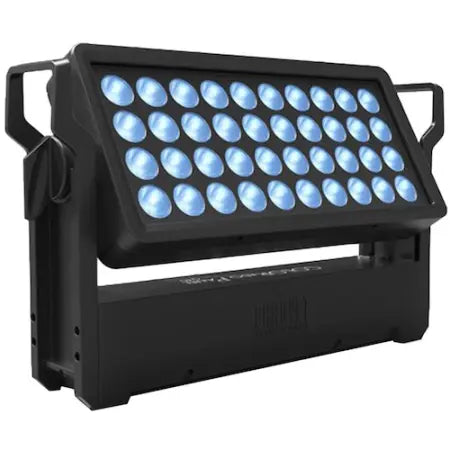

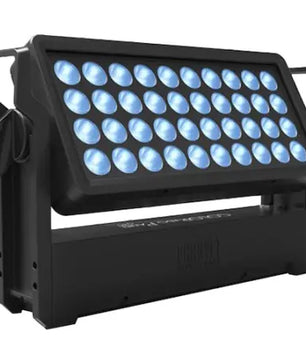

Chauvet Pro COLORado Panel Q40

COLORado Panel Q40 is a powerful IP65-rated rectangular wash light that features 40 15 W RGBW LEDs capable of flawless edge-to-edge color mixing. This rugged indoor/outdoor unit can be manipulated through adjustable beam angles and includes a magnetic flood filter to produce a wider, but still even area wash. Its outdoor rated power and data connectors allows for easy connections without propriety cabling. Control it as you see fit with W-DMX and RDM.

Features:

Rugged RGBW LED wash for events where indoor/outdoor flexibility is needed.
Superior edge-to-edge color mixing.
At home in any weather conditions with IP rated power and DMX connections.
Included magnetic flood filter for wide area wash.
Adjustable PWM (Pulse Width Modulation) to avoid flickering on camera.
WDMX & RDM (Remote Device Management) for added flexibility.
Selectable, smooth dimming curves for eliminate flicker and choppiness in fades.
Easy to read OLED display with password protection and touchscreen interface.
Advanced optics provide exceptional color mixing and high efficiency.
Included omega bracket for quick and easy truss/pipe mounting.

Specifications:

Optical:
Light Source: 40 LEDs (quad-color RGBW) 15 W, (970 mA), 50,000 hours life expectancy
Color Temperature (range): 2800 to 10000 K
Installed Optics: 15°
Beam Angle (w/o filter): 15°
Beam Angle (w/filter): 24°
Field Angle (w/o filter): 28°
Field Angle (w/ filter): 48°
Lumens: 16,589
Lumens (w/filter): 14,294
Illuminance (w/o filter): 9,480 lux @ 5 m
Illuminance (w/ filter): 3,045 lux @ 5 m
Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 25,000 Hz

Dynamic Effects:
Tilt Ranges: 0° to 150°
Dimmer: Electronic
Shutter/Strobe: Electronic
Strobe Rate: 0 to 27 Hz
Standalone Color Mixing: Yes
Color Temperature Presets: Yes
Dim Modes: 4
Built-in Automated Programs: Yes

Construction / Physical:
Dimensions: 20.27 x 7.71 x 11.96 in (515 x 196 x 304 mm)
Weight: 28.2 lb (12.8 kg)
Exterior Color: Black
Housing Material: Aluminum alloy, Aluminum die-cast
Filter Size: 16.75 x 8 in (425.45 x 203.2 mm)

Connections:
Power Connection: Edison (Local) plug to Seetronic Powerkon IP65
Power Input: Seetronic Powerkon IP65
Power Output: Seetronic Powerkon IP65
Data Connectors: 5-pin IP65 XLR
Cable Length (power): 5 ft (1.5 m)

Control:
Control Protocol: DMX, W-DMX, RDM
DMX Channels: 4, 6, 10, 16 or 22
Modes/Personalities: 5 personalities (4ch, 6ch, 10ch, 16ch, 22ch)

Electrical:
Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power Linking: 2 units @ 120 V; 4 units @ 208 V; 5 units @ 230 V
Power and Current: 570 W, 4.69 A @ 120 V, 60 Hz
Power and Current: 560 W, 2.71 A @ 208 V, 60 Hz
Power and Current: 560 W, 2.44 A @ 230 V, 50 Hz

Certifications / Qualifications:
CE, MET
IP Rating: IP65, outdoor/wet, with pressure equalizing M12 GORE valve
Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)
