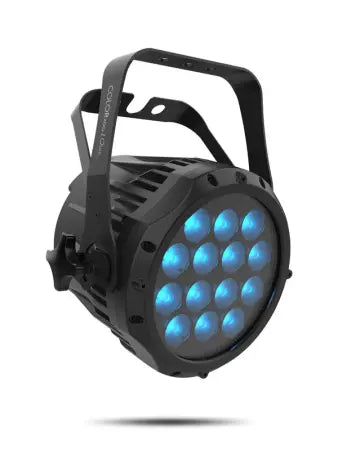

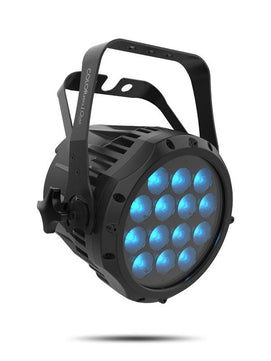

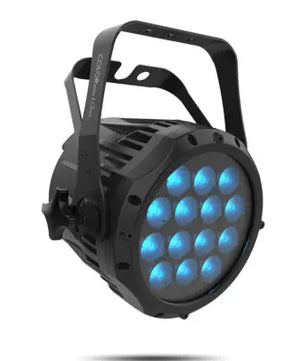

Chauvet Pro COLORado 1-Quad

COLORado 1-Quad Zoom is an excellent indoor/outdoor wash light with seven Osram RGBW LEDs delivering big time power from a compact, yet solid housing. It maintains its IP65 rating with IP rated DMX cables, but standard 5-pin XLR DMX cables work perfectly for indoor use. A 13° to 45° zoom gives you ample control over the beam, and selectable dimming curves facilitate the integration of the fixtures into an existing rig. Center pixel control provides even more dynamic effects with full 16-bit dimming. Outdoor rated power and data connectors allow for easy connections without proprietary cabling.

AT A GLANCE
Built-in auto and custom programs recalled via DMX and Master/Slave
RGBW color mixing via DMX or manually
Zoomable, with a wide zoom range for design versatility
Tough road-ready construction
Individual control of outer pixel ring and center pixel
Selectable, smooth dimming curves for programming versatility
16-bit dimming of individual colors as well as master dimmer
All environment operation with IP rated power and DMX connections
5-pin DMX input/output connections

SPECIFICATIONS
OPTICAL
Light Source: 14 LEDs (quad-color RGBW) 15 W, (1 A), 50,000 hours life expectancy
Beam Angle: 7° to 32°
Field Angle: 13° to 45°
Zoom Angle: 13° to 45°
Illuminance (13°): 3,280 lux @ 5 m
Illuminance (45°): 296 lux @ 5 m
PWM Frequency: 1,200 Hz

DYNAMIC EFFECTS
Dimmer: Electronic
Zoom: Motorized
Strobe Rate: 0 to 20 Hz
Standalone Color Mixing: Yes
Color Temperature Presets: Yes
Dim Modes: 5
Dim Curves: 4
Built-in Automated Programs: Yes
Customizable Programs: Yes
Recall Custom Programs: Yes

CONSTRUCTION / PHYSICAL
Dimensions: 14.07 x 9.3 x 7.48 in (357 x 236 x 190 mm)
Weight: 15.4 lb (7 kg)
Exterior Color: Black
Housing Material: Aluminum die-cast
Accessory Holder/Gel Frame Size: 7.5 in (191 mm)

CONNECTIONS
Power Connection: Edison (local) plug to Seetronic Powerkon IP65
Power Input: Seetronic Powerkon IP65
Power Output: Seetronic Powerkon IP65
Data Connectors: 5-pin XLR
Cable Length (power): 5 ft (1.5 m)

CONTROL
Control Protocol: DMX
DMX Channels: 3, 4, 5, 6, 7, 10, 12, 17 or 25
Modes/Personalities: 12 personalities (AR1D, AR2Z, ARC1, ARC2, ARC2D, ARC2S, C1Q, FULL, HSV, STD.Y, TOUR, TR16)

ELECTRICAL
Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power Linking: 14 units @ 120 V; 23 units @ 208 V; 26 units @ 230 V
Power and Current: 106 W, 0.87 A @ 120 V, 60 Hz
Power and Current: 108 W, 0.52 A @ 208 V, 60 Hz
Power and Current: 110 W, 0.47 A @ 230 V, 50 Hz

CERTIFICATIONS / QUALIFICATIONS
CE, MET
IP Rating: IP65, temporary outdoor/wet use

WHAT'S INCLUDED
COLORado 1-Quad Zoom
Seetronic Powerkon IP65 power cord
Gel frame holder (7.5 in/191 mm accessories)
Gel frame

OPTIONAL ACCESSORIES
Professional Clamps: CTC-50HC, CTC-50HCN
5-pin DMX Cables
Color Blending Filters: DF60X1D, DF20D
