Chauvet Pro Cloud 9

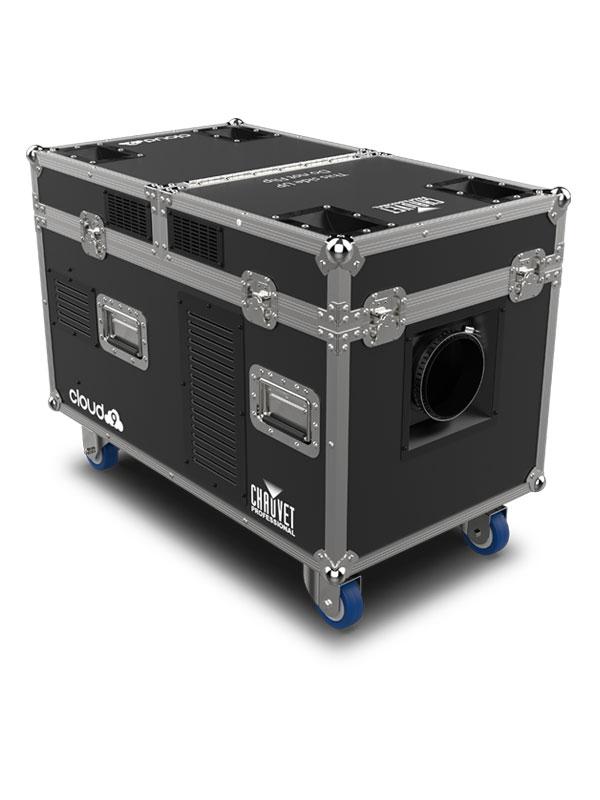

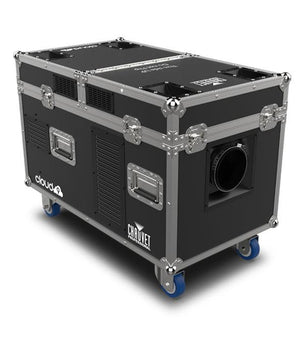

Cloud 9 is an impressive, low-lying fogger that creates thick, cloud-like effects with a high-impact output ideal for use on large-scale stages, theatres, live performances and theme parks. The robust unit has a best in class heat-up time of 4 minutes and no dry ice or CO2 is needed, which means no special licensing/training is required. Because it works without a special coolant or compressor, only water and fog fluid is needed for continuous output. The powerful unit weighs in at 121 lbs and is equipped with several handy transport features such as its road case housing, metal handles and wheels to easily glide across any stage. Control it on the LCD display or via DMX.

AT A GLANCE
Professional fogger gives high-impact low-lying fog effect on stage or in ballrooms
Continuous operation produces fog to cover 3,230 ft2 (300 m2) area
Ultrasonic agitator combines distilled water with fog to produce low-lying fog effect
Ships in rugged flight case with locking casters with hinged top cover to allow for operation even when closed
Control via on board digital display or DMX
Integrated water drain system makes cleanup fast and easy
Use the low-lying fog fluid (LLG) to product the CO2 effect, which lasts for several minutes before dissipating
Use without dry ice or CO2, so no special licensing/training required

SPECIFICATIONS
DYNAMIC EFFECTS
Output: 15,000 cfm
Low Fluid Shutdown: Yes
HDF- Best overall performance for a medium to large coverage area. Fog dissipates after lifting into the air.
PHF- Great dual-purpose effect. Good coverage area. Fog lifts into the air to become haze.

CONSTRUCTION / PHYSICAL
Dimensions: 33.85 x 19.29 x 24.80 in (860 x 490 x 630 mm
Output Nozzle (outer diameter): 4.76 in (121 mm)
Hose Length (fully extended): 8 ft (2.44 m)
Weight: 121.3 lb (55.8 kg)
Exterior Color: Black
Fluid Tank Capacity: 0.92 gal (3.5 l)
Water tank Capacity: 5.3 gal (20 l)
Fluid Consumption: 29 ml/min (0.007 gal/min)
Water Consumption (distilled): 165 ml/min (0.044 gal/min)
Maximum Run Time: 2 hours max runtime @ 100% output

CONNECTIONS
Power Connection: Edison plug to Seetronic Powerkon IP65
Power Input: Seetronic Powerkon IP65 (2x 120 V, 1x 230 V)
Data Connectors: 3- and 5-pin
XLRCable Length (power): 5 ft (1.5 m)

CONTROL
Control Protocol: DMX
DMX Channels: 2
Modes/Personalities: 1 personalities (2)
On-Board Control: Yes

ELECTRICAL
Input Voltage: 120 VAC, 60 Hz or 230 VAC, 50 Hz
Power and Current (input A): 1000 W, 8.36 A @ 120 V, 60 Hz (120 V version)
Power and Current (input B): 1130 W, 9.40 A @ 120 V, 60 Hz (120 V version)
Power and Current: 2,600 W, 11.3 A @ 230 V, 50 Hz (230 V version)
Heat-up Time: 3 min
Breaker Size: 15 A (Input A, 120 V version)
Breaker Size: 20 A (230 V version)

CERTIFICATIONS / QUALIFICATIONS
CEIP Rating: IP20, dry location
Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)

WHAT'S INCLUDED
Cloud 92 Seetronic Powerkon IP65
Directional hose and hose clamp
Overflow polyurethane tubing, 8.5 mm, 3ft (0.9 m)

REQUIRED ACCESSORIES
LLG

OPTIONAL ACCESSORIES
Neutrik powerCON TRUE1 cables
DMX Cables
