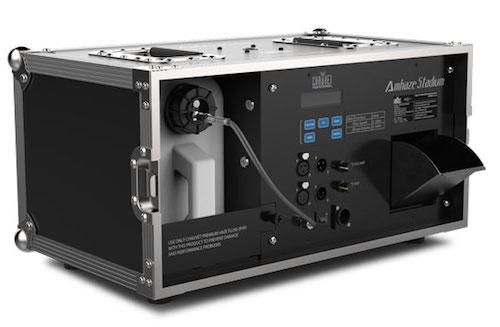

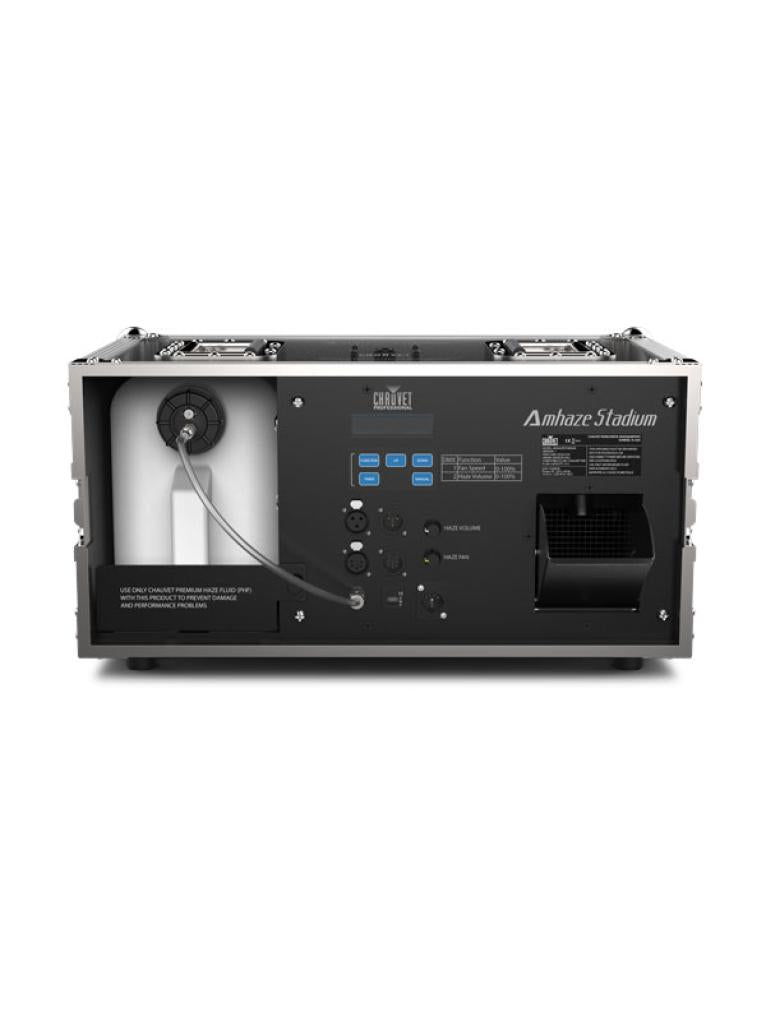

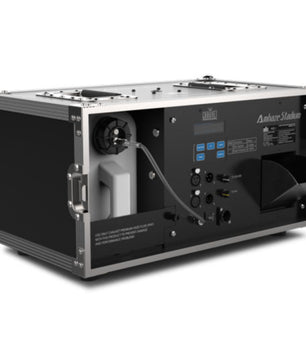

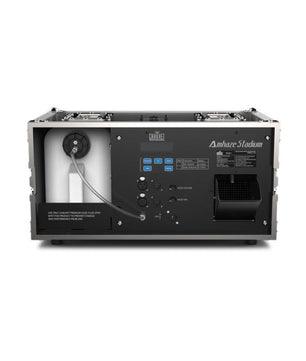

Chauvet Pro AMHAZE Stadium

Amhaze Stadium is a tour-ready professional water-based haze machine ideal for large-scale applications. With an output of 14,000 cfm, the Amhaze Stadium boasts an impressive 30-second heat-up time. It also features a durable, low-profile road case to survive the rigors of touring and production. The output and speed of haze can be easily adjusted via DMX or the LCD screen, and the unit comes equipped with an M12 threaded insert for hanging.

Features:

Professional water-based haze machine
30-sec heat up time nearly eliminates wait time for operation
Adjustable vent louver for directional haze flow
Tour-ready with a rugged road case and M12 threaded rigging insert
Achieve continuous variable haze output and blower speed, adjusted via DMX or manual knobs

Specifications:

Dynamic Effects
Output: 14,000 cfm
Low Fluid Shutdown: No

Construction / Physical
Dimensions: 20.60 in (523.42 mm) x 10.80 in (274.9 mm) x
15.97 (405.7 mm)
Weight: 38.4 lb (17.4 kg)
Exterior Color: Black
Tank Capacity: 1.3 gal (4.92l)
Fluid Consumption: 22 ml/min

Connections
Power Connection: Edison (local) plug to Seetronic
Powerkon IP65
Power Input: Seetronic Powerkon IP65
Data Connectors: 3- and 5-pin XLR
Cable Length (power): 5 ft (1.5 m)

Control
Control Protocol: DMX
DMX Channels: 2
Modes/Personalities: 1 personality
On-Board Control: Yes
Electrical
Input Voltage: 120 VAC, 60 Hz or 230 VAC, 50 Hz
Power and Current: 1,230 W, 10.25 A @ 120 V, 60 Hz
Power and Current: 2,430 W, 10.56 A @ 230 V, 50 Hz
Heat-up Time: 30 sec

Certifications / Qualifications
CE
IP Rating: IP20, dry location

What's Included
Amhaze Stadium
Seetronic Powerkon IP65 power cord

Optional Accessories
Clamps
Neutrik® powerCON® cables
DMX Cables
Required Accessories
Compatible Mounting Options: M12 Bolt/Clamp
