LED wash light with chase, strobe, and blinder effects

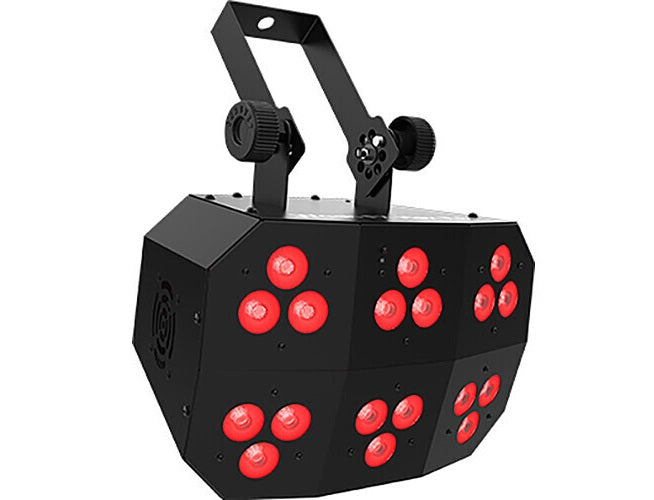

The Chauvet DJ Wash FX Hex ILS is a dynamic LED fixture designed for DJs, performers, and venues looking for vibrant color mixing and versatile lighting effects. With its multi-purpose functionality, it delivers chase, blinder, and wash effects powered by Hex-color LEDs for superior color rendering, including natural-looking whites and UV. Perfect for creating immersive lighting displays, this unit also supports ILS and D-Fi USB for wireless control and seamless integration into larger systems.
Chauvet DJ Wash FX Hex ILS Competitive Differences
- Multi-functional: operates as a chase effect, blinder, or wash light
- Six individually controlled chasing zones for eye-catching effects
- Hex-color LEDs (RGBAW+UV) provide a full spectrum of vivid colors
- ILS compatibility for synchronized shows across ILS-enabled gear
- Wireless control options with D-Fi USB and IRC-6 remote compatibility
- Advanced Master/Slave functionality for mirrored effects
- Multiple control options: standalone, DMX (3, 6, 11, or 40 channels), IR remote, or Master/Slave
Chauvet DJ Wash FX Hex ILS Description
The Wash FX Hex ILS is built for high-energy environments where lighting flexibility and visual impact are essential. With 18 powerful 10-watt Hex LEDs (RGBAW+UV), it creates brilliant colors and effects that transform any space. The six-zone chase feature allows for eye-candy movement, while its broad beam and field angles provide excellent wash coverage.
Thanks to ILS (Integrated Lighting System) support, this fixture can be effortlessly synced with other ILS-compatible devices, making it easy to coordinate complex light shows without complex programming. Add the optional D-Fi USB for full wireless DMX control or use the IRC-6 remote for simple triggering.
Compact and lightweight, the Wash FX Hex ILS is easy to transport and set up, especially when paired with the CHS-40 VIP Gear Bag. It's the ideal solution for mobile DJs, club installs, or stage setups needing fast, impactful lighting.
Wash FX Hex ILS Features
- Multi-purpose LED fixture: chase effect, wash light, and blinder
- Hex-color LEDs (RGBAW+UV) for vibrant colors and true whites
- 6-zone chasing effects for dynamic movement
- ILS compatible for synchronized multi-fixture control
- D-Fi USB port for wireless DMX and Master/Slave control
- Standalone operation or DMX control (3, 6, 11, or 40 channels)
- Compatible with IRC-6 wireless remote
- Fits in CHS-40 VIP Gear Bag for easy transport
Wash FX Hex ILS Specifications
- DMX Channels: 3, 6, 11, or 40
- DMX Connectors: 3-pin XLR
- Light Source: 18 LEDs (RGBAW+UV), 10 W each
- LED Lifespan: 50,000 hours
- Strobe Rate: 0 to 20 Hz
- Beam Angle: 44°
- Field Angle: 77°
- Illuminance: 3,204 lux @ 2 m (6.6 ft)
- Power Linking: 6 units @ 120 V; 11 units @ 230 V
- Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
- Power and Current: 160 W, 1.3 A @ 120 V, 60 Hz
- Approvals: CE, RoHS, UKCA
- UV Wavelength: 395 to 405 nm
- Product Dimensions: 11 x 9.5 x 7.1 in (280 x 240 x 180 mm)
- Product Weight: 6.8 lbs (3.1 kg)
What's In The Box
- Wash FX Hex ILS fixture
- Power cable
- Quick Reference Guide
