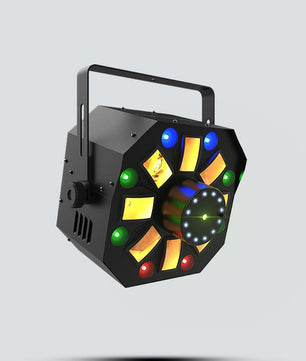

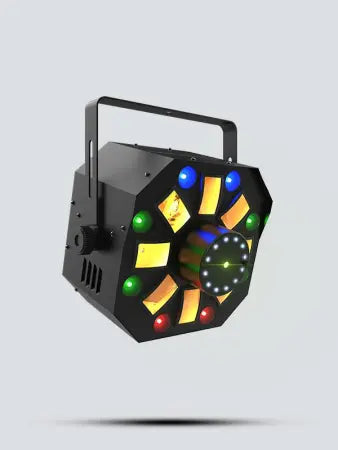

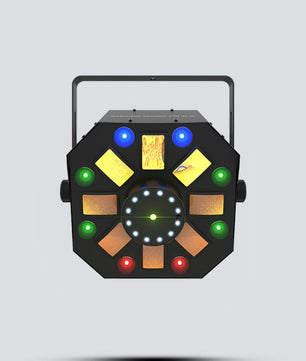

Chauvet DJ Swarm Wash FX ILS | 4-in-1 LED Light
The Chauvet DJ Swarm Wash FX ILS is a dynamic 4-in-1 LED light that combines an RGBAW rotating derby, RGB+UV wash, red/green laser, and a ring of white SMD strobes. This versatile fixture is perfect for creating stunning lighting effects at any event.
Key Features
- 4-in-1 LED light: RGBAW derby, RGB+UV wash, red/green laser, white strobe
- ILS compatibility for coordinated light shows
- D-Fi USB compatibility for wireless control
- Access built-in automated programs via IRC-6 remote, Master/Slave, or DMX
- Red and green laser beams project thousands of beams for maximum coverage
- Power linking saves time running extension cords
Competitive Differences
- Combines multiple lighting effects in one fixture
- Wireless control with D-Fi USB compatibility
- Comprehensive coverage with red and green lasers
Full Description
The Chauvet DJ Swarm Wash FX ILS is designed to deliver impressive lighting effects with its 4-in-1 LED technology. The fixture includes an RGBAW rotating derby, RGB+UV wash, red/green laser, and white SMD strobe, making it ideal for diverse lighting setups. Its ILS compatibility ensures seamless integration with other ILS-enabled fixtures for synchronized shows. The D-Fi USB compatibility allows for wireless control, while built-in automated programs can be accessed via the IRC-6 remote, Master/Slave, or DMX. The powerful laser beams provide extensive coverage, and power linking simplifies setup by reducing the need for multiple extension cords.
Features
- 4-in-1 LED light: RGBAW derby, RGB+UV wash, red/green laser, white strobe
- ILS compatibility for coordinated light shows
- D-Fi USB compatibility for wireless control
- Access built-in automated programs via IRC-6 remote, Master/Slave, or DMX
- Red and green laser beams project thousands of beams for maximum coverage
- Power linking saves time running extension cords
Specifications
- DMX Channels: 2 or 18
- DMX Connectors: 3-pin XLR
- Light Source:
- (Wash) 8 LEDs (quad-color RGB+UV) 1.5 W, (600 mA), 50,000 hours life expectancy
- (Strobe) 12 LEDs (white) 1 W, (300 mA), 50,000 hours life expectancy
- (Laser) 650 nm/100 mW (red) laser diode, 520 nm/30 mW (green) laser diode
- Strobe Rate: 0 to 20 Hz
- Power Linking: 11 units @ 120 V; 20 units @ 230 V
- Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
- Power and Current: 51 W, 0.7 A @ 120 V, 60 Hz; 50 W, 0.4 A @ 230 V, 50 Hz
- Weight: 9.5 lb (4.3 kg)
- Size: 13.1 x 13 x 9.4 in (335 x 332 x 241 mm)
- Approvals: CE, FDA, RoHS, UKCA
- Optional controllers: IRC-6
- Coverage Angle:
- (Laser) 82°
- (Swarm) 65°
- (Strobe) 71°
- (Wash) 46°
- Classified per EN/IEC 60825-1: 2014
- Complies with FDA performance standards for laser products except for deviations pursuant to Laser Notice No. 56, dated May 8, 2019
What's in the Box
- Swarm Wash FX ILS
- Power cord
- User Manual
Accessories
- IRC-6 Remote
- D-Fi USB for wireless control
