Chauvet DJ Swarm 5 FX ILS

Swarm 5 FX ILS

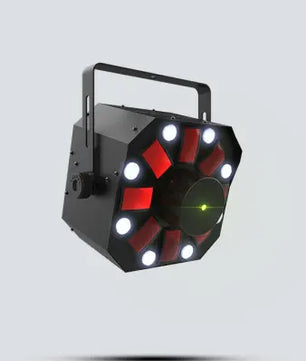

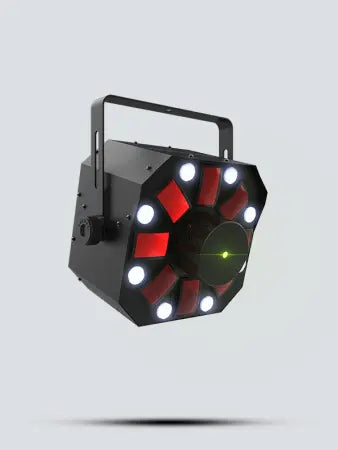

Your parties deserve the excitement of Swarm 5 FX ILS. This 3-in-1 LED light that includes an RGBAW rotating derby, red/green laser, and white strobe effect and compatibility with the cutting edge Integrated Lighting System (ILS) that makes creating coordinated light shows across different fixture types easy. Swarm 5 FX ILS also features D-Fi USB compatibility for wireless Master/Slave or DMX control. Flexibility is even greater with automated and sound-activated programs, or Master/Slave and DMX modes and separate color and program control.

3-in-1 LED light that includes an RGBAW rotating derby, red/green laser, and white strobe effect

ILS compatibility for use in the ILS ecosystem

D-Fi USB compatibility for wireless Master/Slave or DMX control

Laser projects thousands of red and green laser beams

Operation allows for separate color and program control

Increase control options using automated and sound-activated programs, or Master/Slave and DMX modes

Save time running cables and extension cords by power linking multiple units

Fits best inside the CHS-40 VIP gear bag

DMX Channels: 9
DMX Connectors: 3-pin XLR
Light Source: (Swarm): 5 LEDs (1 red, 1 green, 1 blue, 1 amber, 1 white) 3 W, (300 mA), 50,000 hours life expectancy
(strobe): 8 LEDs (white) 1 W, (300 mA), 50,000 hours life expectancy
(laser): 520 nm/30 mW (green) laser diode, 650 nm/100 mW (red) laser diode
Strobe Rate: 0 to 20 Hz
Beam Angle: (strobe): 17°
Field Angle: (strobe): 35°
Coverage Angle: (laser): 100°
(Swarm): 65°
Illuminance: (strobe): 823 lux @ 2 m
Power Linking: 15 units @ 120 V; 26 units @ 230 V
Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power and Current: 62 W, 0.5 A @ 120 V, 60 Hz
62 W, 0.3 A @ 230 V, 50 Hz

Weight: 9.8 lb (4.5 kg)
Size: 9.75 x 11.7 x 12.2 in (248 x 298 x 310 mm)

Approvals: CE, FDA, RoHS, UKCA
Classified per EN/IEC 60825-
Complies with FDA performance standards for laser products except for deviations pursuant to Laser Notice
