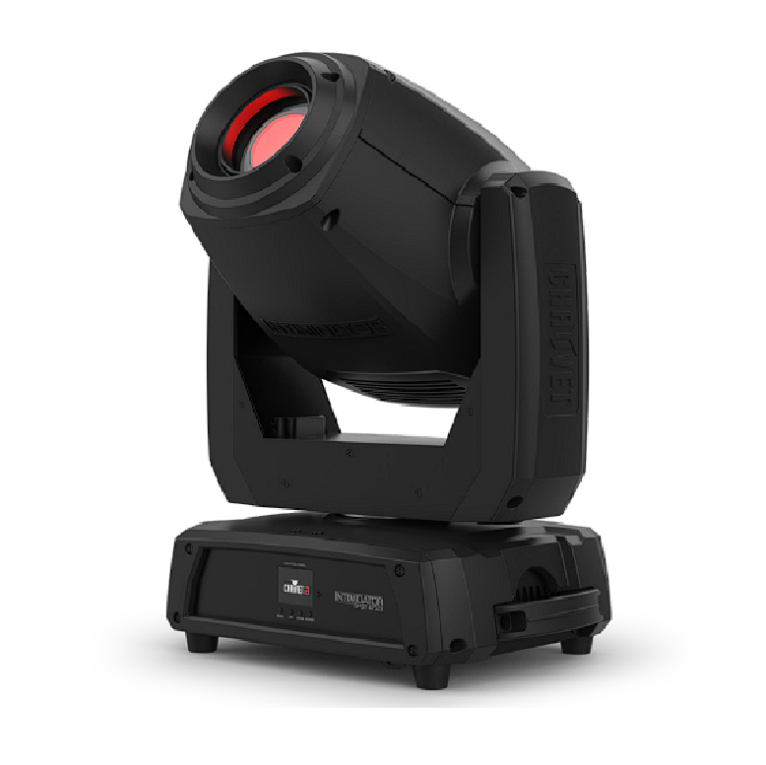

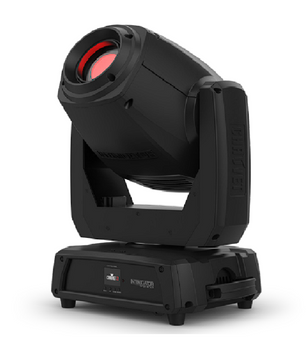

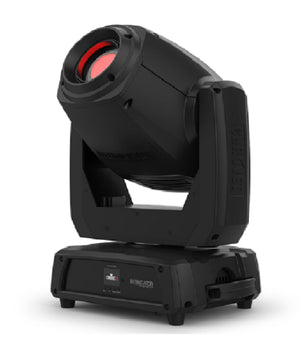

Take your lighting rig to the next level with the feature-packed Chauvet Intimidator Spot 475ZX. This 250-watt fixture features dual rotating prisms that yield captivating split beams and impressive coverage. A motorized zoom function lets you adjust for long- or short-throw situations, while a motorized focus projects crisp gobos from any distance. With the Intimidator Spot 475ZX's revolutionary Totem mode, you can be sure that your beam stays on the spot you want. Set, save, and recall 1 scene manually, directly from the fullcolor LCD display. Link up to four fixtures to create eye-grabbing, synchronized shows in automated and sound-active mode. In addition, the Intimidator Spot 475ZX features PowerCON-compatible power connections for power linking — a feature DJs and lighting designers here at KPODJ really appreciate.
FEATURES:
Compact moving head designed for large events
Onboard USB-C port allows for quick software updates
Built-in RF receiver for wireless control using the RFC or
RFC-XL optional remotes
New home position allows for smoother programming
Dual rotating prisms split the beam for great effects and cover a
larger area
Motorized zoom for short or long throw applications
¼-turn hanging bracket allows for single or dual clamp
mounting options
Project crisp gobos from nearly any distance with the motorized
focus
Beams always remain on the dance floor using the built-in,
innovative Totem mode
Set, save, and recall 1 scene manually, directly from the fullcolor LCD display
powerCON®-compatible power input/output connections saves
setup time
SPECIFICATIONS:
DMX Channels: 10 or 16
DMX Connectors: 3 XLR
Pan and Tilt: 540°/270°
Pan and Tilt Ranges: 540°, 360°, 180° pan/270°, 180°, 90° tilt
Colors: 7 + white, split colors, continuous scroll at variable
speeds
Gobos: 7 + open (6 metal + 1 glass), rotating, interchangeable,
indexing, slot-n-lock, continuous scroll at variable speeds
Gobos: 8 + open, indexing, continuous scroll at variable speeds
Gobo Size: 25.7 mm outside, 21 mm image, 1.3 mm max
thickness
Prism: 5-facet linear, bi-directional at variable speeds
Prism: 6-facet round, bi-directional at variable speeds
Light Source: 1 LED (cool white) 250 W, (10 A), 50,000 hours
life expectancy
Strobe Rate: 0 to 20 Hz
Zoom Angle (motorized): 13° to 28°
Illuminance (13°) : 90,979 lux @ 2 m
Illuminance (28°) : 24,565 lux @ 2 m
Illuminance (13°) : 14,557 lux @ 5 m
Illuminance (28°) : 3,930 lux @ 5 m
Lumens : 10,710
Color Temperature: 15,000 K
Power Linking: 3 units @ 120 V; 7 units @ 230 V
Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power and Current: 378 W, 3.4 A @ 120 V, 60 Hz
Power and Current: 372 W, 1.9 A @ 230 V, 50 Hz
Approvals : CE, UKCA, RoHS, MET
Weight: 36.2 lb (16.5 kg)
Size: 14.3 x 10 x 21 in (363 x 250 x 531 mm)
Optional Controllers: RFC, RFC-XL
