Chauvet DJ GigBAR Move + ILS | 5-in-1 Lighting System | Moving Heads, Pars, Derbies & Laser

Chauvet DJ GigBAR Move + ILS | 5-in-1 Lighting System

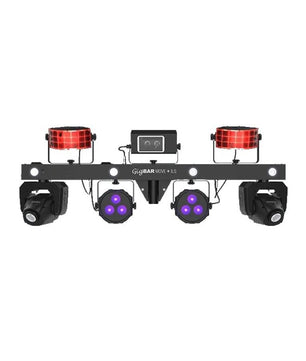

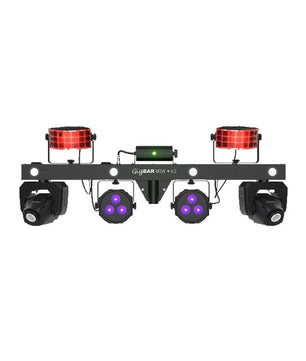

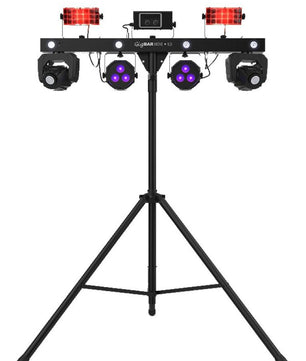

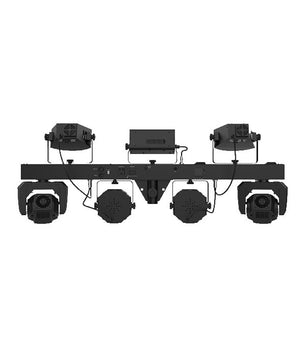

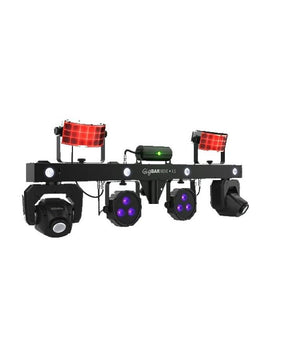

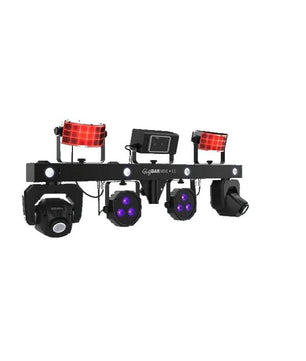

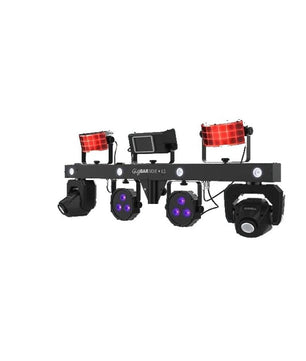

The Chauvet DJ GigBAR Move + ILS is an innovative 5-in-1 lighting system designed for seamless synchronization and versatile lighting effects. This all-in-one system includes moving heads, derbies, washes, a laser, and a strobe effect, all pre-mounted on a single bar.

Key Features

• 5-in-1 lighting system: moving heads, derbies, washes, laser, strobe
• ILS compatibility for advanced light show coordination
• Wireless control with built-in D-Fi transceiver
• RF remote for line-of-sight-free operation
• Totem Mode keeps moving heads focused on the dance floor
• Built-in UV LEDs for blacklight effects
• Easy control via stand-alone, DMX, wireless RF remote, or footswitch

Competitive Differences

• Comprehensive 5-in-1 lighting solution
• ILS ecosystem compatibility
• RF remote control without line of sight

Full Description

The Chauvet DJ GigBAR Move + ILS redefines ease of use and performance in lighting systems. This all-inclusive 5-in-1 setup features moving heads, derbies, washes, a laser, and a strobe effect, all seamlessly integrated on a single bar for quick setup. The ILS compatibility allows for intricate and synchronized light shows across multiple fixtures. The included RF remote and wireless footswitch offer versatile control options without the need for direct line of sight, ensuring smooth and hassle-free operation.

Features

• 5-in-1 lighting system: moving heads, derbies, washes, laser, strobe
• ILS compatibility for coordinated light shows
• Wireless control with built-in D-Fi transceiver
• RF remote triggers built-in shows without line of sight
• Totem Mode keeps moving heads focused on the dance floor
• Full-color LCD display for easy navigation
• Built-in UV LEDs for blacklight effects
• Stand-alone, DMX, wireless RF remote, and footswitch control options

Specifications

• DMX Channels: 3, 29, or 51
• DMX Connectors: 3-pin XLR
• Pan and Tilt: 540°/180°
• Colors (moving head): 9 + open, split colors, continuous scroll at variable speeds
• Gobos (moving head): 9 + open, continuous scroll at variable speeds
• Light Source:
  • Pars: 3 LEDs (hex color RGBAW+UV) 6 W (2 A), 50,000 hours life expectancy
  • Strobe: 4 LEDs (cool white) 5 W (1.2 A), 50,000 hours life expectancy
  • Derby: 8 LEDs (2 red, 2 green, 2 blue, 2 white) 6.5 W (2 A), 50,000 hours life expectancy
  • Moving head: 1 LED (cool white) 32 W, (3 A), 50,000 hours life expectancy
  • Laser: 638 nm/30mW (red) laser diode, 520 nm/20 mW (green) laser diode, 450 nm/ 50 mW (blue) laser diode
• Strobe Rate: 0 to 30 Hz
• Beam Angle:
  • Moving head: 17°
  • Pars: 22°
  • Strobe: 30°
• Field Angle:
  • Pars: 33°
  • Strobe: 62°
• Coverage Angle:
  • Derby: 131°
  • Laser: 93°
• Fits Tripod Size: 1.5 in (37.4 mm)
• Illuminance:
  • Pars: 1,205 lux @ 2 m (per par)
  • Moving head: 5,140 lux @ 2 m (per head)
  • Strobe: 130 lux @ 2 m
• Power Linking: 7 units @ 120 V; 12 units @ 230 V
• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power and Current:
  • 250 W, 3 A @ 120 V, 60 Hz
  • 248 W, 1.8 A @ 230 V, 50 Hz
• Weight (bar only): 31 lbs (14 kg)
• Size: 43 x 5.7 x 17.7 in (1100 x 144 x 449 mm)
• Approvals: CE, UKCA, RoHS, FCC, FDA
• Stand Height: 4.8 ft to 8.3 ft (1.5 to 2.5 m)
• Footswitch Operating Frequency: 433 MHz
• Footswitch Max Unobstructed Distance: 100 ft (30.5 m)
• Max Unobstructed Distance (D-Fi): 600 ft (183 m)
• Footswitch Battery: 9 V alkaline
• Included Controllers: RF remote, wireless footswitch
• Cable Length: 10 ft (3 m)
• Tripod Thickness: 1.37 in (35 mm)
• Optional Controllers: RF
• RF Remote Battery: 23A, 12 V alkaline

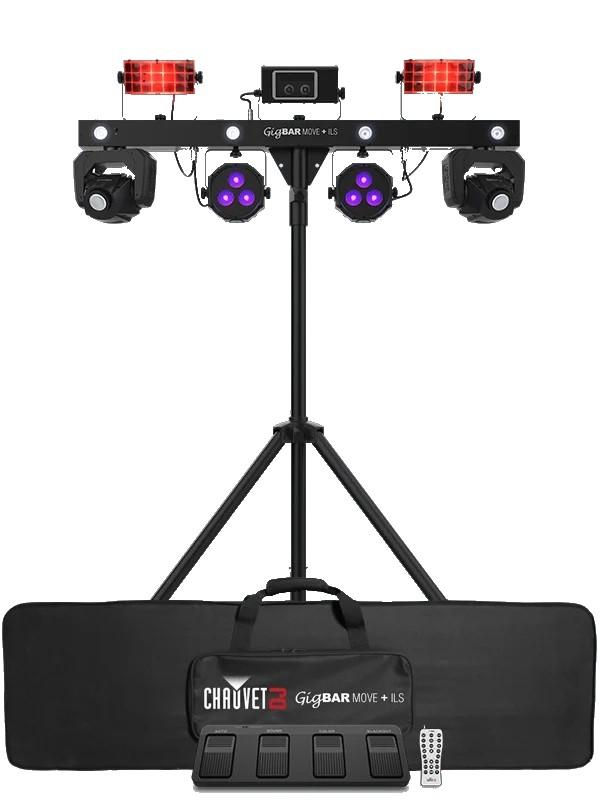

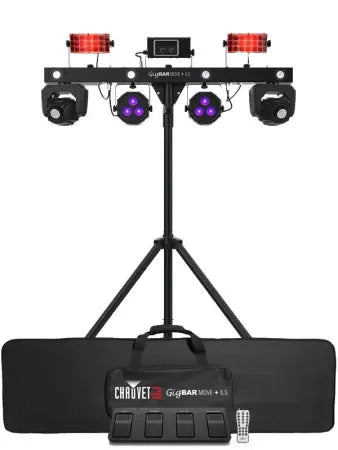

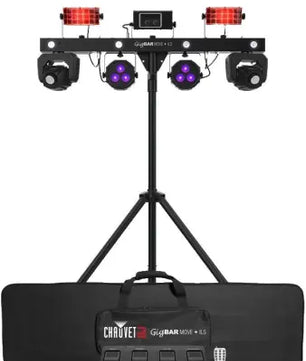

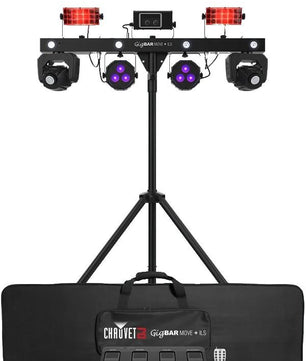

What's in the Box

• GigBAR Move + ILS
• Power cord
• RF Remote
• Carry bag
• Tripod
• Tripod carry bag
• Footswitch
• User Manual

Accessories

• Compatible lighting fixtures
• Additional carry bags
