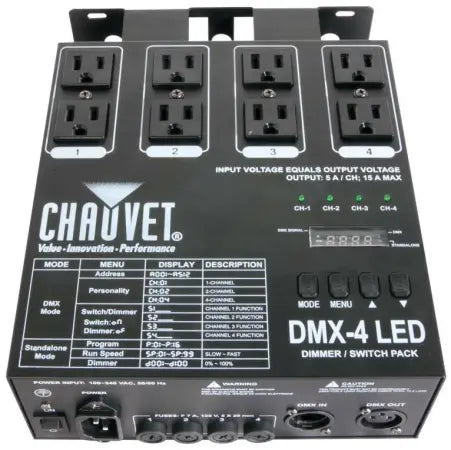

Chauvet DJ DMX-4 | 4-Channel Dimmer/Relay Pack

Chauvet DJ DMX-4 | 4-Channel Dimmer/Relay Pack

The Chauvet DJ DMX-4 is a 4-channel dimmer/relay pack designed to provide DMX control for on/off or dimming to units not equipped with DMX on their own. This versatile and reliable dimmer pack is optimized for use with small LED fixtures to prevent ghosting and flickering, making it an essential tool for any lighting setup.

Key Features

• 4-channel dimmer/switch pack with up to 5 amps per channel (15A max)
• Auto on/off when DMX is detected or removed
• Provides DMX control for on/off or dimming to non-DMX fixtures
• Built-in circuitry generates a phantom load to prevent ghosting and flickering in LED fixtures
• Custom looks at your fingertips with 16 built-in, configurable chases
• Easy control using standalone mode or DMX control
• Increase flexibility by setting each channel as a dimmer or switch
• Control up to eight units simultaneously with four duplex outlets
• Monitor the status of each channel with separate LED indicators
• Generate a synchronized show using easily accessible automated programs, built-in automated programs
• Great control without DMX using automated programs with adjustable speeds and dimmer levels

Competitive Differences

• Optimized for small LED fixtures to prevent ghosting and flickering
• Multiple control options including standalone mode and DMX

Full Description

The Chauvet DJ DMX-4 offers flexible DMX control for fixtures that lack DMX capabilities. With up to 5 amps per channel (15A max), it is optimized to prevent ghosting and flickering in small LED fixtures. The pack features auto on/off detection, 16 built-in configurable chases, and the ability to set each channel as a dimmer or switch. Whether using standalone mode or DMX control, the DMX-4 provides reliable and versatile performance for any lighting setup.

Features

• 4-channel dimmer/switch pack with up to 5 amps per channel (15A max)
• Auto on/off when DMX is detected or removed
• Provides DMX control for on/off or dimming to non-DMX fixtures
• Built-in circuitry generates a phantom load to prevent ghosting and flickering in LED fixtures
• Custom looks at your fingertips with 16 built-in, configurable chases
• Easy control using standalone mode or DMX control
• Increase flexibility by setting each channel as a dimmer or switch
• Control up to eight units simultaneously with four duplex outlets
• Monitor the status of each channel with separate LED indicators
• Generate a synchronized show using easily accessible automated programs, built-in automated programs
• Great control without DMX using automated programs with adjustable speeds and dimmer levels

Specifications

• DMX Channels: 1, 2, or 4
• DMX Connectors: 3-pin XLR
• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Weight: 5 lb (2.2 kg)
• Dimensions: 8.3 x 7.7 x 2.8 in (210 x 194 x 70 mm)
• Approvals: CE

What's in the Box

• DMX-4
• Power cord
• Warranty card

Accessories

• Additional DMX cables
• Mounting hardware
