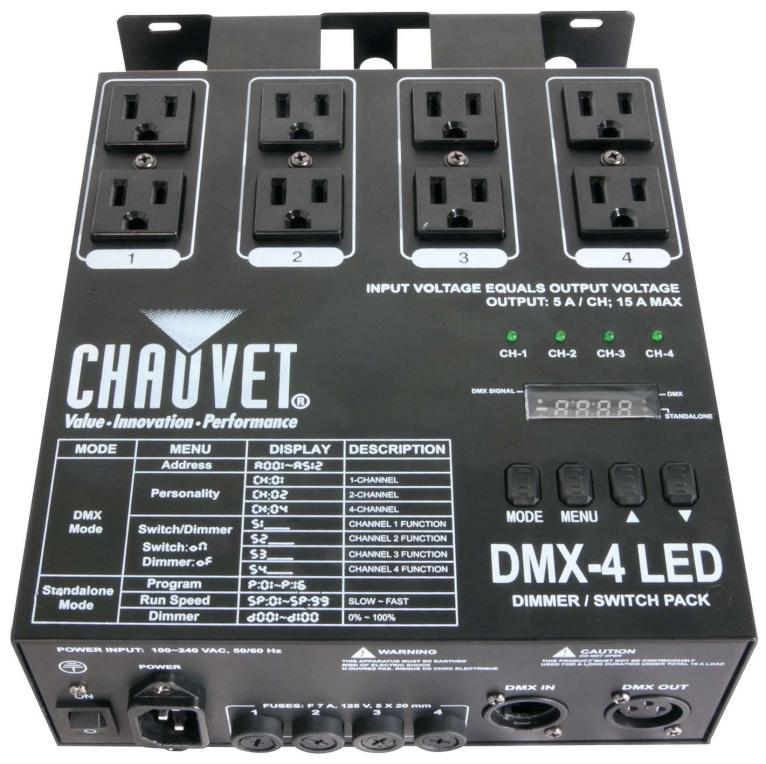

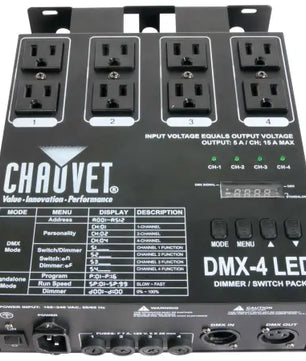

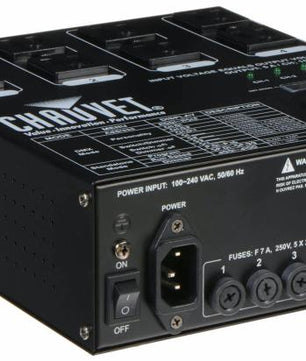

Chauvet DJ DMX-4 | 4-Channel Dimmer & Relay Pack | DMX Control for Non-DMX Fixtures

4-Channel Dimmer and Relay Pack

The Chauvet DJ DMX-4 is a versatile 4-channel dimmer and switch pack that brings DMX control to conventional and non-DMX lighting fixtures. Ideal for DJs, event producers, and venue technicians, it allows dimming or simple on/off switching of traditional lights or effects with precision and ease.

Chauvet DJ DMX-4 Competitive Differences

• Individually addressable dimmer or relay settings per channel
• Built-in phantom load prevents LED ghosting and flicker

Chauvet DJ DMX-4 Description

Chauvet DJ DMX-4 is designed to bridge the gap between DMX-based control systems and legacy lighting fixtures that lack DMX compatibility. Each of its four channels can be independently configured as either a dimmer or a relay, giving you control over a wide variety of lighting gear—perfect for incandescent lights, older effects, and LED fixtures prone to ghosting. This unit features four duplex outlets (8 total sockets), allowing you to power up to eight fixtures. Each channel supports up to 5 amps, with a total capacity of 15 amps. Built-in phantom load circuitry prevents flickering in small LED lights, making it especially valuable for modern hybrid lighting rigs. For added versatility, the DMX-4 can run in standalone mode with 16 built-in chase patterns, making it a strong solution even without a DMX controller. LED indicators for each channel provide real-time feedback, and the unit automatically powers on or off based on DMX signal presence. Whether you're outfitting a permanent install or need portable control on the go, the DMX-4 delivers flexibility and reliability in a compact package.

Model Features

• 4-channel dimmer/switch pack with duplex outlets (8 total sockets)
• Individually assignable DMX addresses per channel
• Each channel selectable as dimmer or relay
• Supports up to 5A per channel (15A total max)
• Built-in phantom load for LED flicker prevention
• 16 built-in chase programs with adjustable speed and dimmer levels
• Auto on/off based on DMX signal detection
• Standalone operation or DMX control (1, 2, or 4 channels)

Model Specifications

• DMX Channels: 1, 2, or 4
• DMX Connectors: 3-pin XLR
• Input Voltage: 100–240 VAC, 50/60 Hz (auto-ranging)
• Dimensions: 8.3 x 7.7 x 2.8 in (210 x 194 x 70 mm)
• Weight: 5 lb (2.2 kg)
• Approvals: CE

What's In The Box

• Chauvet DJ DMX-4
• Power cord
• Warranty card
