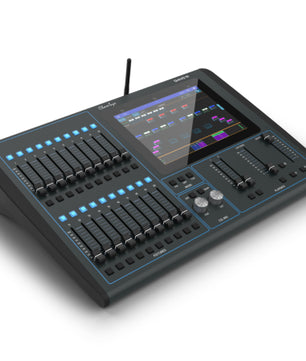

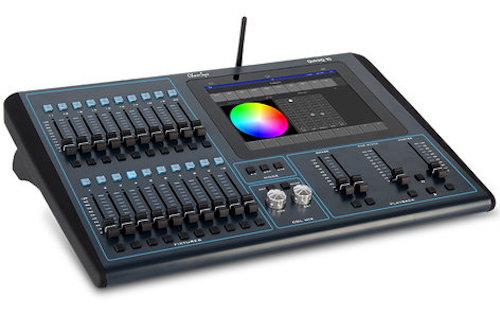

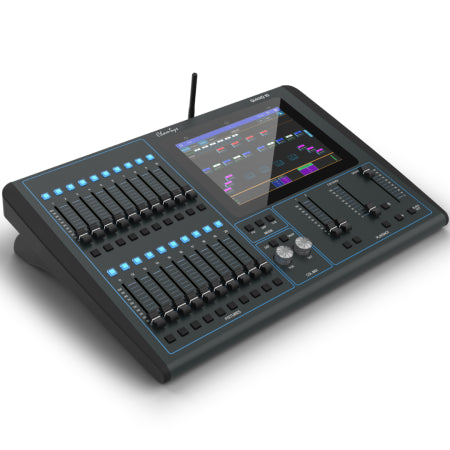

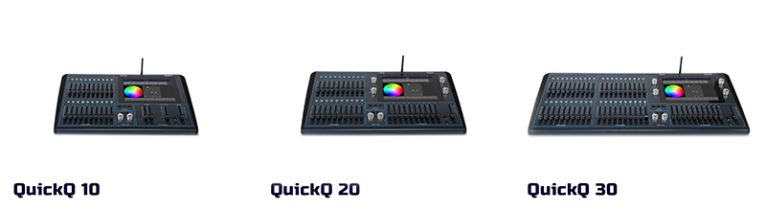

ChamSys QuickQ 10 Console

The QuickQ 10 console from ChamSys is designed with a quick and easy user interface, 9.7" touch screen, and a comprehensive feature-set that bring simplicity and power to the small console market. Built-in Wi-Fi allows for remote control from a tablet or phone, which can also serve as a 2nd external monitor. These consoles are ideal for students, volunteers, or part-time operators, and comfortable to use even by professionals on small-scale shows.

There's no need to have any experience with lighting. With a large 9.7-inch touch screen, helpful prompts and videos, and a smart phone-like interface, you can learn the console quickly, design a light show, save it and play it again and again. The console has easy-to-understand buttons and faders, simple colour selection and intensity control tools, a large touch screen with zooming and scrolling at your fingertips, as well as a simple cue/chase system for playback. The QuickQ interface easily leads you through setup, programming and operation of the console.

The console has free downloadable offline programming software available for Mac and Windows that includes the fully rendered MagicVis visualiser. You can program your show on your computer, pop it onto a flash drive and load it onto the QuickQ console. The console can automatically detect, patch and configure RDM compliant fixtures such as the CHAUVET Professional Ovation, COLORado and COLORdash ranges.

Begin to plug-and-play by simply scanning the QR code on the console display. QuickQ features in-built WiFi capabilities enabling remote connection to the free QuickQ Remote App available on iOS, Android and Windows tablets and phones. QuickQ is powered by the world renowned ChamSys operating system and cue engine, and comes with the support you've come to expect from an industry leader. The console uses ChamSys' extensive and continuously updated personality library with over 20,000 fixtures.

Design
• Simple user interface
• Easy navigation
• Large touch screen with easy to understand and intuitive graphical interface
• User prompts through setup, programming and operation

Console Output Capacity
• No limit on number of fixtures, only by number of universes supported

User Interface
• Modeled on smart phone icon interface and gesture support
• Intuitive interface allowing simple control of all fixture attributes
• Supports pinching for zooming and scrolling
• The remote app is identical to that on the console display so that you can easily swap between the two

Playback Faders
• Dedicated Grand Master fader
• Dedicated Cue Stack Control section
• One Cue Stack and two Chase faders
• Playbacks compatible with and aid progression towards MagicQ

Fixture Faders
• Fader for Intensity Control
• Flash button
• Fixture, Group and Cue modes
• RGB LED shows current mode/state
• 20 fixture faders

Networking
• QuickQ supports output of DMX over network via ArtNet/sACN/Pathport

Color Control
• A dedicated "color control area" with Hue and Saturation encoders, and a pair of additional buttons for colour control
• Select from in-built palettes and gel libraries using the touch screen

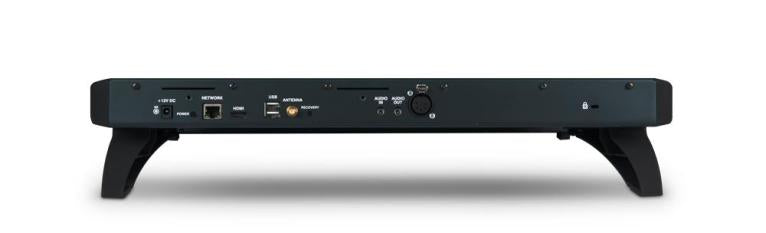

Ports
• 2 USB ports for loading and saving shows, and for optional keyboard and mouse audio input and output
• In-built WIFI port for simple connection of tablets and smart phones

Offline Software
• Offline editor available for both Windows and Mac
• Easy upgrades
• Includes MagicVis visualiser
• Replicates entire QuickQ console software excluding output

Software Features
• RDM Autopatch
• HSV Color Mixing
• Color Picker
• Built-in FX
• Chase and Cue Support
• Execute Window
• Audio Triggering
• Tap to Time
• Software Upgrade/Downgrade
• Easy Fixture Personality Update

Specifications
Touch Screen 9.7"
Universes Supported 1
DMX Outputs 5-Pin XLR 1
Fixtures Supported 512
Fixture Faders 20
Bump Buttons Y
Dedicated Hue/Saturation Encoders Y
Attribute Encoders 0
Master Faders 2 Chase, 1 Cue Stack
Cue Stacks 1
Dedicated Home Button Y
USB 2
Network Y
External Monitor 1920 x 1080 HDMI
Audio In/Out Y
sACN Y
ArtNet Y
Pathport Y
OSC N
MIDI N
MIDI Timecode N
Supports Moving Lights LEDs & Dimmers
Size (WDH mm) 525 x 350 x 106
Weight 4.7 kg
