Blizzard Lighting Stiletto Ray-Z

RGBW LEDs + Zoom

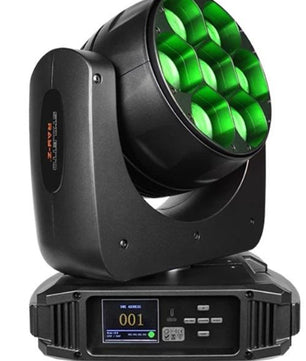

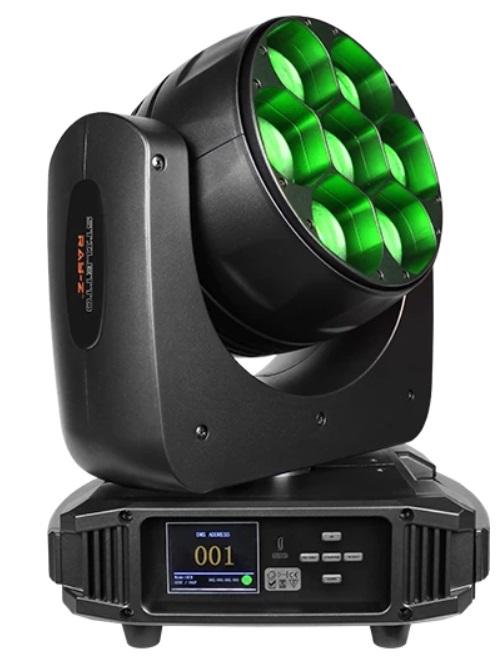

Stiletto™ Ray-Z is a feature-packed, professional moving head fixture fitted with 7x 40W OSRAM™ Ostar RGBW 4-in-1 LEDs with full pixel mapping capabilities via DMX, and it also offers ultra-fast and precise motorized zoom (4.5°- 36°) for narrow to wide moving beams.

Professional Features
It's 3-phase motors create smooth, quick movements (540° pan: 2.2s, 200° tilt: 1.2s) with automatic position correction, and it offers many pro features such as RGBW color mixing + pixel effects, auto and sound active programs, a variety of strobe effects, and more.

MAIN FEATURES
• 7x 40W Osram™ Ostar RGBW 4-in-1 LEDs, 100,000 hours
• Fast and precise zoomable beam angle (4.5°- 36°)
• 8-16 bit smooth pan and tilt resolution
• Pan: 540°/ Tilt: 200° with 3-phase motors
• Automatic pan/tilt position correction
• Full pixel mapping capabilities via DMX
• Speed controllable shape macros + background color presets
• Efficient low noise fan cooling system
• Dual omega brackets with 1/4-turn fasteners
• 5-pin DMX + RJ45 input/output connections
• PowerCON® compatible power in/out connections

Overview

43,675 Lux @ 2.5M (narrow), 2,023 Lux @ 2.5M (wide)

12,120 Lux @ 5M (narrow), 632 Lux @ 5M (wide)

5,324 Lux @ 7.5M (narrow), 277 Lux @ 7.5M (wide)

3,229 Lux @ 10M (narrow), 180 Lux @ 10M (wide)



Optical

7* 40W Osram Ostar RGBW 4-in-1 LEDs, 100,000 hours

RGBW color mixing

Fast and precise zoomable beam angle (4.5°- 36°)

Flicker-free LEDs



Weight & Dimensions

12.2" x 8.6" x 14.6" (31 x 22.5 x 37 cm)

19.9 Lbs. (9kg)



Control

Protocol: USITT DMX-512, Art-Net, Kling Net, sACN

DMX channels: 15/18/38-channel modes

Easy-to-use 5-button control panel with LCD display

Operating modes: DMX512, master/slave, auto, sound active



Power & Current

90-250VAC, 50-60 Hz

Power Consumption: 324W, 2.92A, PF: .99

PowerCON™ compatible AC power In/Out connectors



Warranty

2-year limited warranty
