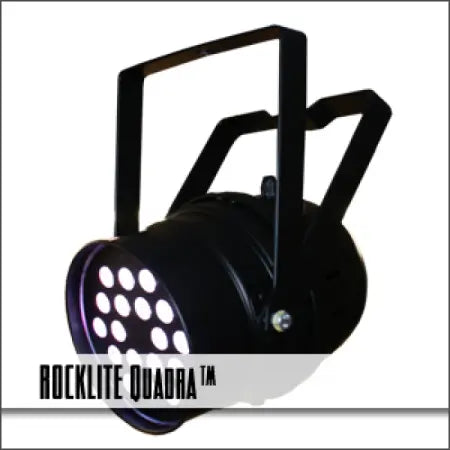

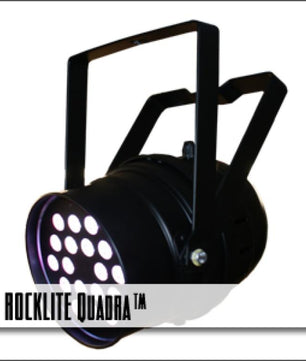

Blizzard Lighting's ROCKLITE Quadra PAR fixture surpasses the color mixing
performance level of any conventional (Red/Green/Blue/X) fixture with its 18x
8-watt quad-color 4-in-1 Red/Green/Blue/White diodes, and it does it at an
unheard of price point. State-of-the-art 4-in-1 technology provides exceptional
pastel reproduction with none of the multicolored shadowing or beam artifacts
found in conventional R/G/B/W fixtures. ROCKLITE™ Quadra produces any color
with dazzling results, including traditionally hard to reproduce colors like
ambers and yellows.
Additional advanced features include 400hz flicker-free LED drivers, an
ultra-quiet multispeed cooling system and 4 DMX modes including HSV, RGBW,
RGBW+Dimmer and extended controls. As a member of our ROCKLITE™ series, you can
expect exceptional quality, coverage and ease of use at a MUCH lower price than
other fixtures in its class!
Plus, with the ability to run built-in programs and perform full RGBW color
mixing with or without DMX control, the ROCKLITE™ is perfect for permanent
installs as well. Two mounting yokes add positioning flexibility, and a slew of
built-in programs in DMX allow the ROCKLITE™ Quadra to be programmed with ease.
The new and improved second revision of the ROCKLITE™ Quadra fixture
(available January, 2012) also includes industry-leading multi-mode 32-bit
dimming capabilities for ultra-smooth fades suitable for even the most
challenging theatrical environments. Users may select from 5 different dimming
curves—standard, plus four 32-bit variations--which allow significant
flexibility in scene design.
3/4/5/8/9-channel RGBAW wash light
HSV / RGBW / RGBW+Dimmer / Extended control profiles
Built-in automated programs via DMX
Built-in color macros via DMX
RGBW color mixing with or without DMX control
Master/Slave, Standalone & Sound Active Modes
32-bit dimming. Standard plus four 32-bit variations (Rev B)
Full electronic dimming & 1-10FPS strobing
LED display with 4-button control panel
3-pin DMX input and output connectors
Dual locking yokes for tons of positioning flexibility
Installed Optics: 25° (15°, 40°, 45° available)li>
Beam Angle: 23°
FiField Angle: 26°
Lux: 25°: 10,220 @ 1m
Light source: 18 x 8 W 4-in-1 LEDs 100,000 hrs
Power and current: 90-230V, 50-60Hz; 140 W, 1.2A operating, 1.2 A (inrush)li>
AC power: 90 V ~ 230 V 50/60 Hz
Power input cable: 60 in (1,524 mm)
Weight: 7 lbs / 3.2 kg
Size: 9 x 9 x 12.2 in / 230 x 230 x 310mm
