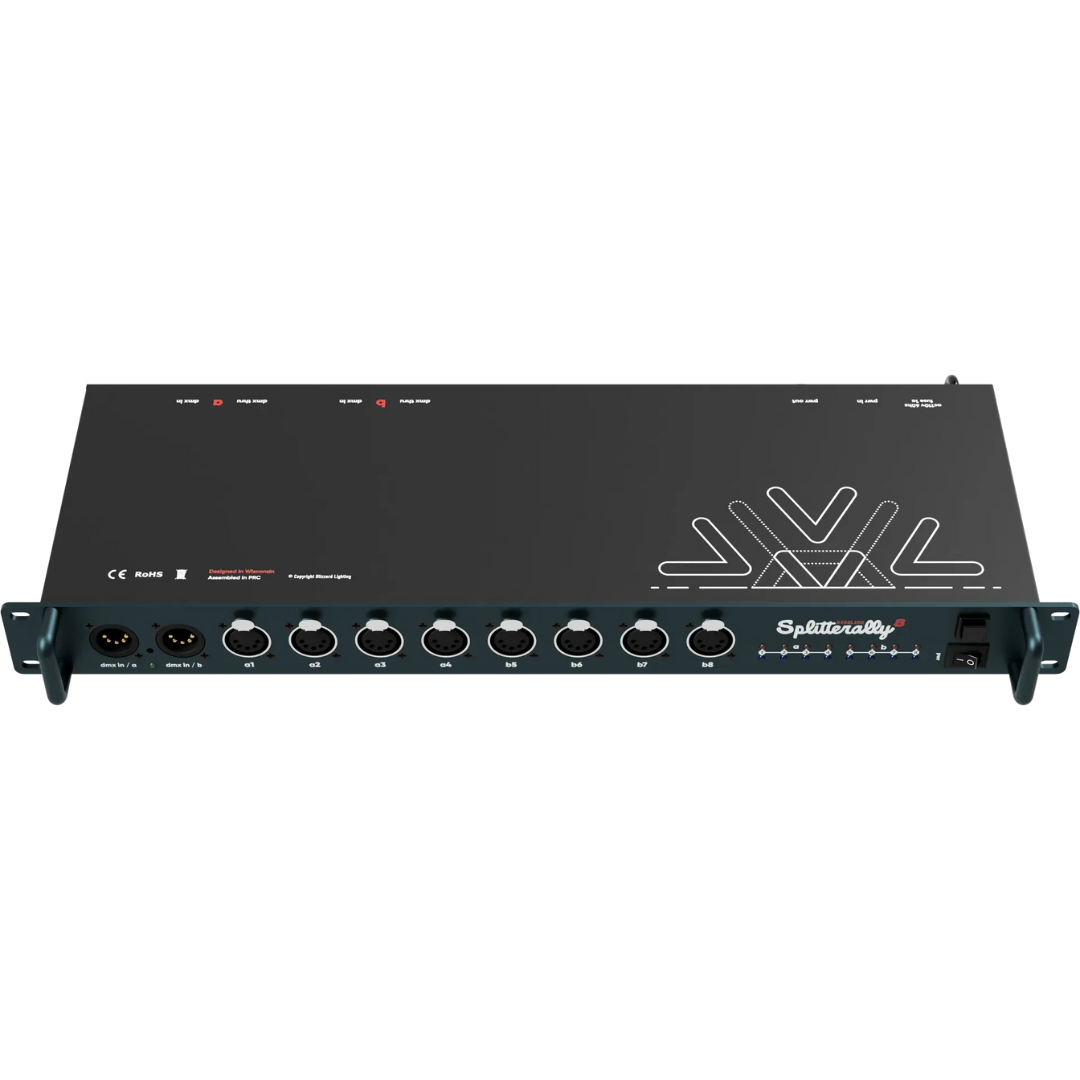

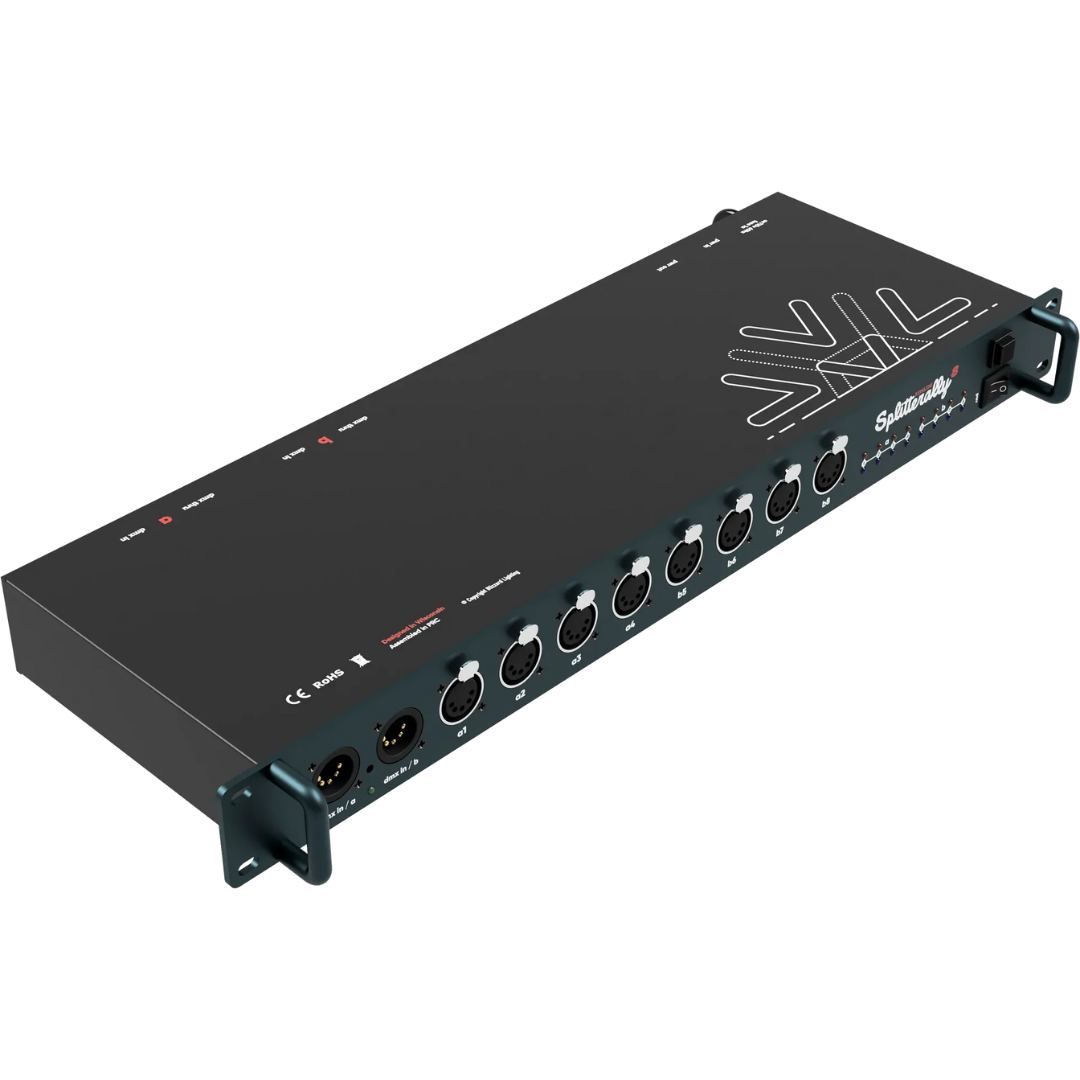

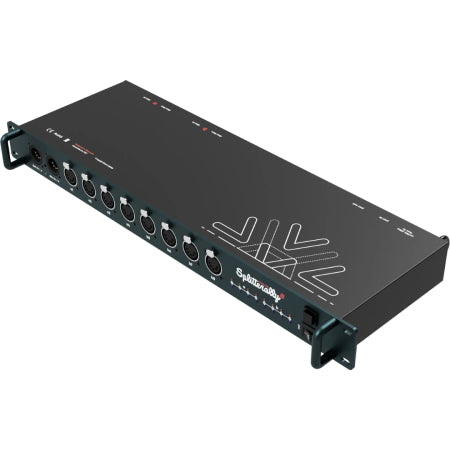

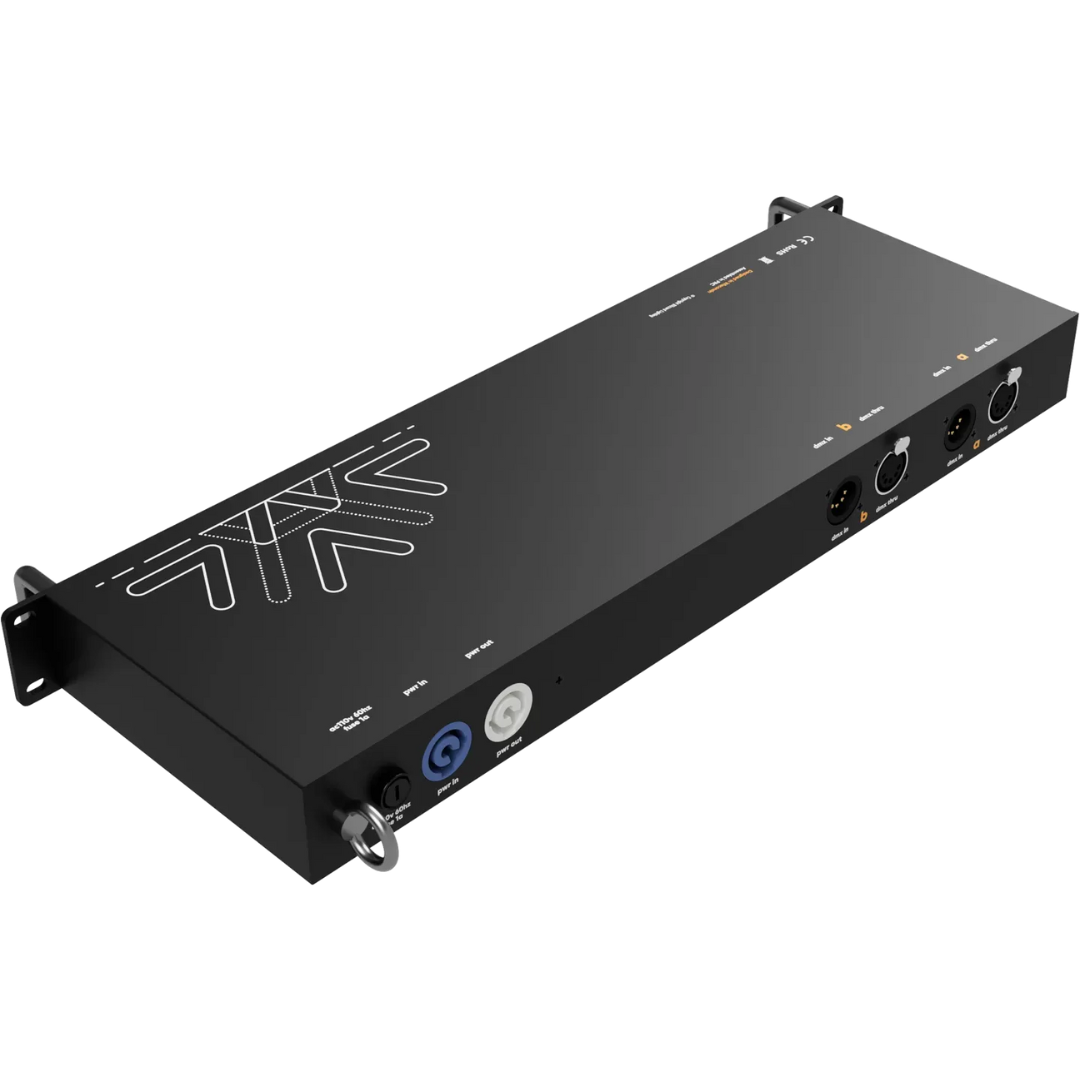

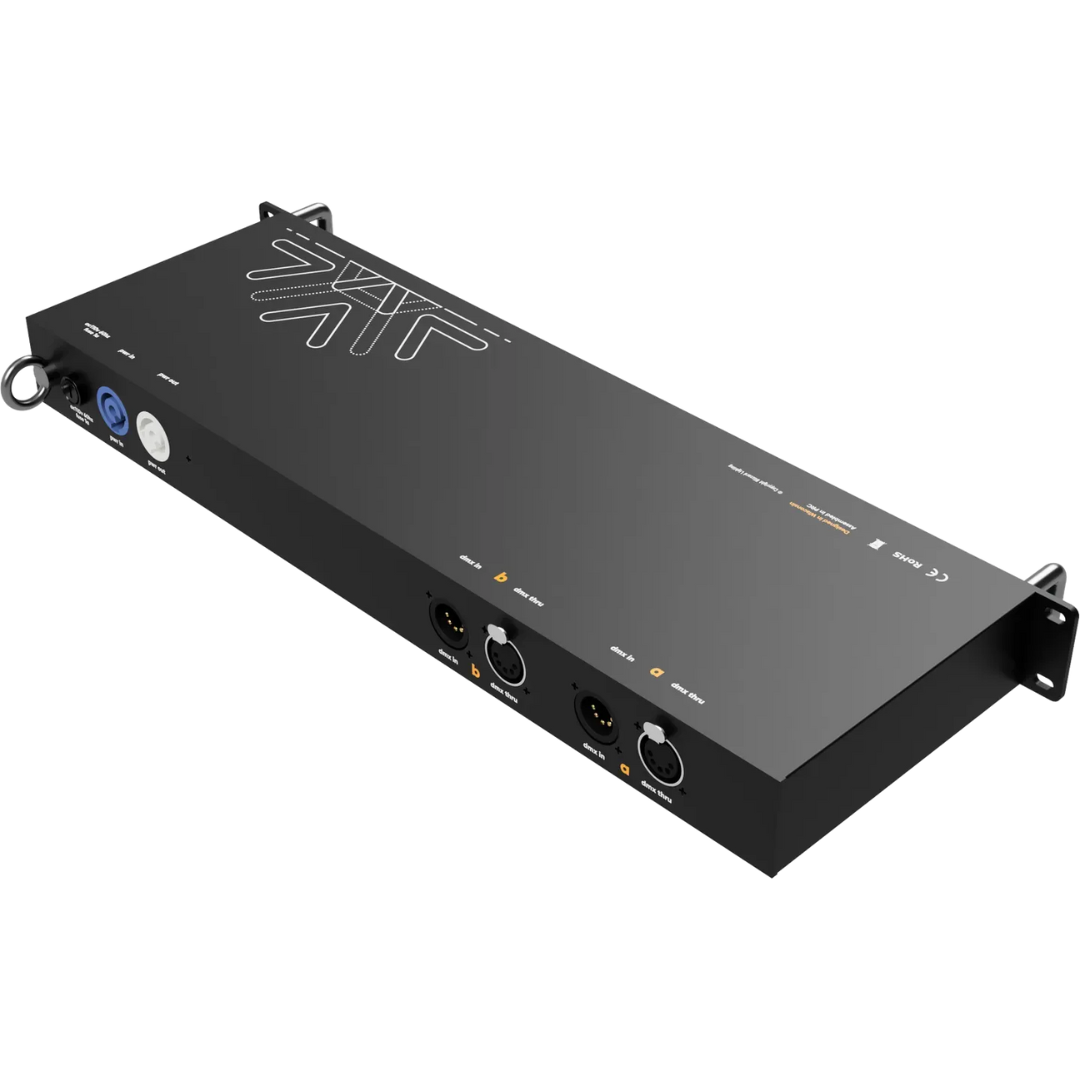

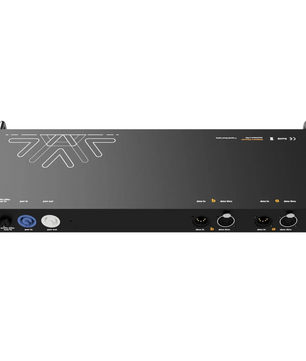

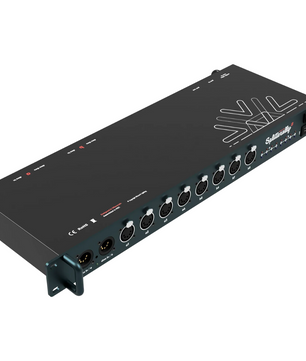

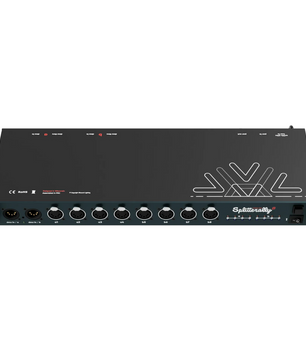

Blizzard Lighting Pipeline Splitterally 8 | 1U Rackmount 8-Way DMX Splitter & Booster (1x8 or 2x4 Mode)

Rackmount DMX Splitter & Signal Booster for Lighting Control Systems

The Blizzard Lighting Pipeline Splitterally 8 is a professional-grade, rackmount DMX signal splitter and booster with dual operating modes, designed to enhance and distribute DMX signals over long distances. Housed in a durable 1U 19-inch chassis, it's ideal for permanent installations and touring rigs alike.

Blizzard Lighting Pipeline Splitterally 8 Competitive Differences

• Dual-mode operation: 1 input to 8 outputs or 2 inputs to 4 outputs each
• Rugged 1U rackmount design with powerCON® TRUE1-compatible power I/O
• LED indicators for real-time signal monitoring and diagnostics
• Electrical isolation between all DMX inputs and outputs
• Built-in safety loop and fuse protection for secure operation

Blizzard Lighting Pipeline Splitterally 8 Description

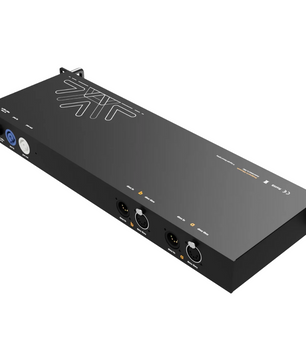

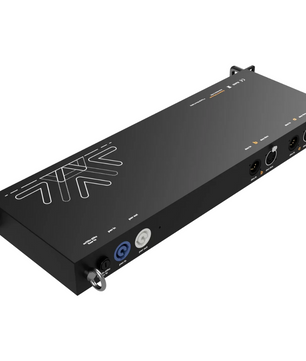

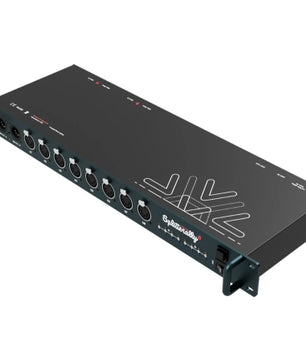

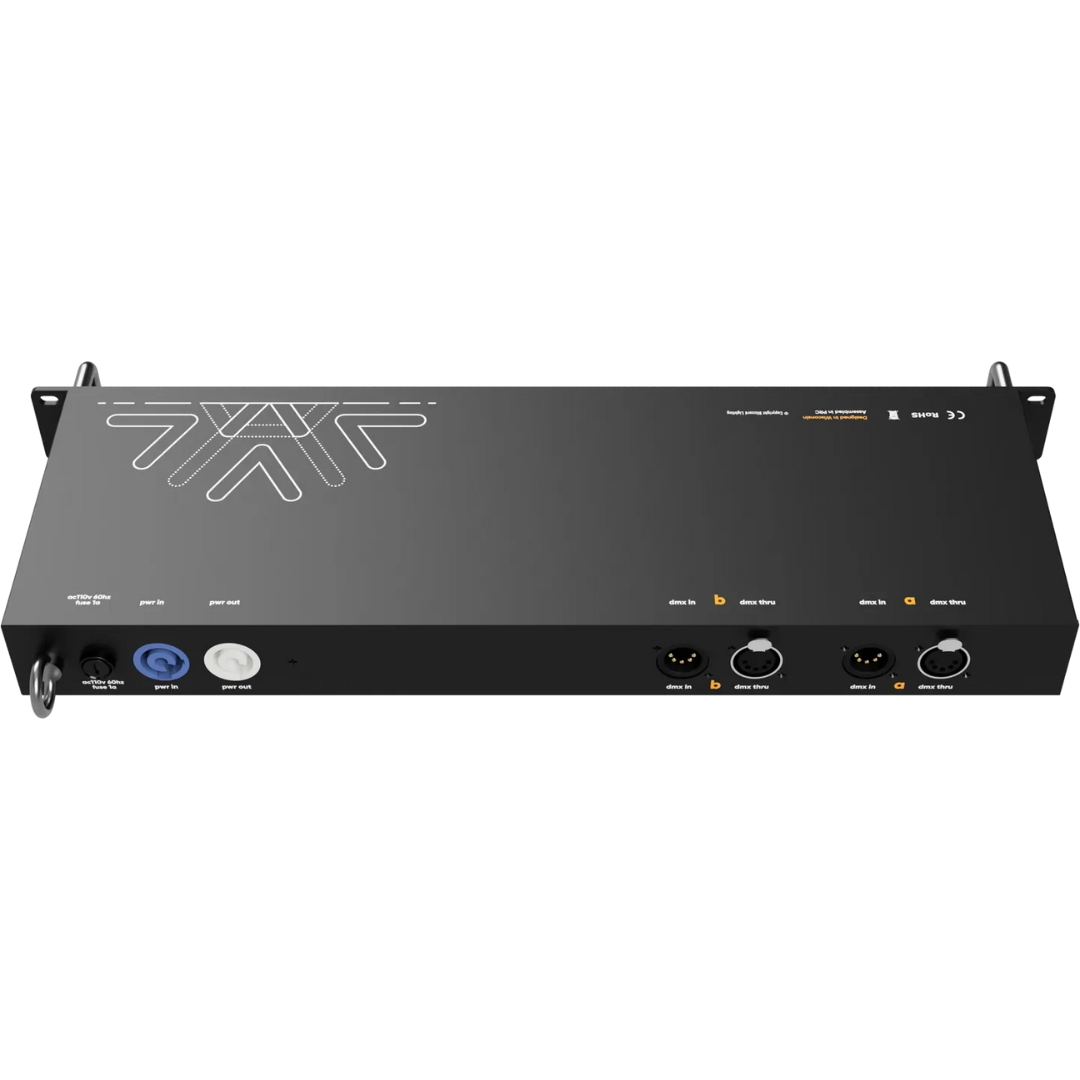

The Pipeline Splitterally 8 by Blizzard Lighting is a high-performance DMX signal splitter and booster built to meet the demanding needs of stage productions, lighting installations, and event setups. With its compact 1U rackmount form factor, this splitter is designed to integrate seamlessly into any rack-based system. Capable of operating in either 1x8 mode (one input to eight outputs) or 2x4 mode (two inputs to four outputs each), it offers flexible distribution of DMX signals to multiple fixtures or zones. Rear-panel 5-pin DMX inputs and thru connections provide clean and efficient signal routing, while front-panel LEDs give clear visual feedback on signal activity. The unit is powered via powerCON® TRUE1-compatible connectors for a secure and professional power connection, with both input and output available. Engineered for reliability, each output is optically and electronically isolated to protect against electrical faults and ensure stable data transmission—even across long cable runs. With clearly labeled ports, rugged metal housing, and front-panel handles for easy rack installation, the Splitterally 8 is a powerful and reliable solution for extending and distributing DMX signals in complex lighting setups.

Pipeline Splitterally 8 Features

• 19-inch, 1U rackmount DMX splitter and booster
• Selectable 1x8 or 2x4 operation modes
• 5-pin DMX inputs and outputs (rear panel)
• DMX thru connections for signal pass-through
• Front-panel toggle switch for mode selection
• LED indicators for signal status monitoring
• Power input and output via powerCON® TRUE1-compatible connectors
• Electrical isolation between all inputs and outputs
• Built-in safety loop and fuse protection
• Works with all DMX512-compliant equipment
• Durable metal housing with front rack handles
• Compact and portable for on-the-go applications

Pipeline Splitterally 8 Specifications

• Dimensions (Single Pack): 21 in. (L) x 8.5 in. (W) x 3.5 in. (H)
• Weight: 6.9 lbs.
• DMX Inputs: 2x 5-pin XLR (Rear Panel)
• DMX Outputs: 8x 5-pin XLR (Rear Panel)
• Power Input/Output: powerCON® TRUE1-compatible connectors
• Mounting: Standard 1U 19” Rackmount
