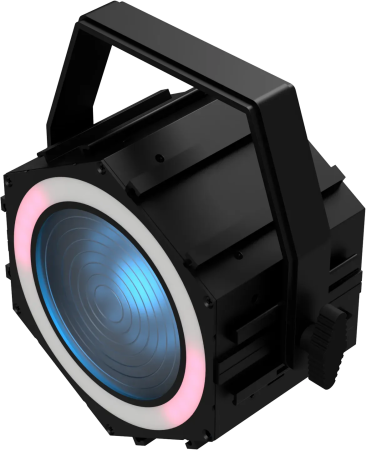

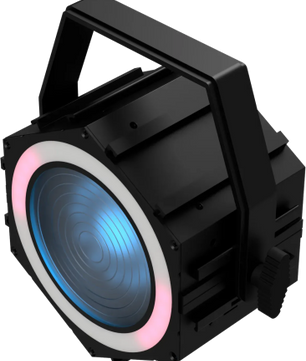

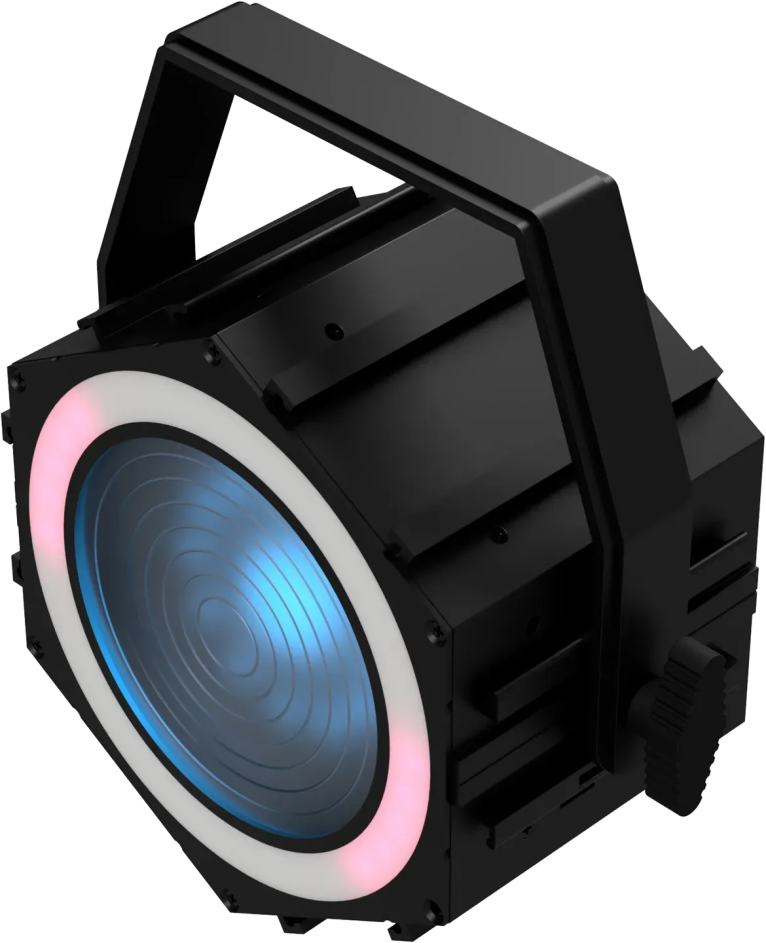

Blizzard Lighting Nexys RGBW

Vibrant Versatility

An artist’s dream. Make your own custom blends using RGBW color mixing in the main LED paired with the RGB backlight or its RGB diffused outer ring to make a bold statement.

Buildable Design

Dream it up and build it out. Nexys RGBW is 1 of 3 modular LED fixtures capable of interlocking with one another in any direction– horizontal, vertical or diagonal– thanks to its unique hexagonal shape.

Modular Innovation

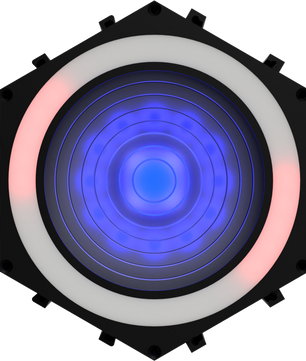

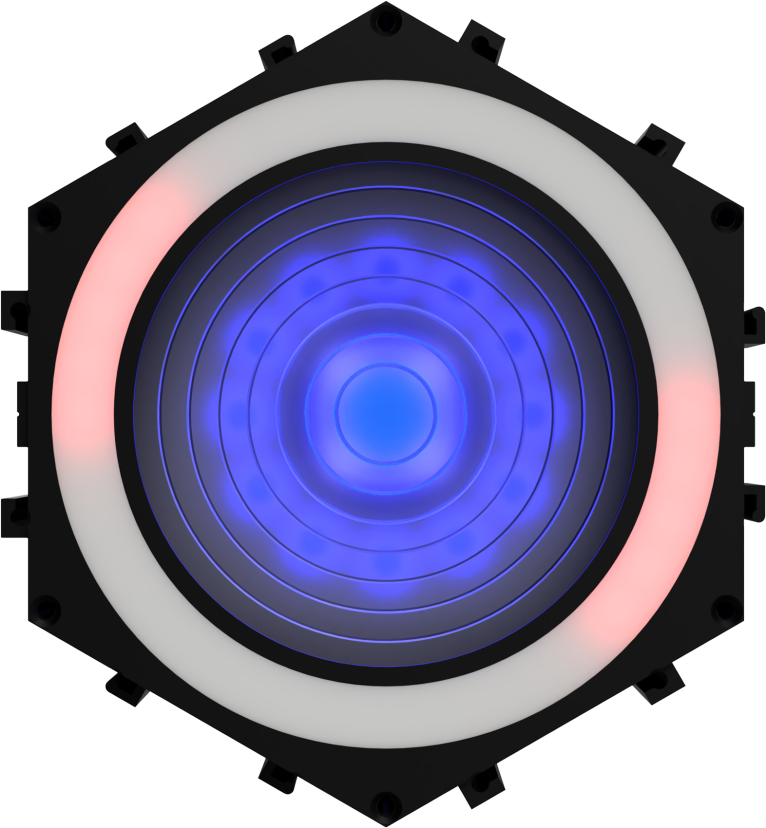

Nexys™ RGBW is 1 of 3 modular LED fixtures in the Nexys™ Series, designed with unique interlocking housings. These lights can connect in any orientation: horizontally, vertically, or diagonally to form captivating visual arrays. This specific model boasts a 40W RGBW LED with a 10° Fresnel lens for sharp color beams. Additionally, it features an outer 6-pixel RGB diffused ring and an inner 6-pixel RGB backlight for enhanced visual effects.

Loaded With Features

It offers smooth dimming, strobe, built-in programs, and individual control of each of its 6 inner, and 6 outer pixel ring groups. Then for ease of use and seamless integration into any application, all Nexys™ Series fixtures come with dual mounting brackets, plus an Omega bracket with quick-lock quarter turn fasteners (clamp not included), a 4-button LCD control menu, 5-pin DMX in/out, and powerCON-TRUE1 compatible in/out connections.

Optical
1x 40W flicker-free RGBW LED

36x and 18x SMD 5050 RGB 50mW LEDs (outer and backlight)

10° beam angle

3,253 Lux @ 2.5M

936 Lux @ 5M

Control
Protocol: USITT DMX-512

5-pin DMX in/out

18/45/57-channel DMX

4-button menu with LCD display

DMX512, M/S, auto mode

Power & Current
100-250VAC, 50-60 Hz

Consumption: 65W, .87A, PF: .64

PowerCON® TRUE1-compatible in/out

Dimensions
17.9" x 4.9" x 6.8"

5.3lbs

In the Box
Nexys™ RGBW fixture, dual mounting brackets, an Omega bracket with quick-lock quarter turn fasteners (clamp not included)

Downloads & Manuals

Warranty
2 Year - Extendable
