Blizzard Lighting Motif Vignette (black)

Motif Vignette™

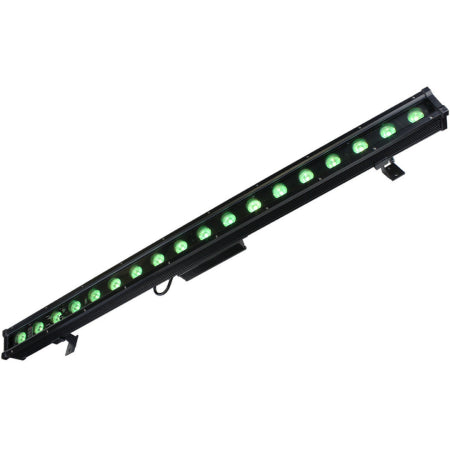

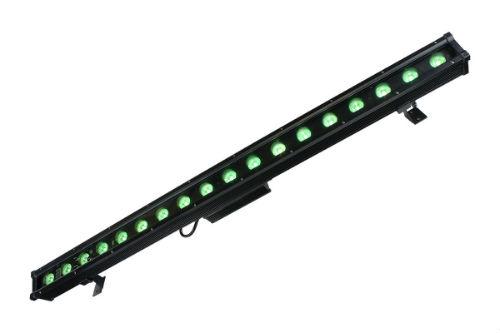

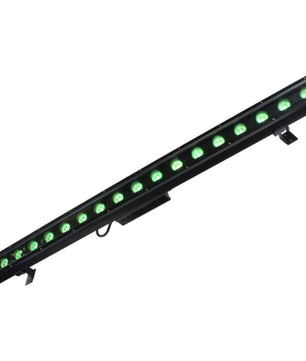

Looking for an IP65 rated outdoor lighting fixture capable of making a statement with brilliant, richly mixed colors, and able to lighten the mood with a soft, gentile touch? You'll get that and a ton more with the Motif Vignette™, which comes fitted with 18x 10-watt high output Quad-Color RGBW LEDs with 25 degree beam angle, all housed in an attractive, 1-meter linear package!

It is the latest and greatest in the Motif™ series of IR remote controllable outdoor fixtures that offers everything the smaller Motif Sketch™, and Motif Fresco™ does, plus a whole lot more. Motif Vignette™ can be controlled by its own unique IR remote control (sold separately) that is simple to use and offers the exact same functionality of its LED control panel, with the addition of quick access shortcut buttons to auto mode and custom programs.

Without the optional IR remote, the Motif Vignette™ can be controlled via 10/7/5/4 or even just 3-channels of DMX, or directly with its easily accessible, easy-to-use LED control panel that is found right on the face of the unit under its water-tight tempered glass lens with 4* electronic touch sensitive menu buttons that really make programming (and button pushing) a breeze!

They also feature highly efficient, natural convection cooling thanks to their attractive cast aluminum housing with heat sink design. There are no internal cooling fans in these fixtures, which mean absolutely zero noise. Motif Vignette™ LED fixtures are a great choice for any "sound-sensitive" environment.

Some other remarkable features of Motif Vignette™ fixtures include their many built-in preset colors + white color temperature settings, variable electronic dimmer & strobe, menu key lock, flicker-free constant-current LED driver, color calibration settings, 5 built-in programs, 3 customizable programs, and 32-bit dimming curve settings for smoother (and slower) dimming capabilities.

Motif Vignette™ fixtures also come with dual mounting brackets, an IP rated AC power input cord with cable cap, 3-pin extended IP rated DMX in/out plugs, and a set of IP rated DMX in/out cables.

And of course, they are also backed by Blizzard's 2-year warranty!



Main Features

Exceptional color mixing from 18x 10-watt Quad-Color LEDs

Advanced heat sink design for zero fan noise

Multiple built-in color presets and auto programs

User adjustable program speed & fade times

0-100% variable electronic dimmer

Variable electronic strobe

Durable cast aluminum housing and mounting brackets

Tempered glass lens and watertight internal gaskets

Easy-to-use 4-button LED control panel menu

Built like a rock (It hits the gym regularly)

USITT DMX-512 (3/4/5/7 and 10-channels)

3-pin Input/Output

Easy to use IR remote control (sold separately)

Specifications:

Power
Operating voltage: 100-264VAC, 50-60 Hertz
Power Consumption： 83W, .98A, PF: .68

Light Source
18x 10-watt LEDs, 100,000 hours.

Optical
25 degrees

Thermal
104 degrees F (40 degrees C) ambient

Control
USITT DMX-512
DMX channels： 3/4/5/7 and 10-channels
Input: 3-pin XLR Male
Output: 3-pin XLR Female
Operating Modes: DMX512, Master/Slave, Auto, Standalone

Weight and Dimension
Width: 39.8 inches (1001 mm)
Depth: 2.7 inches (68.8 mm)
Height: 4 inches (100.1 mm)
Weight: 9 lbs (4.1 kg)

Warranty
2-year limited warranty, does not cover malfunction caused by damage to LEDs
