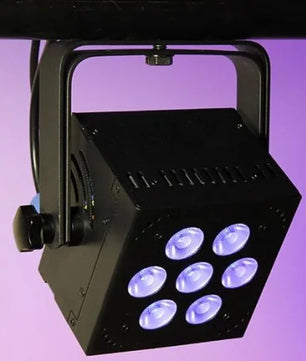

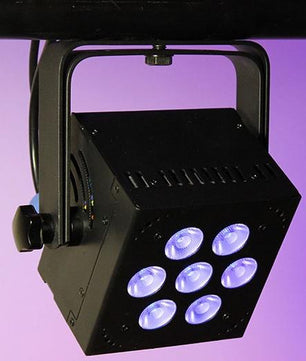

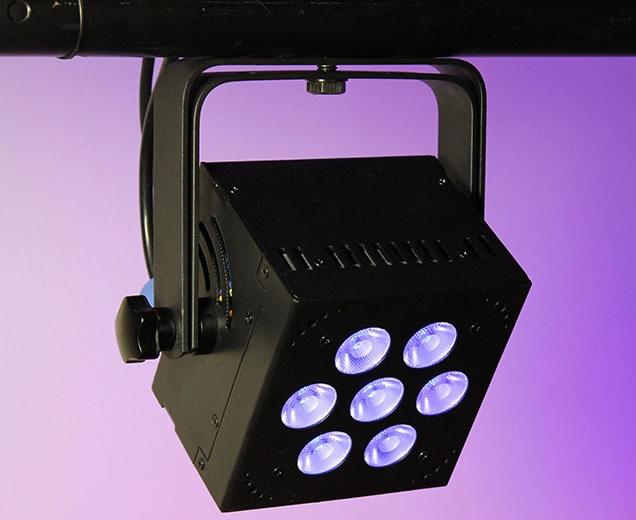

Blizzard Lighting HotBox RGBW (Blizzard Hot Box Q7W)
They're so cool, they're HOT!
The box... one of the most useful, time tested, and attractive 3-dimensional
shapes ever created is once again new and improved!
Just like its big brother the RokBox, the HotBox also offers cutting-edge 4-in-1
LEDs, advanced electronics, a rock solid super-cool aluminum casing with dual
hanging brackets and secure grip locking knobs, but in an even more
compact/portable cute little package! It weighs in at just 3.5 pounds and is
only 4 x 5 x 5 inches (7.25 inches tall including the brackets)!
The HotBox RGBW and HotBox RGBA both put out a ton of light with 7x 10-watt
4-in-1 LEDs, and their user selectable 3/4/5/8 or 9 DMX channel modes allow them
to work great with any type of controller, including popular 3-channel
controllers. You'll have full control of color mixing, 31 built-in programs,
ultra smooth flicker-free 32-bit dimming, and even easy HSV color mixing ability
in 3-channel mode.
The easy to use built-in 4-button LED control panel also allows total control
over the fixture including master/slave settings, sound active mode, built-in
programs, auto mode, custom color mixing, and user adjustable fade/strobe

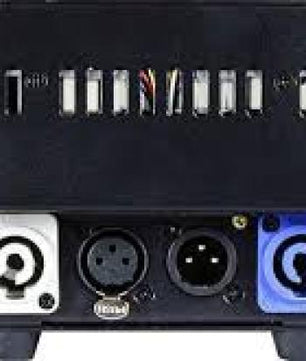

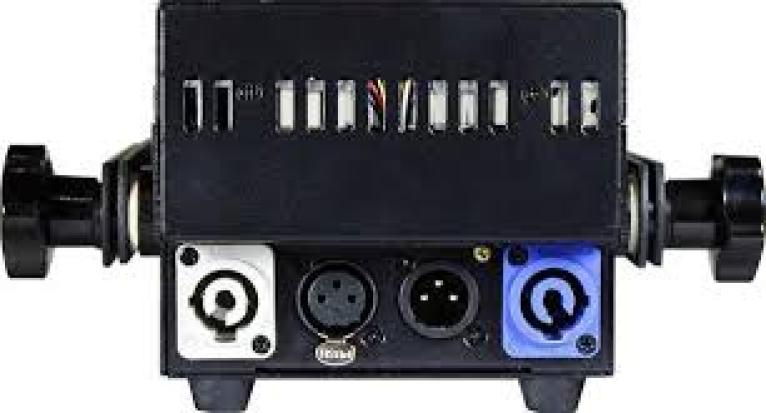

effects for a totally rocking light show. The HotBox also comes equipped with
industry standard powerCON compatible power input/output & 3-pin DMX
connections!
You can take also full advantage of Blizzard’s wiCICLE wireless DMX system
without the need for external power thanks to the wiCICLE enabled DMX jacks! An
innovative design provides power to the system directly from the fixture’s DMX
jack, meaning even fewer cords and less setup time.
Add some sizzle to your light show with the HotBox!
• RGBW/RGBA color mixing via 7x 10W 4-in-1 LEDs
• Variable electronic dimming & strobe
• 5 user-selectable 32-bit dimming curves
• Built-in color & chase macros via DMX
• Built-in automated programs via master/slave
• Built-in sound active programs
• Color mixing ability in standalone mode
• Rugged and well-built (It hits the gym regularly)
• Super-quiet variable-speed internal fan cooling
• Dual mounting brackets for positioning flexibility
• Flicker-free constant-current 400hz LED driver
• 3-pin male input and 3-pin female output
• PowerCon compatible AC power In/Out connectors
Power
• Operating Voltage: 100-250VAC, 40-60 Hertz
• Fuse: 2A 250V
• Power Consumption: 47W, .68A
• Power Factor: .55
Light Source
• LED: 7x 10W 4-in-1 LEDs 100,000 hours.
Optical
• Beam Angle: 25 degree optics standard, 26 degree beam, 30 degree field
Thermal
• Max. Operating Temp.: 104 degrees F (40 degrees C) ambient
Control
• Protocol: USITT DMX-512
• DMX Channels: 3/4/5/8/9
• Input: 3-pin XLR Male
• Output: 3-pin XLR Female
• HSV (3-Ch), RGB(A/W) (4-Ch), RGB(A/W) + Dimmer (5-Ch) & Extended (8-Ch/9-Ch)
• Operating Modes: Standalone, Master/Slave, Sound Active, Color Preset
Weight & Dimensions
• Length: 5 inches (127 mm)
• Width: 4 inches (101.6 mm)
• Height: 5 inches (127 mm), 7.25 inches w/brackets
• Weight: 3.5 lbs (1.6 kg)
Warranty
• 2-year limited warranty, does not cover malfunction caused by damage to LED’s.
