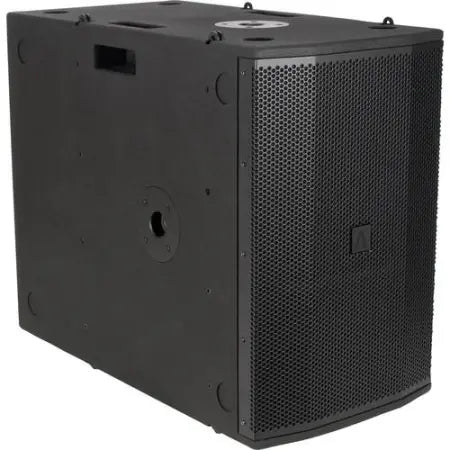

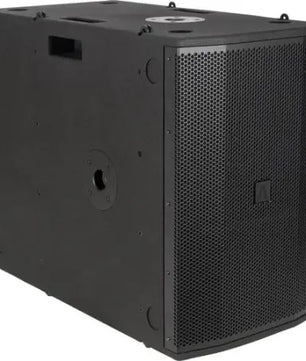

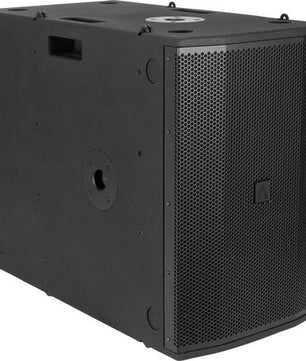

Avante Imperio SUB210 | Dual 10in - 124dB

Avante Audio Dual 10" Active Subwoofer (1400W)

Key Features:
700W RMS, 1400W Peak Power
3-Pin powerCon Input/Output
Dual 10" Woofers
Selectable 90 / 120 Hz Crossover

The Dual 10" Active Subwoofer from Avante Audio is designed to be used with the Imperio Mini Line Array system. It features a class-D amplifier that produces 700W RMS and 1400W peak power. Its two 10" woofers with 2.5" voice coils produce a frequency range of 40 to 150 Hz. This subwoofer features 3-pin XLR audio input/output, and it's powered via 3-pin powerCon input/output. The back panel features a phase button for inverting the polarity of the signal, a 90/120 Hz Hi-pass selector, and a volume control. For mounting, you can use the two (one on top, one on the side) M20 screw pole mounts, or you can fly it using an Imperio Flybar (sold separately).

Speaker powered via 3-pin powerCon input and output connectors
Internal selectable X-over 90 or 120 Hz
Phase Switchable (0 / 180°)
LED power, signal, clip indicator
124 dB max SPL
Flyable with flybar (available separately)
6th order bandpass design
1.2mm steel grill
Plywood cabinet
Volume control dial

Avante Audio IMOSUB210 Specs:

PA Speaker
Configuration Dual Subwoofer
Enclosure Type Bandpass Line Array Subwoofer
Total Power Capacity 700 W RMS
1400 W Peak
Amplifier Class LF:
Class-D

Drivers
LF Driver 2 x 10" / 25.4 cm Woofer
LF Voice Coil 2.5" / 6.35 cm

Performance
Frequency Response 40 Hz to 150 Hz
Maximum SPL 124 dB

Connectivity
Audio I/O 1 x XLR 3-Pin Male Balanced Input
1 x XLR 3-Pin Female Balanced High-Pass/Link Thru/Output

Signal Processing
Crossover High-Pass:
90 / 120 Hz
Phase Adjustment 0 / 180°

Power
AC Input Power 100 to 120 VAC, 50 / 60 Hz
AC Power Connector 1 x powerCON Input
1 x powerCON Output

Physical
Mounting 2 x M20 (Side, Top)
Construction Material Plywood, Stainless Steel Grille
Dimensions 14.2 x 26.4 x 22.6" / 36.1 x 67.1 x 57.4 cm
Weight 76 lb / 34.5 kg
