Audio-Technica Diversity Fin DISTRO4 Package DFINDISTRO4

$1,449.00

Order in the next [hour] to get it between [date_start] and [date_end]

Quantity

Call For More Details

Guarantee Safe
Checkout

trust_2dea69ed-7223-44f3-828d-a80bc0f3aef4

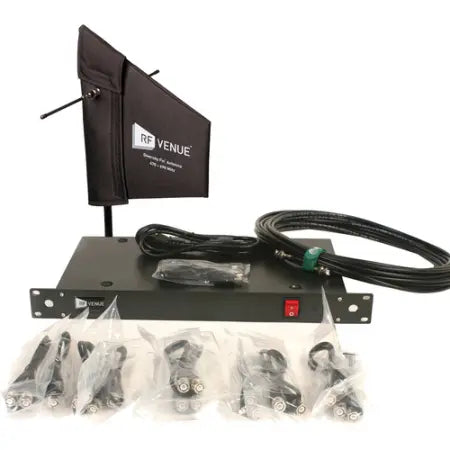

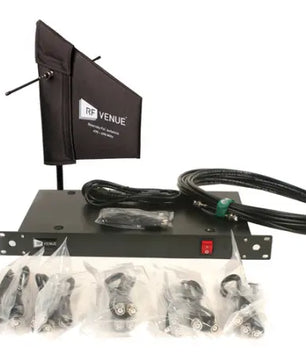

The 4-Channel Antenna Distributor with Cloth-Covered Diversity Fin Antenna and Cables Bundle from RFvenue features the DISTRO4 which supplies RF and DC power to four wireless microphone systems of any brand, allowing for splitting two incoming antenna signals across multiple receivers.

The bundle also includes the cloth-covered DFIN Diversity Fin Antenna, a portable, simple to operate wireless microphone antenna that reduces microphone dropouts and interference in tough RF environments. Multiple-thread microphone stand mounts are provided.

DC and RF jumper cables required for four-channel microphone system operation are also included, along with two 25-foot RG8X coaxial cables.

RF Venue RF and DC 4-Channel Distribution System
The RF and DC 4-Channel Distribution System from RFvenue is designed to provide DC power and split the signal from 2 antennas between up to 4 optional wireless receivers. RFvenue includes 4 BNC cables for splitting the RF signal as well as 4 DC jumpers to provide your wireless receivers with power.

RF Venue Diversity Fin Antenna
The RFvenue Diversity Fin Antenna is capable of receiving diversity signals with just a single antenna, and avoids cumbersome multi-antenna configurations. The Diversity Fin Antenna will work with any wireless microphone or EIM system operating within the 470 - 698 UHF band. The antenna incorporates LPDA and dipole antennas oriented at exactly 90°. Easily mount the Diversity Fin onto any 1/4-20, 3/8-16 or 5/8-27 stand without the need for any adapters.

Works with existing wireless systems, 470-698 MHz
Perfect for everyday stage, worship, and A/V productions
Ideal for location sound mixers who have limited cart space
Decrease signal fades, audio dropouts, and static
Super strong, water resistant padded nylon cover
Fits 1/4-20 Lighting Stands, 3/8-16 EU Mic stands, and 5/8-27 International Mic Stands- no adapters.

RF Venue RG8X Low Loss Coaxial Antenna Cable - 25'
The RG8X Low Loss Coaxial Antenna Cable - 25' from RFvenue features BNC connectors and offers a cost effective, reliable interconnect.

RF Venue RF And DC 4-Channel Distribution System Specs:
Electrical
Operating Frequency 470 to 870 MHz
Bandwidth 400 MHz
Gain -0.5 to 3 dB
Impedance 50 Ω
Output Connector Isolation 25 dB
Third Order Intercept Point (3 OIP) 24 dBm
Voltage Input AC Voltage: 90 to 260 V, Switching
Output DC Voltage: 12 to 18 V
Output DC Current: 2000 mA
General
RF Connector BNC
Dimensions (HxWxD) 1.75 x 19.00 x 10.00" (44 x 482 x 253 mm)
Weight 4.75 lb (2.15 kg)
Packaging Info
Package Weight 8.95 lb
Box Dimensions (LxWxH) 22.1 x 12.9 x 3.6"
RF Venue Diversity Fin Antenna Specs
Packaging Info
Package Weight 1.425 lb
Box Dimensions (LxWxH) 14.4 x 11.35 x 1.95"
RF Venue RG8X Low Loss Coaxial Antenna Cable - 25' Specs
Length 25.0' (7.6 m)
Packaging Info
Package Weight 1.05 lb
Box Dimensions (LxWxH) 14.2 x 13 x 2.55"
