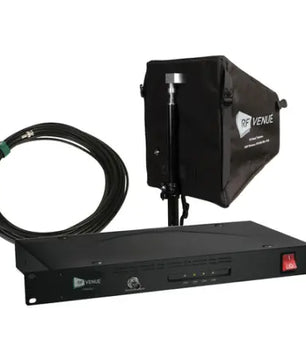

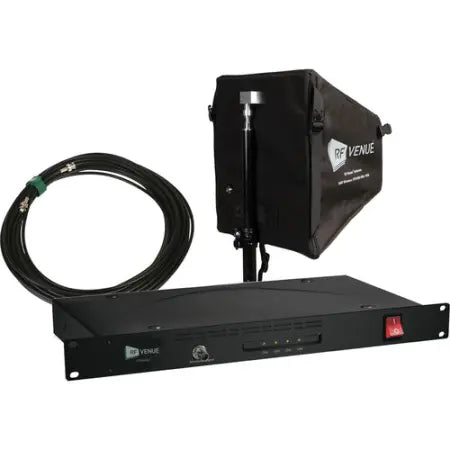

Audio-Technica CP Beam COMBINE4 Package COMB4CPB

The COMBINE4 4-Channel Antenna Combiner with CP Beam Antenna and Cable Bundle from RFvenue is an antenna combiner that was developed for cross-brand flexibility for IEM (In-Ear Monitor) systems. The four-channel Radio Frequency (RF) combiner receives four incoming IEM transmitter RF signals and combines them to a single convenient front-panel mounted output connection. The combiner features a high-quality internal power supply and includes DC and RF jumper cables required for four-channel IEM system operation.

The CP Beam Antenna provides high gain for wireless microphones and IEMs in a lightweight, portable package. Unlike other bulky helical antennas which require heavy flight cases, the CP Beam is quickly deployed and stowed, fitting in a 2RU rack drawer and weighing just 2.5 pounds while delivering 9 dBd of gain.

RF Venue COMBINE4 - 4-Channel Antenna Combiner
The COMBINE4 from RFvenue is an antenna combiner that was developed for cross-brand flexibility for IEM (In-Ear Monitor) systems. The four-channel Radio Frequency (RF) combiner receives four incoming IEM transmitter RF signals and combines them to a single convenient front-panel mounted output connection.

The unit features a high-quality internal power supply and includes DC and RF jumper cables required for four-channel IEM system operation.


UPC: 459225903526
RF Venue CP Beam Antenna
The CP Beam Antenna by RF Venue is a uniquely designed, long-range antenna for wireless microphones and IEM (In Ear Monitoring) systems. Featuring a circularly polarized yet lightweight design, the CP Beam delivers optimal RF performance in a package that folds flat for easy storage and transport. The CP Beam Antenna operates on a wide frequency range of 470 to 698 MHz.

The antenna weighs just 2.5 lb and provides 9 dB of gain making it useful for long-range applications. Widely used on concert tours, it's ideal for outdoor applications. The CP Beam can be connected to any brand of IEM, wireless mic, or UHF intercom.

Key Features:
High-performance directional UHF antenna with a wide frequency range of 470 to 698 MHz
The antenna quickly deployed and stowed, fitting in a 2 RU rack drawer
The 9 dBd of gain makes it a suitable choice for long-range applications
Connects to any brand of IEM, wireless mic, or UHF intercom
Can be used on major concert tours and comms systems

RF Venue RG8X Low Loss Coaxial Antenna Cable - 25'
The RG8X Low Loss Coaxial Antenna Cable - 25' from RFvenue features BNC connectors and offers a cost effective, reliable interconnect.

RF Venue COMBINE4 - 4-Channel Antenna Combiner Specs:
Packaging Info
Package Weight 8.2 lb
Box Dimensions (LxWxH) 22.1 x 12.9 x 4"
RF Venue CP Beam Antenna Specs
Electrical
Operating Frequency 470 to 698 MHz
Bandwidth 228 MHz
Average Return Loss -13.15 dB
Impedance (Ohms) 50 Ohms
Pattern Type Beam
Polarization RHCP
Coverage
Horizontal Axis Beam Width   63°
F/B Ratio      -10 dB
F/S Ratio      -12 dB
Vertical Axis Beam Width   70°
F/B Ratio      -9 dB
F/S Ratio      -12 dB
Squint         < 2 dB
Gain               9 dBd
Physical
Dimensions (L x H) 13.9 x 13.9" / 355 x 355 mm
Weight 2.4 lb / 1.1 kg
Mount Thread Size 1/4-20", 3/8-16", 5/8-27"
Operating Temperature -9.4 to 129.2°F / -23 to 54°C
Color Black
Connectors N Female (BNC Supplied)
Packaging Info
Package Weight 2.75 lb
Box Dimensions (LxWxH) 14 x 14 x 6"
RF Venue RG8X Low Loss Coaxial Antenna Cable - 25' Specs
Physical
Length 25.0' (7.6 m)
Packaging Info
Package Weight 1.05 lb
Box Dimensions (LxWxH) 14.2 x 13 x 2.55"
