Art PS 4x4 Pro USB | 9 Piece Power Distributor & Filter

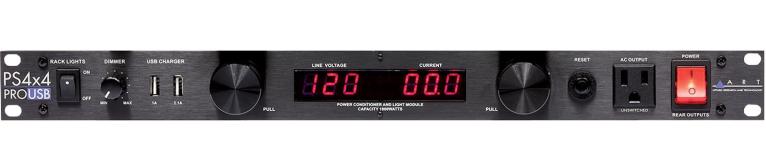

Distribute and filter power for up to nine devices with the ART PS4x4 PRO USB Dual LED Metered Rackmount Power Station. It features eight rear outlets with a front-panel switch, plus an extra unswitched outlet on the front. Two front-panel USB ports let you keep your compatible mobile devices charged, and the reset button allows you to reset the circuit breaker. A gooseneck light can be attached to the back, and two pullout light pipes help you see the front of your rack.

APF (Advanced Power Filtering)
APF is designed to filter out digital and dimmer hash as well as high-frequency noise above the audio range.

Common Mode and Differential Mode Topologies
By using these two topologies in series for the filter design, the PS4X4 PRO USB is engineered to block virtually all of the unwanted noise between the AC line and the ground, as well as both sides of the AC line, to help reduce ground loop problems in your system. Additionally, any signals above 10 kHz are filtered from the line with over 40 dB of attenuation above 100 kHz.

Features:
Surge and spike protection
EMI and RFI filtering
Front-mounted unswitched power outlet

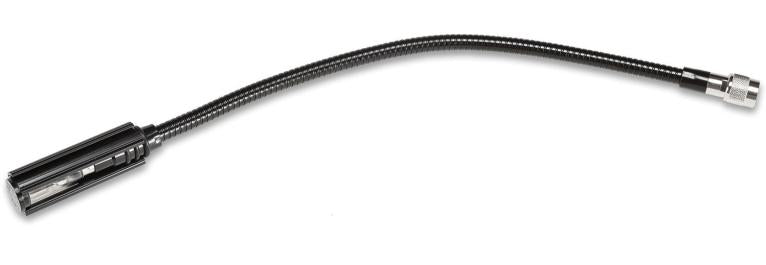

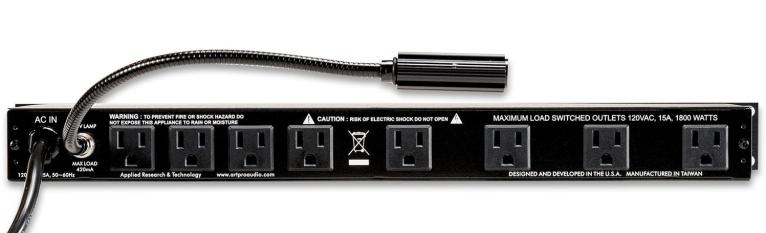

Adjustable, detachable rear-mounted gooseneck light source to illuminate behind the rack
Four rear outlets spaced 1.25" apart to accommodate large power plugs
Pullout light pipes with AutoOff and Dimmer
Front-mounted circuit breaker reset switch
LED digital readouts to monitor input voltage and load current
Meter preview momentary rocker switch

Specifications:
Connections

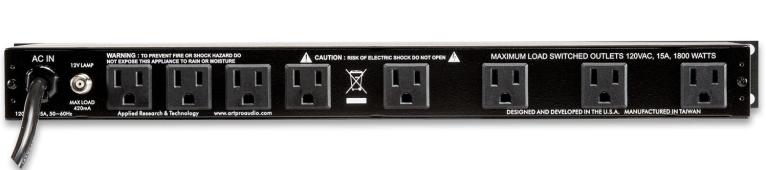

Outlets 8 x NEMA 5-15R (Rear Panel)
1 x NEMA 5-15R (Front Panel, Unswitched)
USB Ports 2 x USB Type-A
Lamp Connectors 1 x BNC (Rear Panel)
Electrical
AC Input Power 120 VAC, 50 / 60 Hz
Load Capacity 1800 W
USB Output 5 V, 2.1 A
5 V, 1 A
Lamp Power 12 VDC at 420 mA (Max)
Protection & Conditioning
Circuit Breaker Yes, at 15 A
Physical
Rackmount Size 1 RU
Material of Construction Steel
Dimensions 19 x 6.5 x 1.75" / 48.2 x 16.5 x 4.4 cm
Weight 6.6 lb / 3 kg
