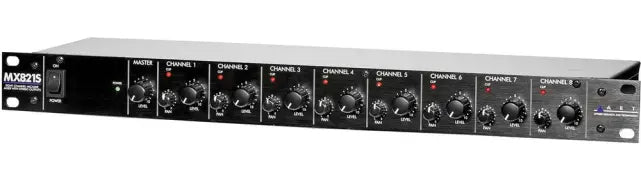

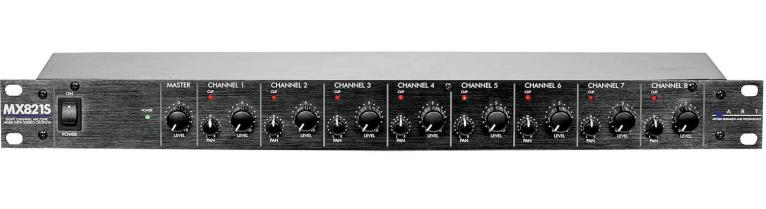

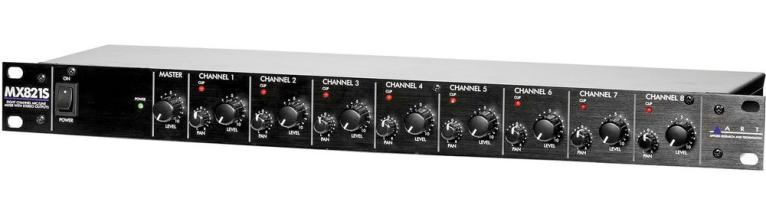

The ART MX821S - Eight-Channel Mic/Line Mixer with Stereo Outputs is a 1RU steel chassis mixer with internal power supply. The unit provides eight selectable balanced XLR microphone inputs with optional +48V low noise phantom power or eight unbalanced 1/4" TS line inputs. Each channel has both an independent level and pan control for placing the channel within the stereo image.

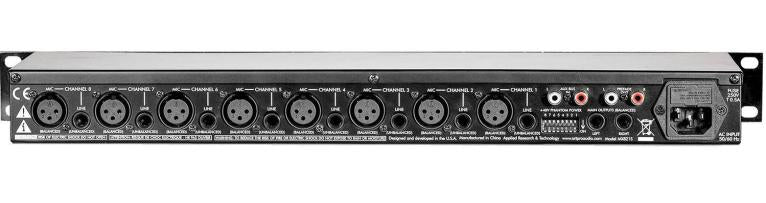

For outputs the unit features left and right 1/4" TRS outputs. Additionally each line input jack can be individually converted to a direct line output by means of an internal jumper system within the device. The unit's prefade output jacks and auxiliary bus input jacks also allow multiple units to be connected together to expand the system's I/O. The unit is suitable for a wide range of applications including stage, studio, and permanent installs such as for conference rooms, corporate boardrooms, churches, restaurants, small clubs, health clubs and more.

Features:
Eight Inputs with Level and Pan Controls
Pan Controls for Stereo Imaging
Mic XLR or Unbalanced 1/4" TS inputs
Optional +48V Phantom on Each Mic Input
Balanced 1/4" TRS Outs with Master Level
Daisy Chain Multiple Units with AUX Bus
Line Inputs to Outputs via Jumpers
1RU Rack-Mount Steel Chassis with PSU
For Stage, Studio, and Installations

Specifications:
Input Connections 8x Balanced XLR-3F
8x 1/4" Unbalanced TS line
2x (Left and Right) Unbalanced AUX RCA
Outputs 2x (Left and Right) Balanced 1/4" TRS
2x (Left and Right) Unbalanced RCA
Input Impedance Mic: 2 kΩ
Line: 20 kΩ
Aux Bus In: 51 kΩ
Output Impedance Main Out: 200 Ω
Prefade Out: 100 Ω
Frequency Response 20 to 20,000 Hz (+0, -1 dB)
THD <0.01% at 1,000 Hz
Phase Response All connections are phase coherent
SNR > 99 dB typical (Ref 0 dBu)
CMRR > 43 dB typical
Maximum Input Level Mic: -4 dBu
Line: +22 dBu
Maximum Output Level Balanced: +24 dBu
Unbalanced: +18 dBu
Maximum Gain Mic: 54 dB
Line: 29 dB
Phantom Power Switch selectable, +48 VDC (regulated and filtered)
7 mA current limiting per chanel
Power Requirements USA: 95 to 120 VAC, 50-60 Hz, < 15 W
Dimensions 1.75 x 19.0 x 6.00" (4.5 x 48.3 x 15.2 cm)
Weight 6.3 lb (2.9 kg)
