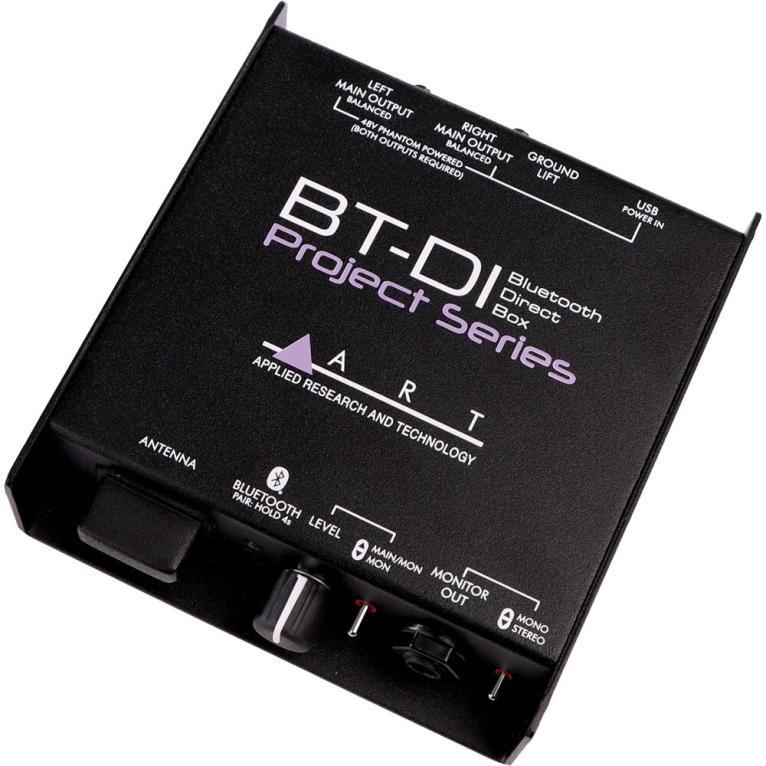

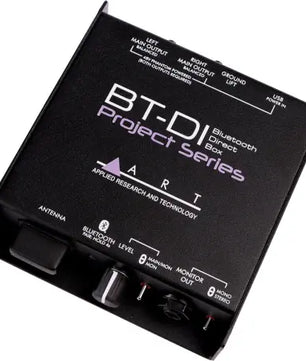

Art BT-DI | Bluetooth Direct Box

Stream audio from any Bluetooth-capable mobile device or computer to your mixer, PA, or recording system with the BT-DI Project Series Bluetooth Direct Box from ART. Particularly effective in live stage applications where there may be great distances between audio sources and their targets, this compact and rugged Bluetooth DAC is engineered for maximum flexibility with minimal complexity or hassle.

The BT-DI comes with robust Bluetooth support and a long range of operation, aided by a built-in antenna. The unit can be powered by either USB or via two channels of phantom power over the noise-free, transformer-isolated, balanced XLR outputs. A main output level control is provided and can be bypassed for a fixed XLR output level, and an extra 1/4" TRS output is also provided, which can be switched between stereo and mono to feed headphones or line-level inputs.

Flexible Bluetooth DAC
The BT-DI is designed to be an easy-to-use Bluetooth interface for your mixers, line-level amplifiers, or computer-based DAWs. With an extremely long range, the BT-DI is versatile enough for numerous applications, such as reducing long cable runs during live performances.

Dual Power Options
The BT-DI has two distinct methods of power input. First, the unit can be powered with simple USB bus power, using a single USB Type-B port for 5 VDC power (this port does not transmit data). The DI box also comes with a convenient ground switch for avoiding any ground noise from computers when powered over USB. An alternative option allows the BT-DI to be powered by two +48V phantom power lines through the XLR output jacks, which can typically be supplied on microphone input channels on a mixer. This method can be useful when transmitting audio directly to a mixing console.

FEATURES:

External antenna for long-range operation, up to 100' line of sight
Bluetooth 5.0 receiver
Simple Bluetooth pairing switch with LED indicator
Dedicated Bluetooth audio level control
Balanced, low-impedance audio path for audio sources
Works with mixers, amplifiers, computers, tablets, and cell phones

SPECIFICATIONS:

General
Compatibility Not Specified by Manufacturer
Inputs / Outputs

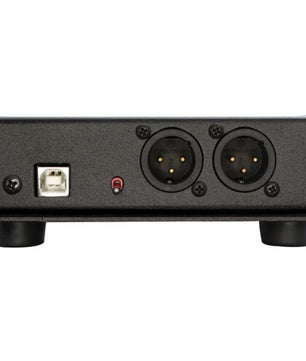

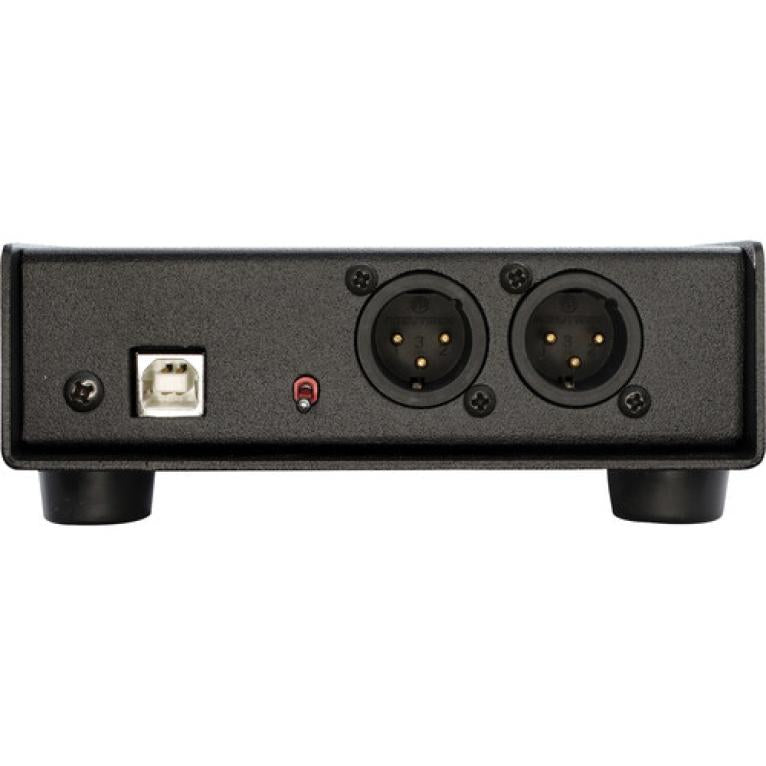

USB I/O 1 x USB-B (Power Only) Female Input
Audio I/O 2 x XLR 3-Pin Mic Output

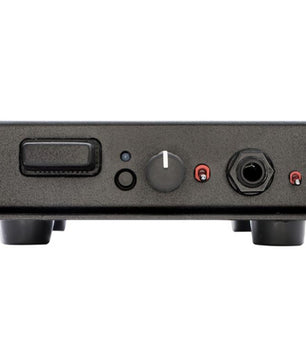

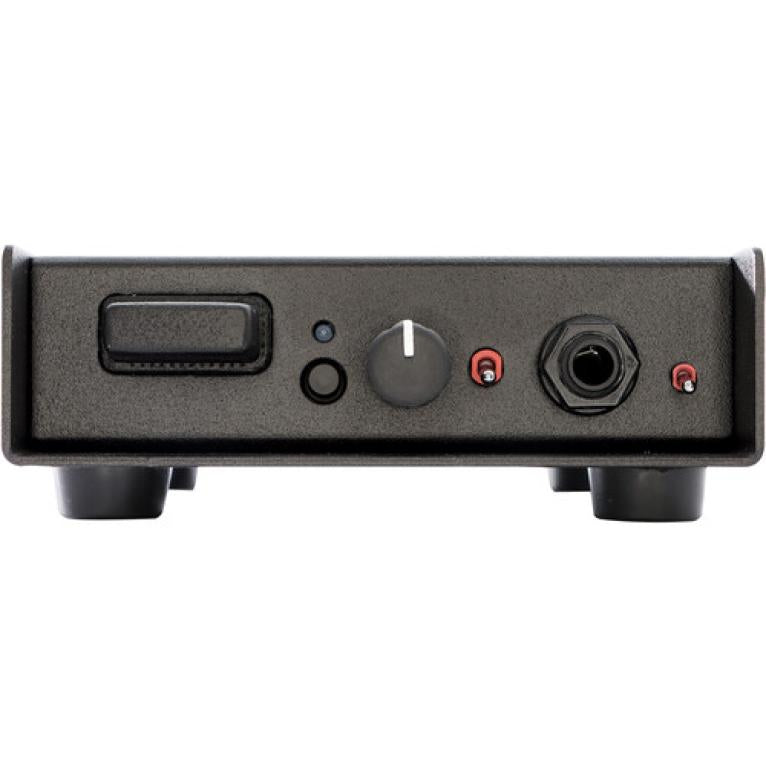

1 x 1/4" TRS Headphone Output
Wireless
Bluetooth 5.0
Power
Power Source USB, Phantom Power
DC Input Power 5 VDC at 8 A
Operating Current 80 mA
Physical
Color Black
Material of Construction Steel
Cable Length Not Specified by Manufacturer
Dimensions 5.5 x 5 x 1.4" / 14 x 12.6 x 3.6 cm
Weight 2 lb / 910 g
Packaging Info
Package Weight 2.285 lb
Box Dimensions (LxWxH) 9.4 x 6.5 x 3.7"
